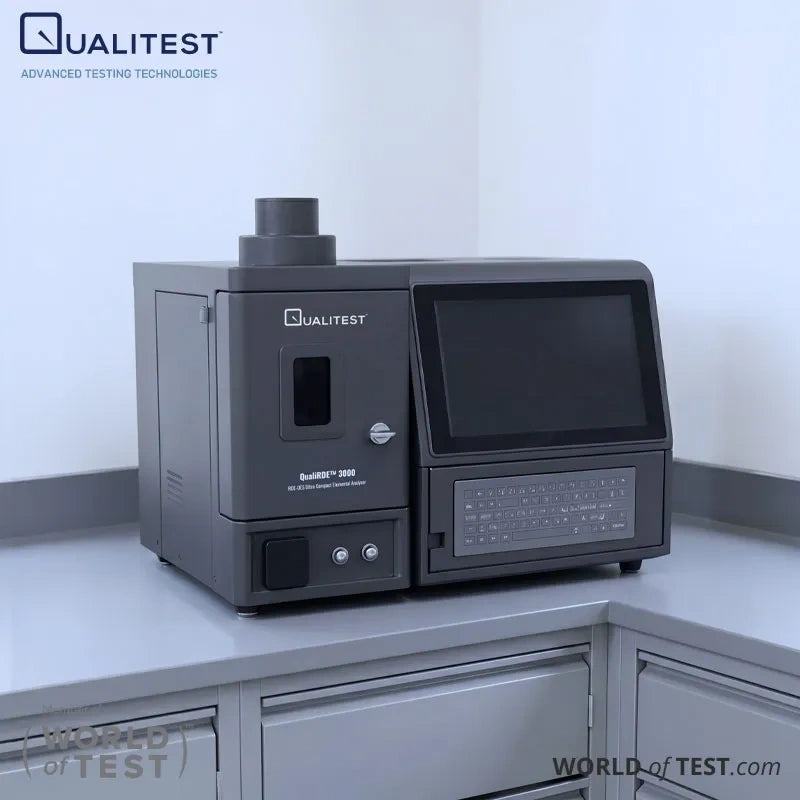

RDE-OES Ultra Compact Elemental Analyzer – QualiRDE™ 3000

The QualiRDE™ 3000 RDE-OES Ultra Compact Elemental Analyzer delivers rapid elemental analysis for oils, fuels, and industrial fluids used in maintenance programs and laboratory testing. Designed for direct sample analysis, it supports both new and in-service lubricants, hydraulic oils, fuels, greases, antifreeze, water-based fluids, and steam turbine condensate. The system helps identify wear metals, contaminants, and additive elements quickly, supporting condition monitoring and reliability initiatives.

Built around a graphite rotating disc electrode excitation source, the analyzer combines a Paschen-Runge optical system with a high-precision CCD detector to provide accurate multi-element measurements. With analysis times of 30 seconds or less, laboratories can generate actionable data without lengthy preparation procedures.

The QualiRDE™ 3000 is well suited for industrial, transportation, marine, aviation, mining, power generation, military, and commercial oil analysis laboratories. Its compact footprint supports facilities seeking high-performance elemental testing while minimizing space requirements. Direct sample testing, low sample volume requirements, operation without reagent gases, and advanced software for trending and predictive maintenance make it a practical solution for routine fluid monitoring.

As an RDE-OES elemental analyzer for oil condition monitoring, the system utilizes atomic emission spectroscopy and a graphite rotating disc electrode to determine elemental concentrations in fluid samples. Key components include a high-energy arc excitation power supply, rotating disc electrode assembly, Paschen-Runge spectrometer, high-precision CCD detector, electronic control system, and computer-based analysis software.

The analyzer supports a broad range of applications, including new and used lubricating oils, hydraulic fluids, gasoline, diesel fuel, heavy fuel oils, lubricating greases, antifreeze, industrial water, domestic water, and steam turbine condensate. Its single-station design, integrated grinder, optional printer configuration, and unified control platform make it an excellent choice for laboratories requiring fast elemental screening and dependable analytical performance in a space-efficient system.

RDE-OES Ultra Compact Elemental Analyzer - QualiRDE™ 3000 Applications

Used Oil Analysis

The QualiRDE™ 3000 is designed for used oil analysis programs that track wear metals, contaminants, and additive elements in lubricants and hydraulic fluids. Its rapid elemental testing capabilities help maintenance teams evaluate lubricant condition, identify abnormal equipment wear, and support informed maintenance decisions. ASTM D6595 outlines the determination of wear metals and contaminants in used lubricating oils and hydraulic fluids through rotating disc electrode atomic emission spectrometry.

Hydraulic Fluid Monitoring

The analyzer provides fast elemental screening of hydraulic fluids, helping identify early signs of component wear, contamination, and fluid degradation. This enables maintenance personnel to detect potential system issues sooner, reduce unplanned downtime, and improve equipment reliability through condition-based monitoring.

Fuel and Fluid Condition Screening

The QualiRDE™ 3000 supports elemental analysis of gasoline, diesel fuel, heavy fuel oil, and other related fluids. Its analytical capabilities help laboratories detect contaminants and corrosion-related elements that may affect fuel quality and system performance. ASTM D6728 defines procedures for measuring contaminants and corrosion-related materials in gas turbine and diesel engine fuels using rotating disc electrode atomic emission spectroscopy.

Industrial Reliability and Predictive Maintenance

With simultaneous multi-element analysis of up to 24 elements, sub-ppm detection performance, and analysis times of less than 30 seconds, the QualiRDE™ 3000 is a valuable tool for reliability-focused maintenance programs. Industries including aviation, marine, mining, steel production, transportation, energy, and commercial testing laboratories can benefit from fast elemental data for equipment health assessment. Integrated software supports trend monitoring, condition evaluation, and predictive maintenance strategies that help optimize asset performance and maintenance scheduling.

Standards

The QualiRDE™ 3000 RDE-OES Ultra Compact Elemental Analyzer is designed to support elemental analysis workflows aligned with widely recognized industry standards for oil, hydraulic fluid, and fuel testing.

  • ASTM D6595 – Standard Test Method for the Determination of Wear Metals, Contaminants, and Additive Elements in Used Lubricating Oils and Hydraulic Fluids by Rotating Disc Electrode Atomic Emission Spectrometry. This standard is commonly referenced for machinery condition monitoring, lubricant health assessment, and maintenance-related fluid analysis.

  • ASTM D6728 – Standard Test Method for the Determination of Contaminants and Corrosion-Related Elements in Gas Turbine and Diesel Engine Fuels by Rotating Disc Electrode Atomic Emission Spectrometry. This method supports fuel quality evaluation and contamination monitoring in industrial and transportation applications.

RDE-OES Ultra Compact Elemental Analyzer - QualiRDE™ 3000 Features

RDE-OES Ultra Compact Elemental Analyzer

  • Simultaneous measurement of up to 24 elements in a single test, supporting the analysis of wear metals, contaminants, and additive elements.

  • Measurement ranges of 0–1000 ppm for 19 elements and 0–6000 ppm for 5 elements, providing broad elemental coverage.

  • Patented digital arc excitation source with solid-state technology for consistent and stable excitation performance.

  • High-resolution CCD optical detection system featuring a 3,648-pixel detector architecture for accurate elemental measurements.

  • Advanced dual-optical configuration combining Rowland circle optics and a C-T optical path design.

  • Dual fiber-optic signal transmission system for efficient optical signal processing.

  • Direct sample analysis without the need for argon, oxygen, or chemical solvents.

  • 400 mm focal length optical system designed for enhanced spectral resolution.

  • Wide spectral coverage from 200–800 nm for multi-element analysis.

  • Precision optical temperature control maintained at 38°C ± 0.1°C for stable analytical performance.

  • Rapid analysis cycle with test results available in 30 seconds or less.

  • Detection capability below 1 ppm for trace elemental monitoring.

  • Low sample volume requirement of approximately 2 mL or less, reducing sample consumption.

  • Integrated graphite electrode grinder for streamlined laboratory operation.

  • Printer compatibility for convenient reporting and documentation.

  • Built-in industrial control computer for standalone operation and simplified workflow management.

  • Specialized exhaust design that helps minimize cross-contamination between samples.

  • Windows-based spectral analysis software for instrument control, data storage, reporting, and qualitative and quantitative elemental analysis.

  • Advanced software tools for data management, trend monitoring, predictive analysis, and equipment condition assessment.

  • Compact desktop configuration with an integrated computer system and motorized grinder, supporting easy installation and mobility within laboratory environments.

Theory and Method

RDE-OES (Rotating Disc Electrode Optical Emission Spectroscopy) is an elemental analysis technique that determines the concentration of metallic elements in oils and other industrial fluids by measuring the characteristic light emitted from excited atoms. The method is widely used for rapid multi-element analysis of lubricants, hydraulic fluids, fuels, coolants, and related samples in maintenance and laboratory environments.

The QualiRDE™ 3000 RDE-OES Ultra Compact Elemental Analyzer utilizes a rotating graphite disc electrode and high-energy arc excitation to generate atomic emission from the sample. The emitted light is separated through a Paschen-Runge optical system and captured by a high-resolution CCD detector, allowing simultaneous measurement of multiple elements. This approach enables the identification and quantification of wear metals, contaminants, and additive elements directly from the sample cup without the need for reagent gases or chemical pretreatment.

The analyzer integrates dual optical configurations, dual fiber-optic signal transmission, and precision optical temperature stabilization to support consistent analytical performance. Combined with advanced spectral analysis software, data management tools, trend monitoring, and predictive analysis capabilities, the system provides reliable elemental data for fluid condition assessment, equipment health monitoring, and maintenance planning.

RDE-OES Ultra Compact Elemental Analyzer - QualiRDE™ 3000 Technical Specification

Parameter QualiRDE™ 3000
Model QualiRDE™ 3000
Analytical Method RDE-OES / Rotating Disc Electrode Optical Emission Spectrometer
Applicable Standards ASTM D6595, ASTM D6728
Detector CCD Detector
Optical Structure Paschen-Runge spectrometer
Optical Focal Length 400 mm
Spectral Range 200–800 nm
Test Time Not more than 30 seconds
Detection Limit Less than 1 ppm
Number of Elements 24 elements
Detection Range 0–1000 ppm for 19 elements; 0–6000 ppm for 5 elements
Sample Volume Less than / about 2 mL
Optical Temperature Control 38°C ± 0.1°C
Dimensions 550 × 330 × 430 mm
Weight Approximately 35 kg
Built-in Components Graphite electrode grinder, industrial control computer, printer support
Software Windows-based spectral analysis software with data management, trend analysis, and prediction functions

Standard Element Configuration

Range Elements
0–1000 ppm Al, B, Cd, Cr, Cu, Pb, Mn, Mo, Ni, Si, Ag, Na, Sn, Ti, V, Fe, K, Li, Sb
0–6000 ppm Ba, Ca, Mg, P, Zn
