Video Measuring Projector
Video Measuring Projector – QualiVMP™ Series
The QualiVMP™ Series Video Measuring Projector integrates optical projection with digital imaging to deliver fast, reliable dimensional inspection. Designed for production quality control, incoming inspection, and laboratory metrology, this range focuses on clear edge visibility, stable illumination, and consistent measurement outcomes. The lineup includes compact benchtop systems as well as advanced platforms suited for larger components and more demanding inspection tasks.
What is a Video Measuring Projector?
A Video Measuring Projector enlarges a component onto a screen or monitor, allowing accurate, non-contact measurement of features. Common checks include lengths, diameters, radii, angles, hole positions, and profile geometry. With camera-based visualization and software-assisted tools, inspection becomes faster than traditional manual techniques while maintaining consistency across operators and production shifts.
QualiVMP™ Series Range

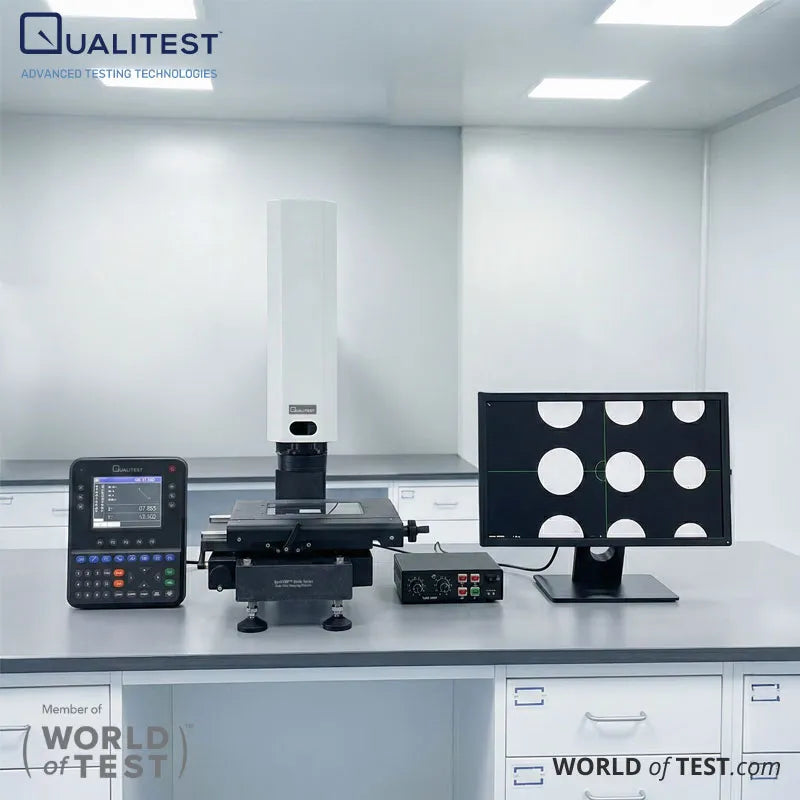

QualiVMP™ Basic Series
An entry-level solution for standard 2D inspection needs. The Basic Series supports routine measurement tasks with simple operation, making it suitable for workshops and entry-level quality control setups.
Best suited for:
- Daily inspection of machined and stamped parts
- Basic profile measurement and pass/fail checks
- Cost-conscious quality control environments

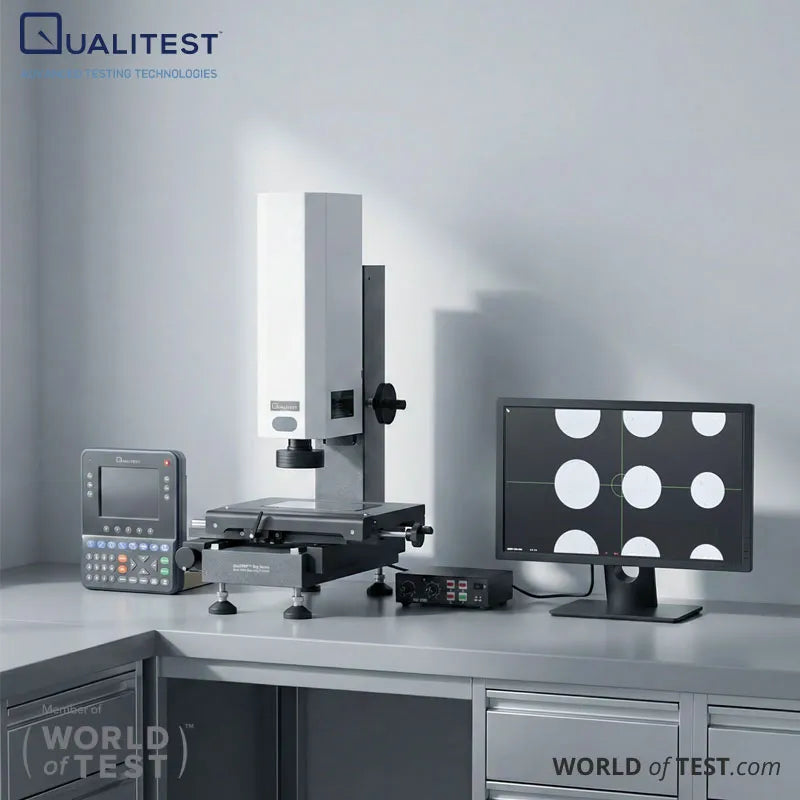

QualiVMP™ Reg Series
A versatile option for teams handling varied inspection tasks. The Reg Series supports multiple part types with ease while keeping workflows efficient and easy to manage.
Best suited for:
- Inspection of mixed components with frequent changeovers
- Regular reporting and traceability requirements
- Consistent results across different operators

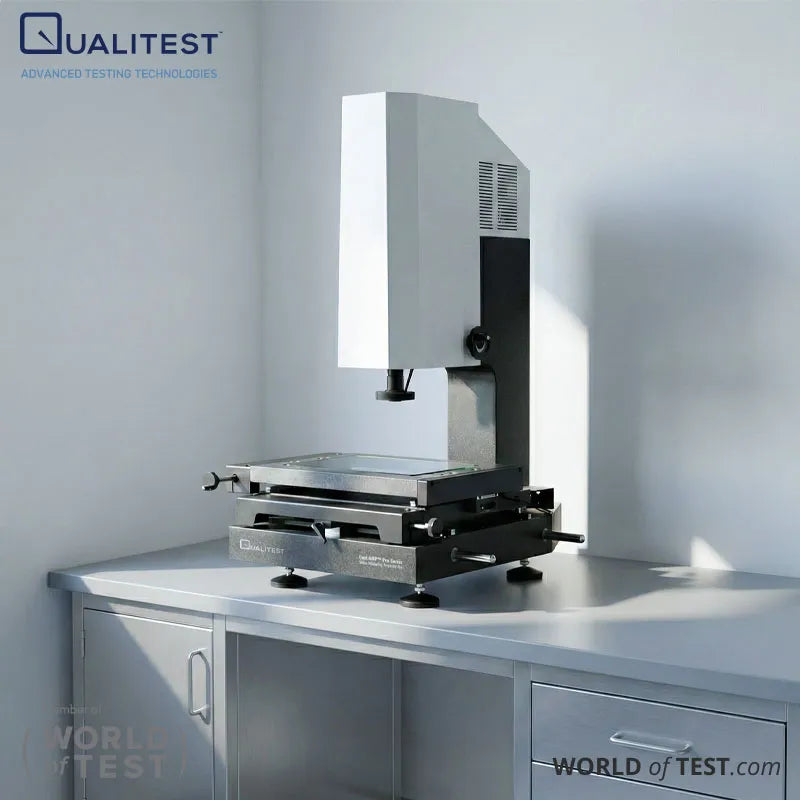

QualiVMP™ Pro Series
Developed for higher inspection throughput and improved process control. The Pro Series handles more detailed measurement routines, making it suitable for production-focused environments.
Best suited for:
- High-volume production inspection
- Repeatable measurement routines with reduced variation
- Multi-feature 2D inspection with stable imaging
QualiVMP™ Adv Series
Built for advanced measurement applications requiring higher precision and flexibility. This series is ideal for complex inspection tasks and tighter tolerance requirements.
Best suited for:
- Precision-engineered components
- Detailed profile and edge analysis
- Workflows that may expand with advanced features like autofocus or probing
Common Applications
- Machined components: holes, slots, chamfers, and radii
- Stamped and formed parts: profile and edge verification
- Injection molded parts: dimensional checks for fit and function
- Electronics and connectors: small feature inspection
- Tooling and fixtures: validation of critical dimensions
Key Benefits of QualiVMP™ Series
- Non-contact measurement suitable for delicate or finished surfaces
- High-clarity digital imaging for accurate edge detection
- Consistent lighting for reliable contrast across materials
- Repeatable inspection processes for uniform results across shifts
- Scalable solutions to match growing inspection requirements
How to Choose the Right Series
- Basic Series: Ideal for simple, routine measurement tasks with a focus on affordability
- Reg Series: Suitable for varied inspection needs and frequent part changes
- Pro Series: Designed for higher throughput and consistent production inspection
- Adv Series: Best for precision applications and complex measurement requirements
