Automatic Vision Measuring Machine

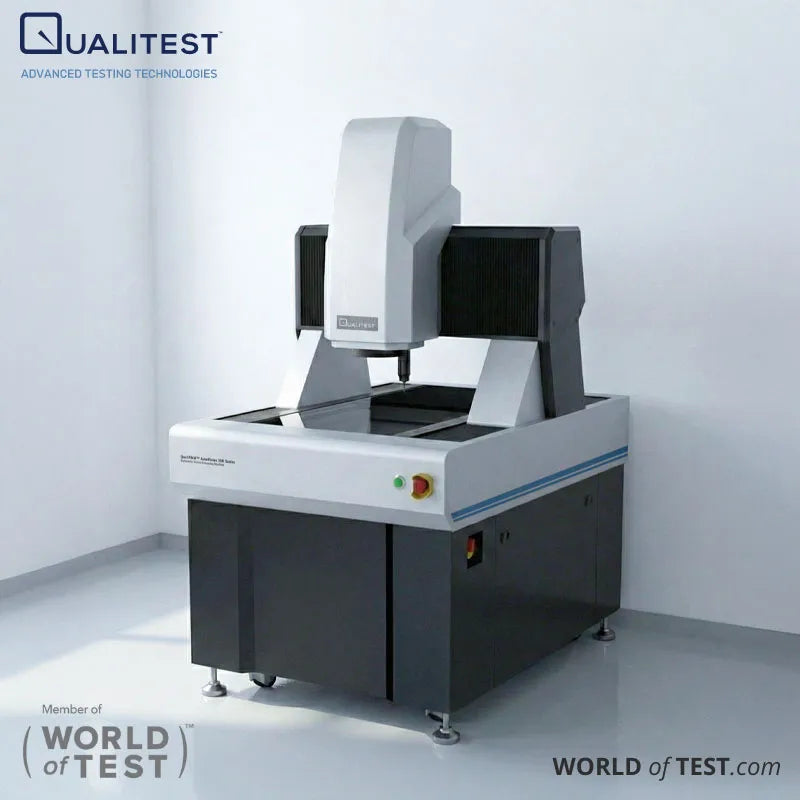

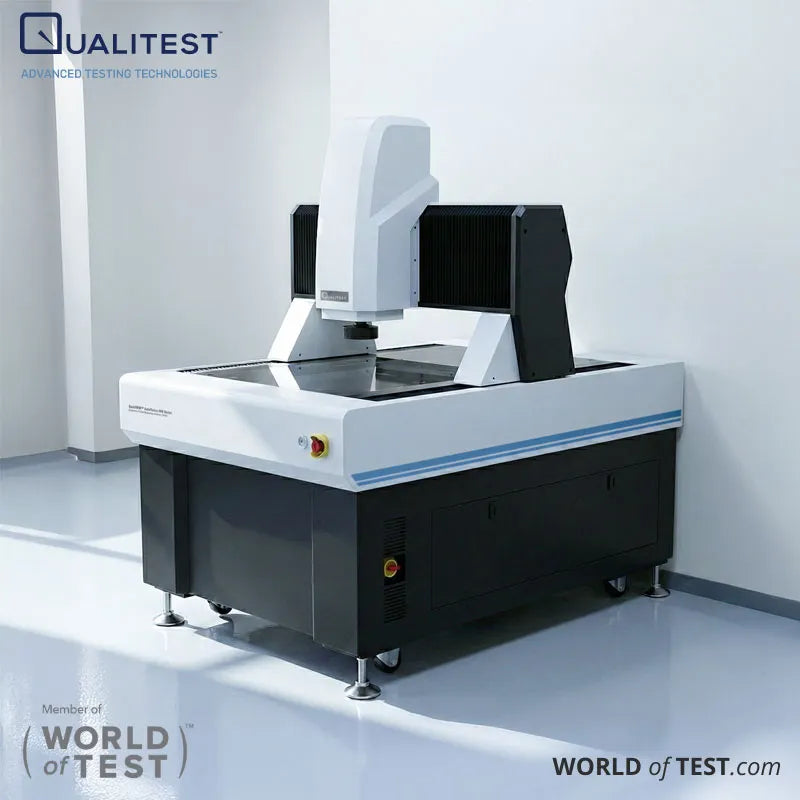

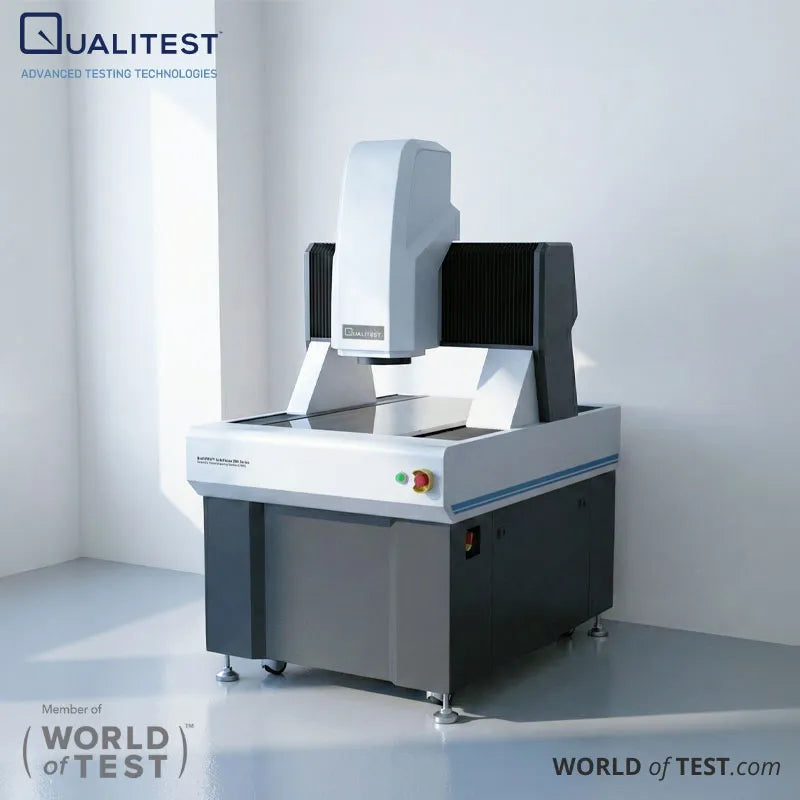

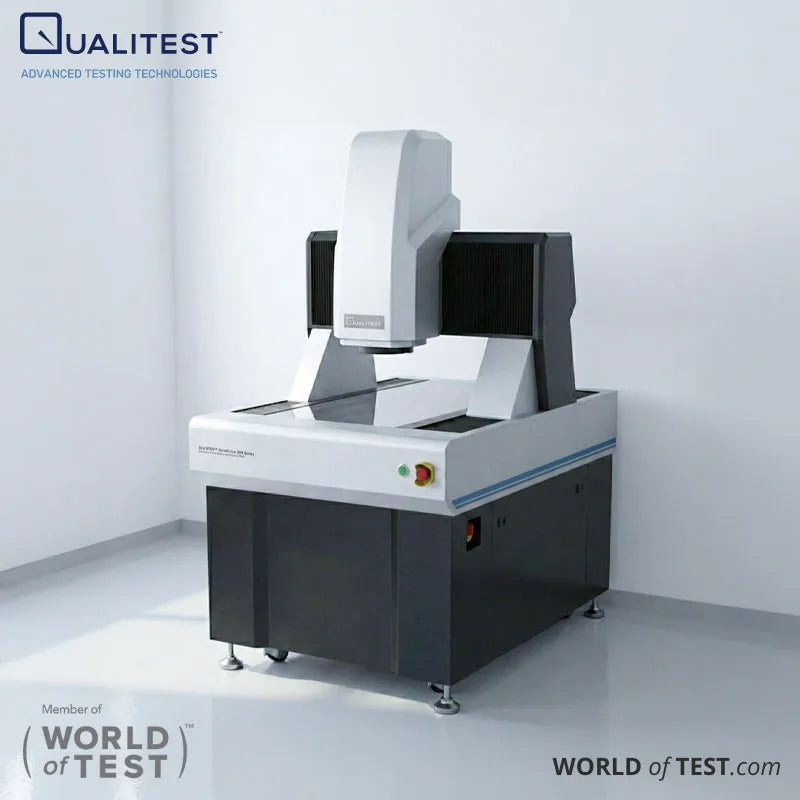

Automatic Vision Measuring Machine (VMM) – QualiVMM™ AV Series
Automatic Vision Measuring Machine (VMM) systems provide fast, accurate, and consistent part inspection through precision optics, controlled motion, and advanced measurement software. The QualiVMM™ AV series features a moving-bridge platform built for automated 2.5D inspection, with optional probing and laser sensing for enhanced versatility. This category page covers what a VMM is, the features of the AV series, and why it is ideal for modern quality control and R&D operations.
What Is a VMM?
An Automatic Vision Measuring Machine (VMM) is a non-contact measurement system that captures part features using a camera, optics, and specialized lighting. It measures dimensions such as lengths, diameters, radii, angles, hole patterns, and feature positions with repeatable accuracy. Many VMMs include CNC motion, allowing the machine to move to each feature automatically while the part remains fixed. This ensures consistent results across operators and reduces variability in measurement. VMMs are particularly effective for inspecting small or delicate parts faster than manual tools.
Key Features of QualiVMM™ AV Series
The QualiVMM™ AV series is engineered with stable mechanics, programmable optics, and automation-ready software. It supports optical measurement as standard and can be customized for different inspection requirements. Key features include:
Moving-bridge structure with fixed workpiece
Provides stability during extended programs and multi-feature routines.
CNC automation with closed-loop control
Executes repeatable measurement paths for batch inspections and reliable reporting.
High-resolution linear scale feedback and precision motion components
Ensures accurate positioning across the entire measuring volume.
HD color imaging with motorized zoom optics
Enhances visibility of features and allows fast magnification changes during inspection.
Programmable LED lighting for surface and contour conditions
Maintains optimal contrast across varying materials and finishes.
Optional multi-sensor configurations
Touch probing and laser sensing can be added to capture features not easily measured optically.
Why Choose QualiVMM™ AV Series
The QualiVMM™ AV series is ideal for teams seeking consistent inspection results, faster throughput, and simplified standardization across shifts. Program-based measurement reduces variation from manual processes, ensuring the same part is measured consistently every time. Optical measurement enables rapid checks on edges, profiles, and hole patterns without contacting the part, while optional sensors expand coverage for height features and mixed geometries.
This series is also well-suited for shops and laboratories handling diverse part types. A consistent platform across multiple sizes simplifies training and keeps inspection workflows uniform. Flexible configuration options allow the system to match actual measurement needs rather than requiring a single setup for all jobs.
