Advanced Video Measuring Projector
Advanced Video Measuring Projector – QualiVMP™ Adv Series
The QualiVMP™ Adv Series Video Measuring Projector delivers fast, reliable dimensional inspection using live magnified imaging and precision software measurement tools. Designed for production QC and inspection labs, it ensures accurate results, clear imaging, and expandable functionality to meet growing measurement needs. Each model offers a tailored measuring envelope to match part size and throughput requirements, combining a stable granite structure, programmable LED lighting, and iMeasuring software for consistent, day-to-day performance.
QualiVMP™ Adv Series Models
The series includes five size options:

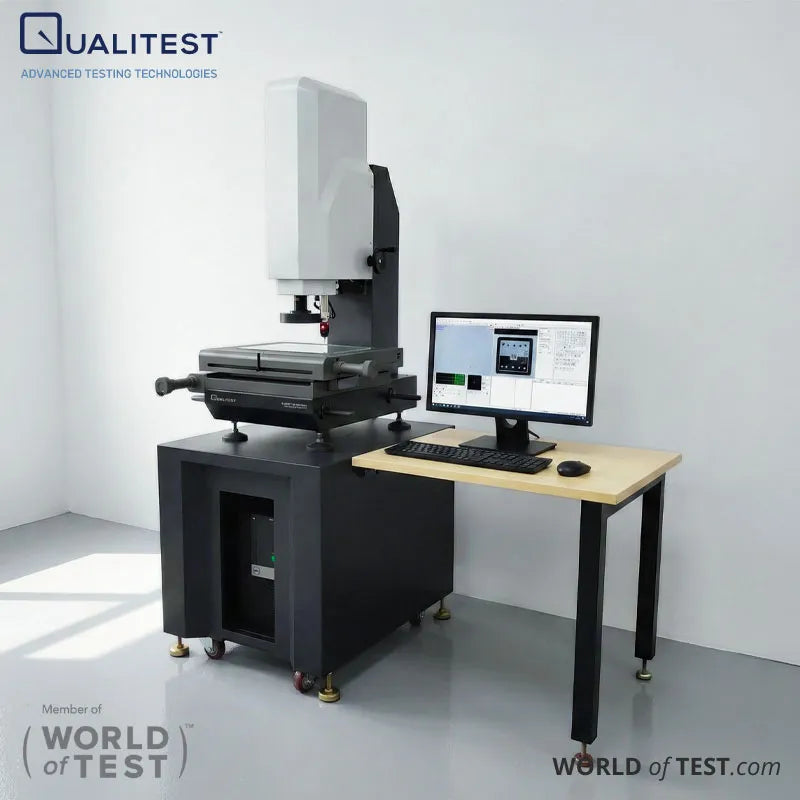

- QualiVMP™ Adv 2000 Series – Ideal for smaller parts and routine QC tasks.

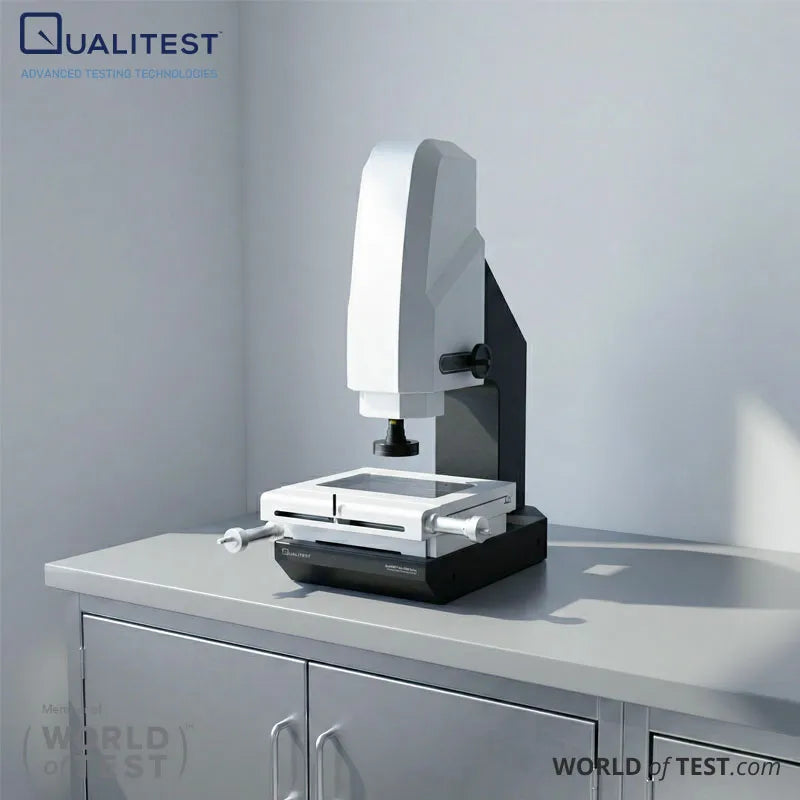

- QualiVMP™ Adv 2500 Series – Provides additional X/Y travel for medium-sized components.

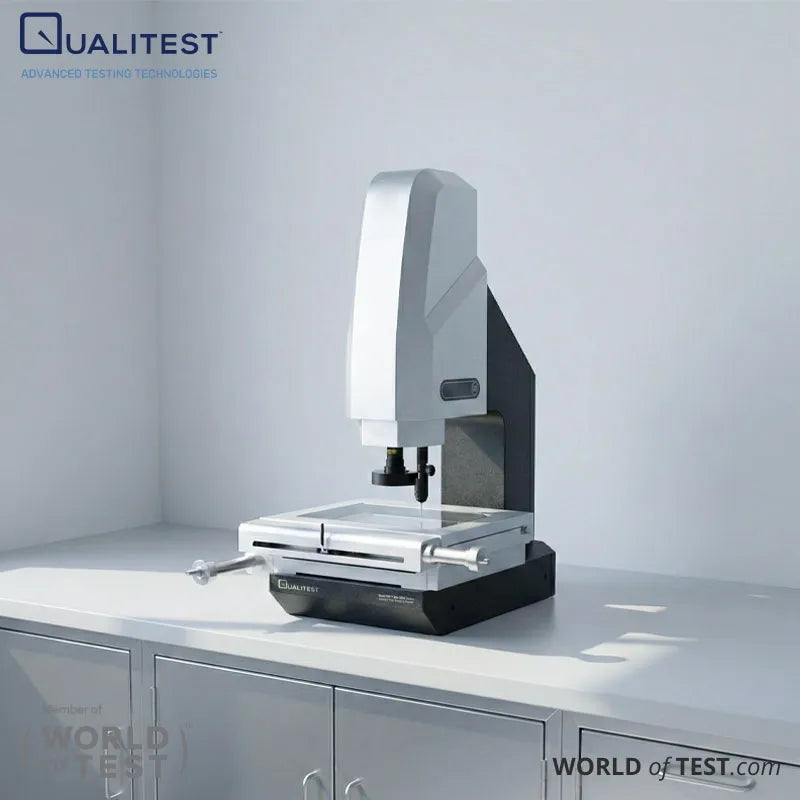

- QualiVMP™ Adv 3000 Series – A versatile option suitable for general-purpose inspection across industries.

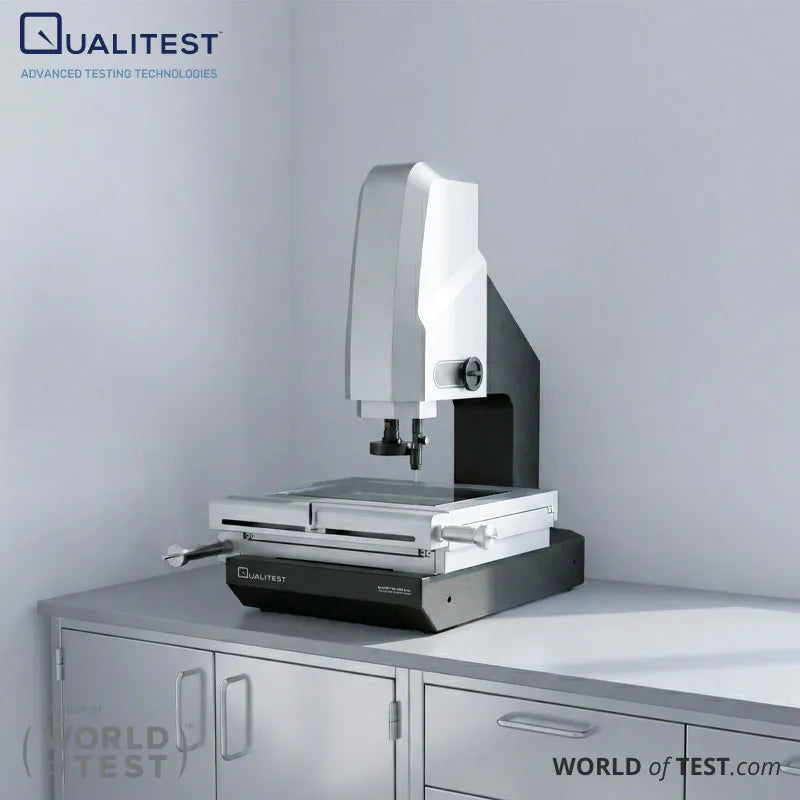

- QualiVMP™ Adv 4000 Series – Supports larger parts, multi-feature layouts, and higher-volume inspections.

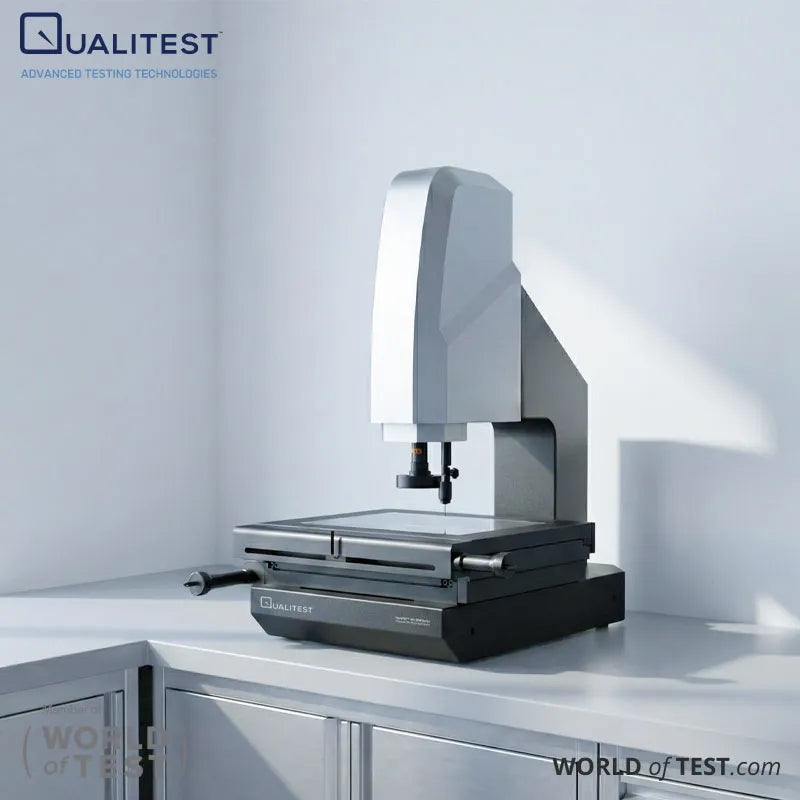

- QualiVMP™ Adv 5000 Series – Offers the largest travel range for substantial components and extensive QC coverage.
How a Video Measuring Projector Works
This system captures a precise image of a part, identifies edges, and converts them into X-Y-Z coordinates. Compared to manual comparators, this approach reduces operator variation, particularly on parts with complex features. Advanced software tools allow construction of lines, circles, angles, and other geometric elements from measurement points, simplifying inspection of machined, stamped, molded, and assembled components. Measurement results can be documented for quality control and outgoing inspection purposes.
Typical Measuring Range by Series
| Series | Typical X/Y Travel (mm) | Typical Z Travel (mm) | Best Fit |
|---|---|---|---|
| QualiVMP™ Adv 2000 Series | 200 × 100 | 200 | Small components, fast checks |
| QualiVMP™ Adv 2500 Series | 250 × 150 | 200 | Medium parts, more fixture room |
| QualiVMP™ Adv 3000 Series | 300 × 200 | 200 | General-purpose QC and inspection |
| QualiVMP™ Adv 4000 Series | 400 × 300 | 200 | Larger parts, higher feature count |
| QualiVMP™ Adv 5000 Series | 500 × 400 | 200 | Large parts, maximum coverage |
Travel ranges can vary by configuration and options, so matching the envelope to your largest part and fixturing plan is key.
Key Features – QualiVMP™ Adv Series
Stable Granite Structure – Rigid granite base and column provide consistent measurement performance for daily QC operations.
High-Definition Imaging – Zoom optics combined with a digital color camera deliver sharp, low-distortion images for precise inspections.
Software-Controlled LED Lighting – Flexible illumination supports both surface and contour inspection needs.
Multi-Zone Illumination – Adjustable contrast settings handle reflective, matte, or mixed-finish parts efficiently.
iMeasuring Software – Streamlines measurement routines, feature construction, and reporting for traceable QC records.
Upgradeable Platform – Expand capabilities over time without replacing the core system.
Configuration Options
The QualiVMP™ Adv Series can be tailored to your team’s current measurement requirements and future needs:
- 2.5D Vision Measurement – Vision-based inspection for X/Y features and standard QC tasks.
- 3D Contact + Vision – Add a touch probe for contact measurements on selected 3D features.
- Semi-Automatic Measurement with Autofocus – Autofocus ensures repeatability for Z-axis sensitive features.
- Probe + Autofocus Combination – Offers maximum flexibility for teams handling mixed workflows.
Applications
- Machined Components – Inspect holes, slots, radii, angles, and positions with fast optical measurement.
- Stamped & Formed Parts – Verify profiles, edges, and feature locations without heavy contact.
- Injection-Molded Parts – Measure critical dimensions, parting lines, and feature alignment for production QC.
- Electronics & Precision Assemblies – Inspect small geometries and dense feature layouts efficiently.
- Tooling, Jigs & Fixtures – Confirm fixture dimensions and repeatability before production release.
Why Choose QualiVMP™ Adv Series
The Adv Series is ideal for teams that need consistent measurement speed and repeatability across shifts. Its granite construction and software-controlled LED lighting maintain stable inspection routines. With a range of model sizes, the series adapts to both compact workpieces and large-travel applications. Flexible upgrade options—from vision-only to probe and autofocus workflows—allow standardization across multiple QC stations and facilities, ensuring reliable inspection results while optimizing productivity.
