Accurate Sensor Automatic Vision Measuring Machine Category
Accurate Sensor Automatic Vision Measuring Machine – QualiVMM™ AS Series
The QualiVMM™ AS Series focuses on reliable, non-contact inspection with consistent results.
This Vision Measuring Machine category includes automated platforms combining CNC motion control, stable construction, camera with zoom optics, programmable lighting, and iMeasuring software workflows. Each series is designed for a specific measuring range, letting you match system capacity to part size and throughput without oversizing travel.
The lineup features the QualiVMM™ AS 300 Series, AS 400 Series, and AS 500 Series for 300×200, 400×300, and 500×400 class applications.
What the QualiVMM™ AS Series Offers
These Vision Measuring Machines support fast 2D measurement and expanded 3D workflows when sensors are added. CNC XYZ motion, high-resolution imaging, and lighting control ensure edges are captured consistently across operators and shifts.
The system supports optical-only measurement and offers upgrade paths for contact probing and confocal inspection depending on the configuration. This versatility makes the AS Series ideal for QC labs and production inspection where speed, repeatability, and documentation are important.
Product Lineup
QualiVMM™ AS 300 Series

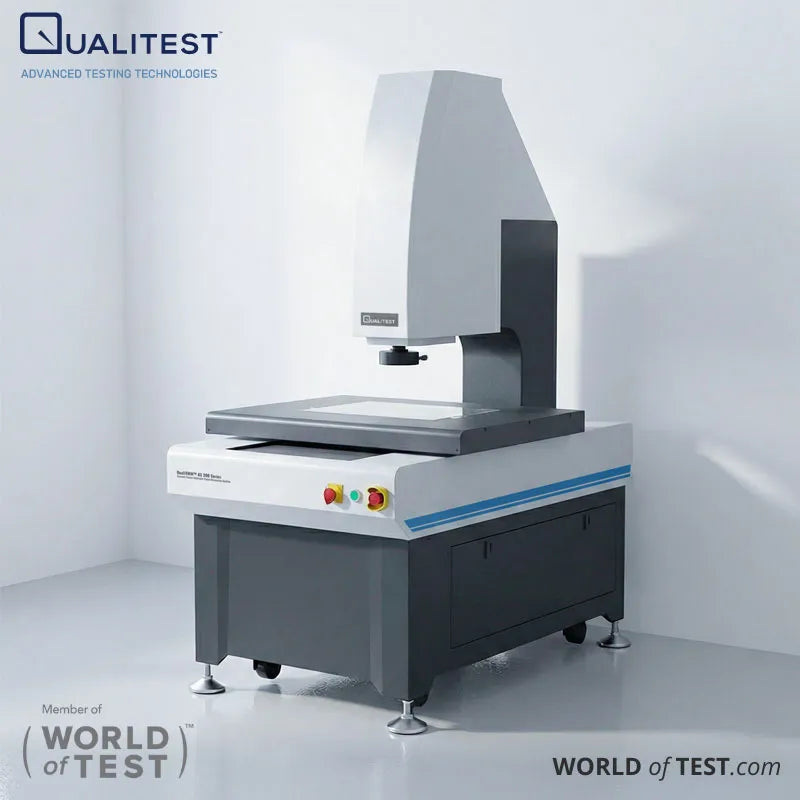

Built on a 300×200×200 mm platform, this series supports optical measurement and sensor-ready options for probe and confocal setups. It is suitable for smaller parts and compact workspaces while providing stable automation and detailed reporting.
QualiVMM™ AS 400 Series
With a 400×300×200 mm range, this series offers more capacity for larger fixtures or multi-part setups while maintaining the same sensor configuration flexibility. It fits daily production inspection where scaling is needed without increasing footprint unnecessarily.
QualiVMM™ AS 500 Series

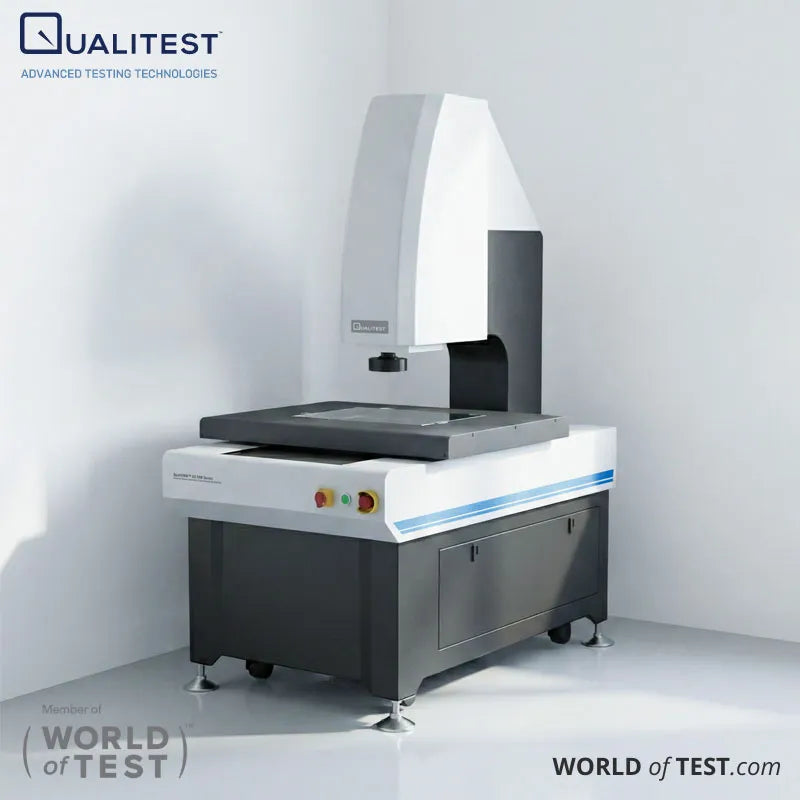

Based on a 500×400×200 mm platform, this series supports larger parts, bigger fixtures, and higher throughput routines. Applications include electronics, automotive components, glass panels, PCBs/stencils, rubber seals, and gears.
Common Applications
- CNC dimensional inspection – Programmed routines deliver repeatable checks and reduce operator variation.
- Batch inspection with fixtures and arrays – Single programs can be reused for consistent batch inspections.
- Challenging surfaces and mixed finishes – Multi-zone LED and contour lighting improve edge detection on reflective, dark, textured, or coated parts.
- 2.5D and 3D measurement – Optional sensors enable height, surface, and advanced 3D inspections.
Selecting the Right Model
Choose the series based on part size and fixture strategy:
- AS 300 Series – Small parts, compact setups.
- AS 400 Series – Larger fixtures, more flexibility.
- AS 500 Series – Large parts, higher batch density.
Optical-only is ideal for routine 2D checks, while probe and confocal configurations provide consistent verification for height, surface, or 3D features.
Quick comparison table
| Series | Measuring range (X×Y×Z) | XY accuracy | Z accuracy | Repeatability | Machine size (W×D×H) | Net weight |
|---|---|---|---|---|---|---|
| QualiVMM™ AS 300 Series | 300×200×200 mm | ≤ 2.0 + L/200 μm | ≤ 4.0 + L/200 μm | ±2 μm | 1146×720×1664 mm | 380 kg |
| QualiVMM™ AS 400 Series | 400×300×200 mm | ≤ 2.0 + L/200 μm | ≤ 4.0 + L/200 μm | ±2 μm | 1331×840×1664 mm | 450 kg |
| QualiVMM™ AS 500 Series | 500×400×200 mm | ≤ 2.5 + L/200 μm | ≤ 4.0 + L/200 μm | ±2 μm | 1257×920×1640 mm | 600 kg |
Sensor configurations available across the QualiVMM™ AS Series
A single operating workflow can be used across applications, with the sensor package selected per requirement. Configurations are identified as A, B, C, or D in the brochure.
- Type A: Optical zoom-lens measurement (2.5D vision)
- Type B: Optical + contact probe measurement (3D contact + vision)
- Type C: Optical + confocal measurement (laser/confocal + vision)
- Type D: Optical + probe + confocal (multi-sensor measurement)
