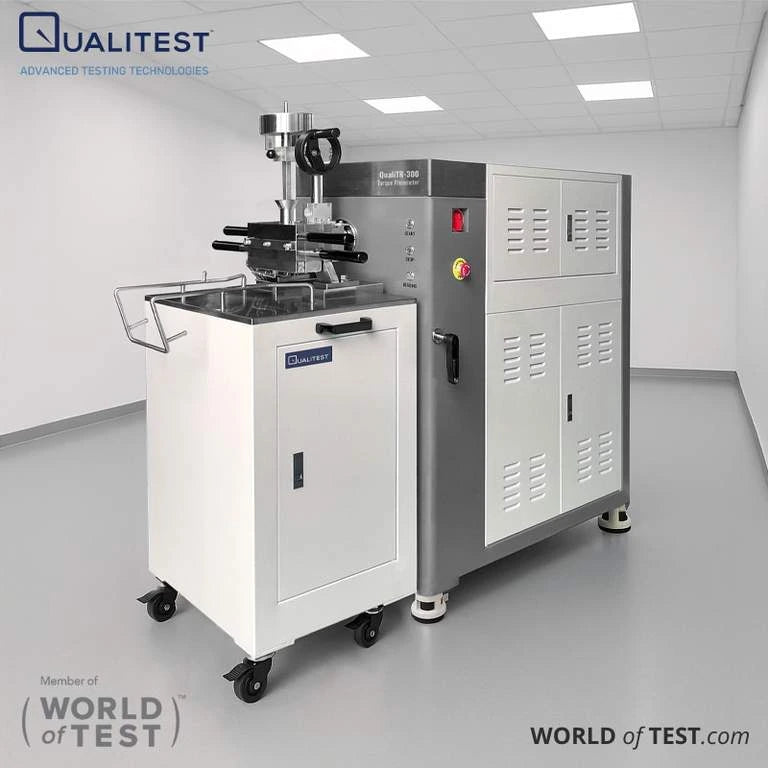

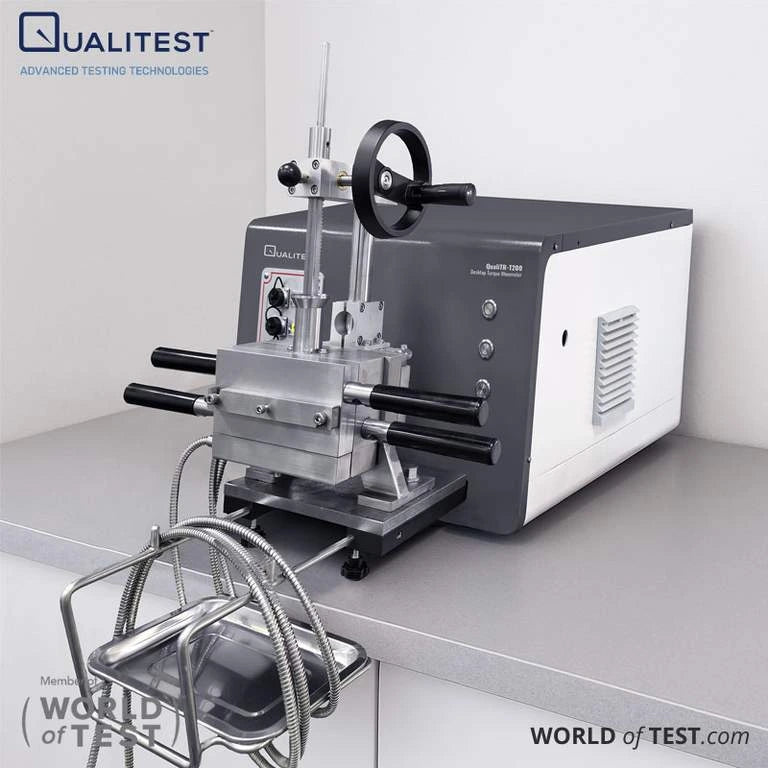

Torque Rheometers

Torque Rheometers – Advanced Polymer Processing and Rheological Analysis

Torque Rheometers are laboratory testing instruments used to evaluate the flow, deformation, mixing, and processing behavior of polymers and other materials under controlled conditions. Qualitest Torque Rheometers provide precise measurement of torque, temperature, and material behavior for research and development, formulation studies, quality control, and polymer processing applications.

What Is a Torque Rheometer?

A Torque Rheometer measures the rotational force, or torque, generated by a material during controlled processing operations such as mixing, kneading, and extrusion. By simulating processing conditions on a laboratory scale, torque rheometers provide valuable information about material processability, thermal stability, plasticity, shear resistance, mixing behavior, and formulation performance.

Torque rheometer systems can be configured with different processing attachments, including mixers, extruders, and kneaders. This modular design makes them suitable for a wide range of polymer testing and material development applications, including polymer compounding, additive evaluation, and formulation optimization.

Torque Rheometer Applications

Qualitest Torque Rheometers support material testing and process analysis across a variety of industries:

• Plastics and Polymer Testing: Evaluate PVC dry blends, thermoplastics, rubber compounds, and thermosetting materials for processing characteristics, melt behavior, and formulation performance.

• Rubber and Elastomer Testing: Analyze mixing characteristics, curing behavior, and processing performance of rubber and elastomer compounds.

• Food Material Testing: Study the consistency, mixing characteristics, and flow behavior of doughs, pastes, and other viscous materials.

• Pharmaceutical Research: Evaluate the mixing and kneading behavior of powders, pastes, and formulation components.

• Chemical and Additive Research: Analyze the compatibility and processing performance of stabilizers, lubricants, plasticizers, and other material additives.

Torque Rheometer Standards and Testing Methods

Qualitest Torque Rheometers can support testing procedures based on applicable international standards and laboratory methods. Depending on the selected configuration and application, testing may include:

• ISO 11357: Plastics — Differential scanning calorimetry for thermal behavior analysis.

• ISO 6721: Plastics — Determination of dynamic mechanical properties.

• ASTM D4440: Plastics — Determination of rheological properties using dynamic mechanical methods.

• DIN 53014: Methods related to viscosity and rheological measurement.

• ASTM D2538: Standard test method for fusion characteristics of PVC compounds using a torque rheometer.

• ASTM D2230: Methods related to analysis of PVC processing characteristics.

The systems can also support customized testing protocols and digital data acquisition for detailed analysis of torque-time, torque-temperature, and viscosity trends. Graphical data presentation allows users to compare material formulations and monitor changes during processing.

Why Choose Qualitest Torque Rheometers?

Qualitest Torque Rheometers are designed to provide flexible testing configurations and precise control for laboratory and industrial material analysis.

Key features include:

• Modular and upgradeable system configurations

• Precise torque and temperature measurement

• Controlled processing conditions for repeatable testing

• User-friendly software with real-time data monitoring

• Digital data acquisition and graphical analysis

• Compatibility with mixers, extruders, kneaders, and other processing attachments

• Suitable for polymer research, formulation development, and quality control

Advanced Torque Rheometer Testing for Polymer Processing

Whether testing thermoplastics, PVC compounds, elastomers, rubber materials, additives, or other processable materials, Qualitest Torque Rheometers provide detailed information about material behavior during controlled processing.

With flexible configurations, precise measurement capabilities, and comprehensive data analysis, Qualitest Torque Rheometers help laboratories evaluate material formulations, investigate processing behavior, and support product development and quality control.

Explore the Qualitest Torque Rheometer range to find a testing solution suited to your polymer processing and material characterization requirements.
