Precision Metallographic Cutting Machines for Sample Preparation
Precision Metallographic Cutting Machines for Sample Preparation | QualiPreciCut™ Series
The QualiPreciCut™ Series from Qualitest is a line of precision metallographic cutting machines built for clean, accurate, and damage-free sectioning of specimens. Designed to meet strict metallography lab standards, these precision cutters deliver repeatable results and consistent cut quality on metals, alloys, ceramics, and composites.
Metallurgical laboratories, quality control departments, and research facilities rely on the QualiPreciCut™ Series for its powerful cutting performance, fine feed control, and built-in safety features. Every cut produces a high-quality specimen that is ready for grinding, polishing, and microscopic examination.
Both manual and automatic metallographic cutting machines are available. Each model includes a high-speed motor, an intuitive interface, and a long-lasting cutting wheel, so you can protect sample integrity and achieve exact cut precision, even with demanding materials.
Choose the Right Metallographic Cutter for Your Lab
QualiPreciCut™ machines help QC and R&D labs section delicate materials with low deformation, repeatable results, and a streamlined sample preparation workflow. Compare our low-speed and automated precision cutting machines to find the best fit for your laboratory’s needs. Use the table below to compare models and select the right option for your lab.
| Parameter | QualiPreciCut™ 5 | QualiPreciCut™ 50S | QualiPreciCut™ 5000B |
|---|---|---|---|

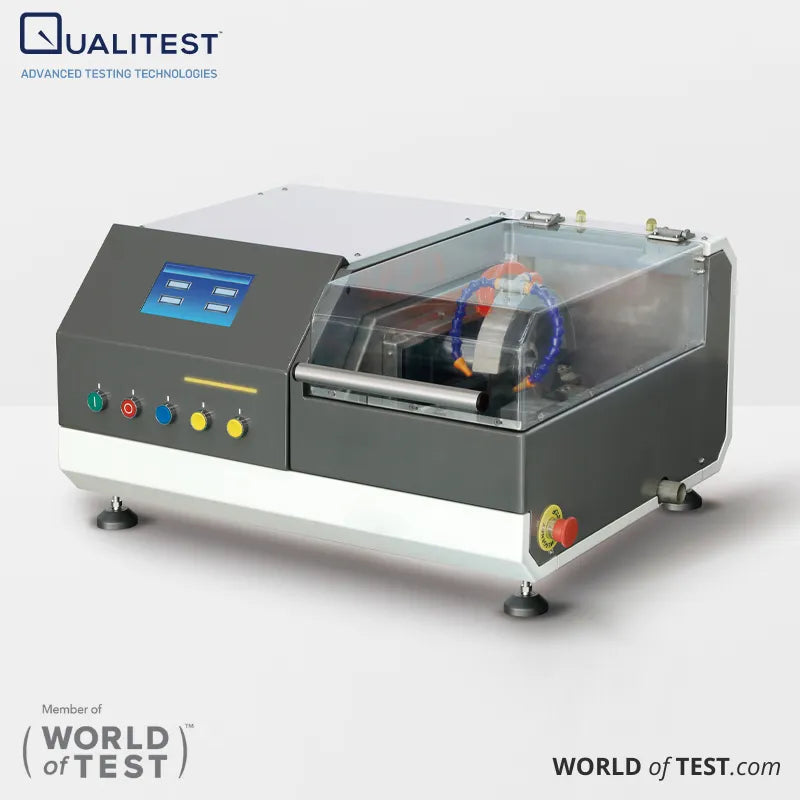

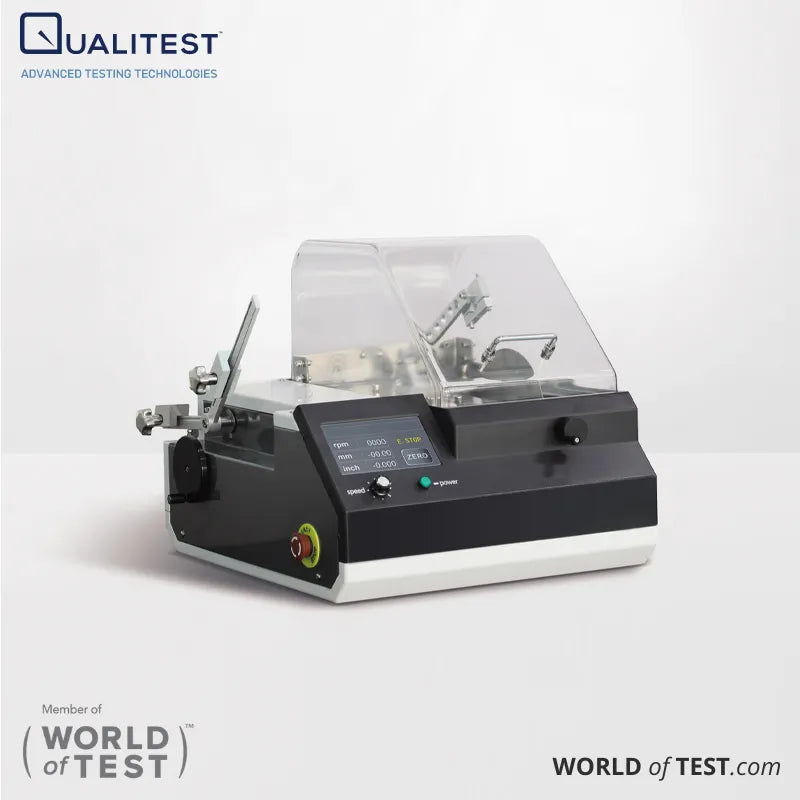

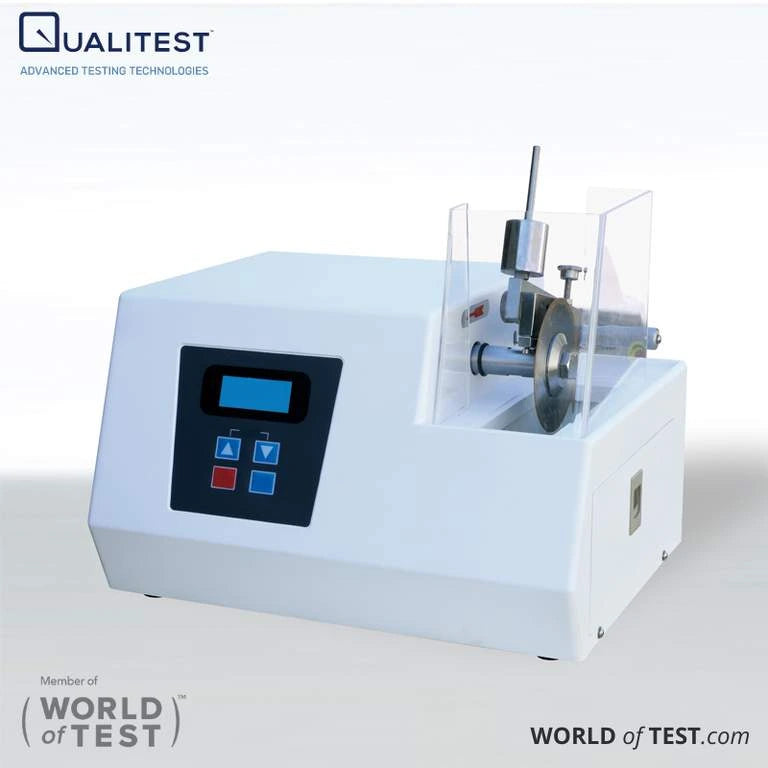

| Positioning / Use Case | Low-speed precision cutter for hard materials and delicate synthetic crystals; can run unattended and auto powers off. | Precision cutter for a wide range of materials; strong performance on delicate, high-value brittle parts. | Precision cutting machine for metals, electronic components, crystals, alloys, rocks, and biological samples; automated cutting. |
| Maximum Cutting Capacity | Φ100mm × 0.5mm × 20mm | 50 mm | φ60 mm |
| Spindle / Blade Speed | 10–600 r/min | 150–2000 r/min (stepless) | 500–5000 r/min |
| Feed / Travel | Max movement 25 mm | X-axis traverse stroke 40 mm | Feed speed 0.01–3 mm/s; Y-axis max travel 200 mm |
| Blade / Cutting Piece | Not stated | OD 127–177 mm (max 200 mm); ID 12.7 mm or 25.4 mm | 200 × 1 × 32 mm |
Whether you’re preparing specimens for microstructure analysis or hardness testing, the QualiPreciCut™ Series precision metallographic cutting machines give you dependable, repeatable cuts with simple, intuitive operation.
