Drilling & Milling Center – QualiMill™ 400

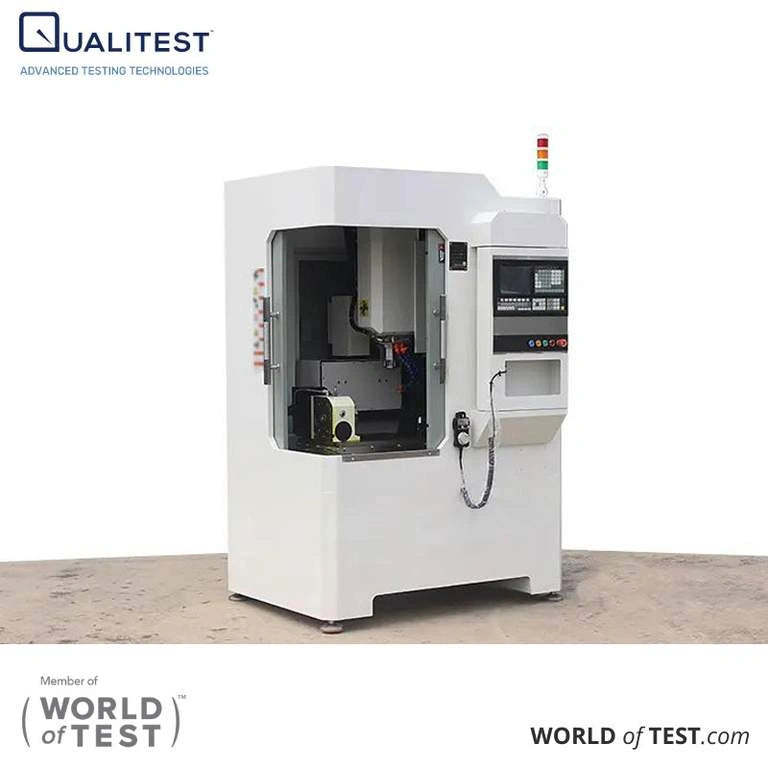

The QualiMill™ 400 is a compact, high-precision CNC drilling and milling center designed for versatile metalworking. Engineered for demanding industrial applications including stainless steel tapping and engraving, it delivers professional-grade machining through a rigid 4-axis control system and high-speed BT30 spindle within a deformation-resistant cast architecture without compromising on accuracy or multi-tool efficiency.

  • 24,000 RPM Max Optional Spindle Speed
  • ±0.01mm Repeat Positioning Accuracy
  • 8-Station Integrated Automatic Tool Changer
  • 35,000 mm/min Rapid Feed Performance

Get personalized pricing for your specific requirements

Drilling & Milling Center – QualiMill™ 400

Drilling & Milling Center – QualiMill™ 400 is a compact, cost-effective CNC solution engineered for high-precision machining and user-friendly operation. It is equipped with a powerful 4-axis CNC control system featuring a multi-language interface for enhanced usability. A standard MPG handwheel is included to support accurate manual positioning and fine adjustments.

Constructed using premium-grade cast materials, the machine ensures excellent rigidity and long-term stability. It integrates high-precision linear guideways and ball screw systems for smooth and accurate axis movement. The XYZ axes are driven by AC servo motors, with an optional 4th axis available for extended machining capability.

This model includes flood coolant functionality and an automatic lubrication system to maintain consistent performance during extended operation. It is fitted with a BT30 spindle, with a standard high-speed option of 6,000 RPM and an upgrade option reaching up to 24,000 RPM for high-speed applications.

The QualiMill™ 400 supports efficient 8-station processing and is capable of machining copper, iron, aluminum, and stainless steel workpieces up to 500mm × 400mm. It is fully compatible with a wide range of machining operations, including drilling, tapping, milling, and engraving.

With its rigid, deformation-resistant structure, this CNC system is well-suited for demanding stainless steel applications, supporting tapping up to 8mm and drilling up to 10mm with high accuracy and consistency.

Drilling & Milling Center – QualiMill™ 400

Drilling & Milling Center – QualiMill™ 400 Drilling & Milling Center – QualiMill™ 400
Drilling & Milling Center – QualiMill™ 400 Drilling & Milling Center – QualiMill™ 400

Drilling & Milling Center – QualiMill™ 400 Features

  • High-performance 4-axis CNC milling control system designed for precise and stable machining

  • Standard configuration includes an MPG handwheel for accurate manual operation and positioning

  • Integrated coolant sink with nozzle system for effective heat dissipation during machining

  • High-precision linear guideways combined with premium cast construction for a compact, rigid structure

  • Automatic lubrication system ensures smooth movement and extends the lifespan of guide rails

  • High-quality 3-axis servo motor system delivers consistent and reliable motion control

  • USB and RS232 communication ports enable smooth data transfer and system connectivity

  • Pre-installed high-speed 4-axis interface for enhanced multi-axis machining capability

Drilling & Milling Center – QualiMill™ 400 Technical Specifications

Spindle type Unit Machinery High-speed
Max Spindle Speed rpm 6000 24000
Spindle Power Kw 3 4.5
Spindle Taper   BT30
Repeat positioning accuracy mm ±0.01
X Axis Travel mm 400
Y Axis Travel mm 500
Z Axis Travel mm 200
Motor Power(X/Y) Kw 0.75 AC Servo
Motor Power(Z) Kw 1.2 AC Servo
Rapid feed rate(X/Y) mm/min 35000
Rapid feed rate(Z) mm/min 25000
Cutting feed rate mm/min 10000
ATC tool number   8
Pneumatic supply MPa 0.5
Collet chuck   ER25
Tool DIA. range mm 1-16
Transmission   Ball Screw
Guide rail   High-precision linear guide rail
Table size mm 400x500
Max. Load Kg 200
Power Supply   3 phase 380V
Weight kg 2000/2100
Machine Size mm 1400x1100x2000
Packing Size mm 1500x1200x2100
