Best Practices for Your Food Freeze Drying Cycle

How do you keep fresh, mouth-watering flavors and crisp textures completely intact during high-volume food production?

We believe that optimizing your typical freeze drying cycle is the absolute best way to protect your bottom line, reduce your overall freeze drying cycle time, and identify precisely when freeze drying cycle is complete.

The Phases of a Typical Freeze Drying Cycle

To put it simply, a typical freeze drying cycle boils down to three highly specific, carefully managed phases that get rid of moisture without heating your product into a compromised, mushy state:

1. Freezing (The Critical Freeze)

You’ve got to chill the product way down past its specific triple-point mark so the ice turns straight to gas later instead of melting into liquid. Freezing it rapidly forms smaller ice crystals that protect cellular integrity, while a slower cooling rate leaves you with larger ice structures that speed up sublimation but often worsen the food's final structure.

Our Professional Take: We honestly think this cold start is the single most important, yet constantly ignored, part of the whole run. In our view, rushing through this freezing step leaves you with a compromised base that is incredibly hard to correct later in the dryer.

2. Primary Drying (Sublimation)

We pull a deep vacuum in the chamber and gently introduce thermal energy to the shelves. This causes the solid ice to evaporate straight into vapor without ever turning back into water. A low-temperature condenser catches this vapor so it doesn't damage your vacuum pump.

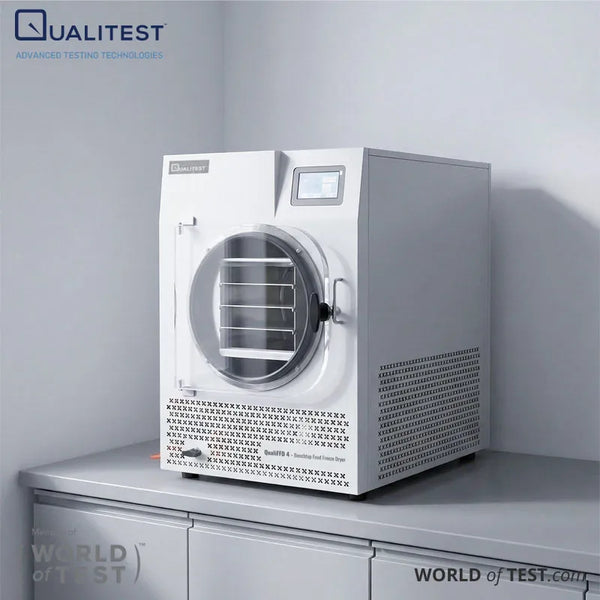

For example, professional bridges for early R&D like our Benchtop Food Freeze Dryer – QualiFFD™ 4 handle this gas removal flawlessly by pairing a Minus 60 Celsius Cold Trap Temperature with a 5 Pascal Ultimate Vacuum Level. This step removes the free ice and is normally the longest, most energy-intensive stage of the operation.

3. Secondary Drying (Desorption)

For the final step, we crank the shelf temperature even higher than before. We do this to break the stubborn chemical bonds holding onto the last tiny drops of bound water so your food can remain shelf-stable for years to come, achieving a total water removal of roughly 95–99.5%.

Making Sense of Freeze Drying Cycle Time

The one burning question we get from busy factory bosses is: How long does a single batch actually take to finish?

While a standard commercial run usually stretches anywhere from a quick 20-hour shift to a heavily extended 48-hour marathon, the honest truth is that your total freeze drying cycle time swings wildly based on a bunch of built-in and external factors. This massive variance is largely driven by the constant tradeoff between saving precious hours and maintaining top-tier quality:

• Moisture Load and Product Density: Food items bursting with sugar or dripping with natural juices (like ultra-sweet Pacific Northwest strawberries, thick slabs of Midwestern beef, or wild-caught Alaskan salmon) naturally demand a much longer freeze drying cycle time than airy, less dense ingredients.

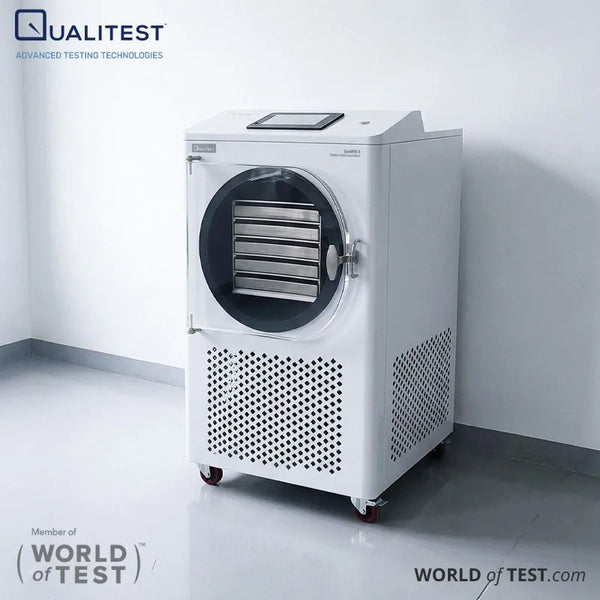

  Processing these wet items requires matching your raw material to the exact right machine capacity—such as the 6 Kilogram Maximum Feed Capacity and 0.6 Square Meter Drying Area on our Medium Food Freeze Dryer – QualiFFD™ 6—so you never overwhelm the hardware during pilot batches.
• Product Thickness and Surface Area: The thicker you pile your food on the trays, the longer it takes for the trapped vapor to escape from the center. Slicing and dicing everything into smaller portions or thinner layers can shave hours off the process.
• Equipment Efficiency and Specifications: Industrial-grade systems built with highly efficient condensers, heated shelves, and powerful vacuum pumps will process heavy moisture loads far faster than smaller units.

Our Professional Take: While everyone wants to speed up their freeze drying cycle, we tend to find that trying to force a shorter time by applying aggressive heating usually backfires, leaving you with collapsed, shriveled food.

Temperatures must stay below the product's critical limits to avoid shrinkage or melting. In our opinion, prioritizing vacuum stability over high heat gives you far better, more consistent results every single time.

How to Know When Freeze Drying Cycle is Complete

Yanking your trays out of the chamber even a minute too early leaves hidden pockets of moisture inside, which is a recipe for microbial growth, ruined batches, and incredibly expensive customer recalls.

On the flip side, leaving the machinery running too long wastes valuable electricity and stalls your production schedule. So, how on earth do you know when freeze drying cycle is complete?

• Temperature Tracking: While the ice is sublimating, the product remains cold. Once all that ice is totally gone, the product's temperature will automatically climb up to match the warm shelves. Pushing the shelf temperature up for secondary drying before all the ice is gone introduces a massive risk of structural collapse.
• Pressure Rise Testing: Performing a quick pressure check by isolating the drying chamber from the condenser is an incredibly smart trick. If the chamber pressure rises rapidly, vapor is still escaping, and the machine needs to keep running.
• Tray Weight-Loss Tracking: One of the most foolproof ways to verify your batch is finished is checking the physical weight of your product. Because trapped water holds actual physical mass, your food constantly gets lighter as the vapor escapes. Once the tray weight absolutely stops dropping and completely flatlines, you have hard, mathematical proof that the moisture is gone.
• Sensory and Physical Checks: If you must do a manual check, the food ought to feel lukewarm and bone-dry. Snapping the thickest chunk right down the middle should show a totally dry core with zero cold spots or hard, icy centers.

Our Professional Take: Even though breaking samples in half is a widely practiced factory habit, we honestly believe that relying on human fingers is a massive gamble that modern businesses shouldn't take.

In our view, prioritizing automated sensor readings and pressure rise tests is the only smart way to make sure every single batch is identical, even if food-specific evidence for these online control workflows is still catching up to pharmaceutical standards.

A Quick Tease: Choosing the Right Equipment

Achieving a highly efficient freeze drying cycle relies completely on selecting the exact right machine footprint for your particular facility. When comparing your options, you have to weigh variables like daily production targets, the specific moisture load per batch, your total tray capacity needs, and the specific electrical hook-ups available inside your building.

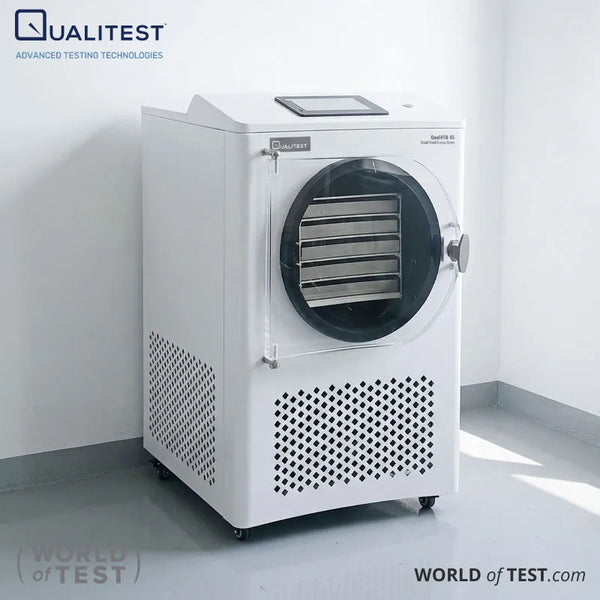

For instance, if your goal is small-scale preservation and test batches, a unit like our Small Food Freeze Dryer – QualiFFD™ 4S (New Generation) provides a perfectly sized 0.4 Square Meter Freeze Drying Area and a Minus 45 Celsius Cold Trap Temperature operating at a 10 Pascal Ultimate Vacuum Level.

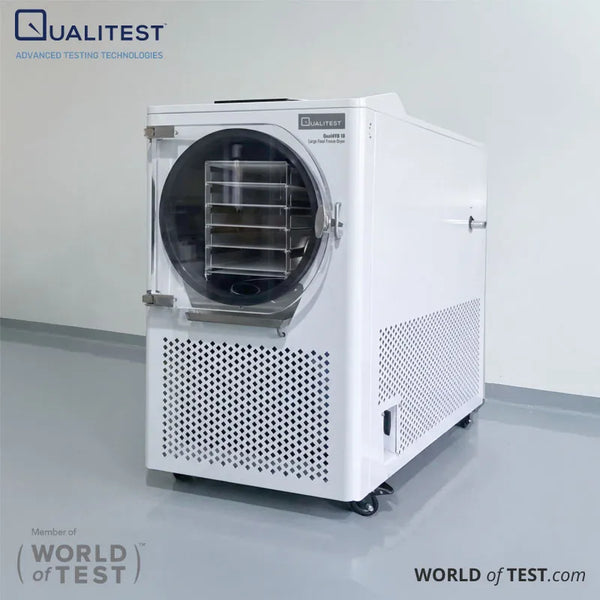

On the flip side, if you are supplying test kitchens or expanding a small-scale production environment, you need the Large Food Freeze Dryer – QualiFFD™ 10, stepping up to a 1 Square Meter Drying Area and a full 10 Kilogram Maximum Feed Capacity to hit your production targets.

Our Professional Take: It is incredibly common for facility planners to make this decision way harder than it needs to be by obsessing over whether their plant is wired for standard US 3-phase 208V or 480V electrical systems first, rather than prioritizing these exact tray-area layouts and expected wet product weights.

If you want to read all our thoughts on matching these details to your business goals, you should definitely check out our separate, super-detailed write-up on how to pick a food freeze dryer.

Perfect Your Freeze Drying Cycles with Qualitest

When you are ready to scale up from lab trials to high-capacity factory setups, a dependable machinery partner is a lifesaver. At Qualitest, we analyze equipment through a highly technical lens. We know the exact tray dimensions, condenser limits, and vacuum levels needed to run a highly reliable freeze drying cycle.

We offer a highly cost-effective range of top-tier Food Freeze Dryers to meet your processing demands:

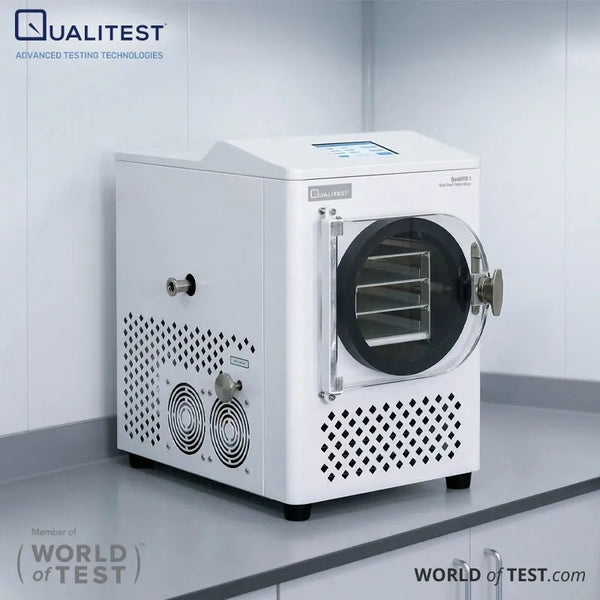

• Mini Food Freeze Dryer – QualiFFD™ 1: Perfect for benchtop R&D and recipe trials.
• QualiFFD™ 4S & QualiFFD™ 4: The ideal bridges for pilot runs, offering up to 4 Kilogram Maximum Feed Capacity.
• QualiFFD™ 6 & QualiFFD™ 10: Built to handle heavy moisture loads and frequent commercial trials.
• Industrial Food Freeze Dryer – QualiFFD™ In Series: Our high-capacity, heavy-duty systems built for complete plant integration and maximizing daily output.

We also back your operations with comprehensive documentation for regulated manufacturing, factory testing, and spare parts support.

Go ahead and check out our entire Food Freeze Dryer lineup right now, and let’s figure out the absolute best machine setup for your business!
