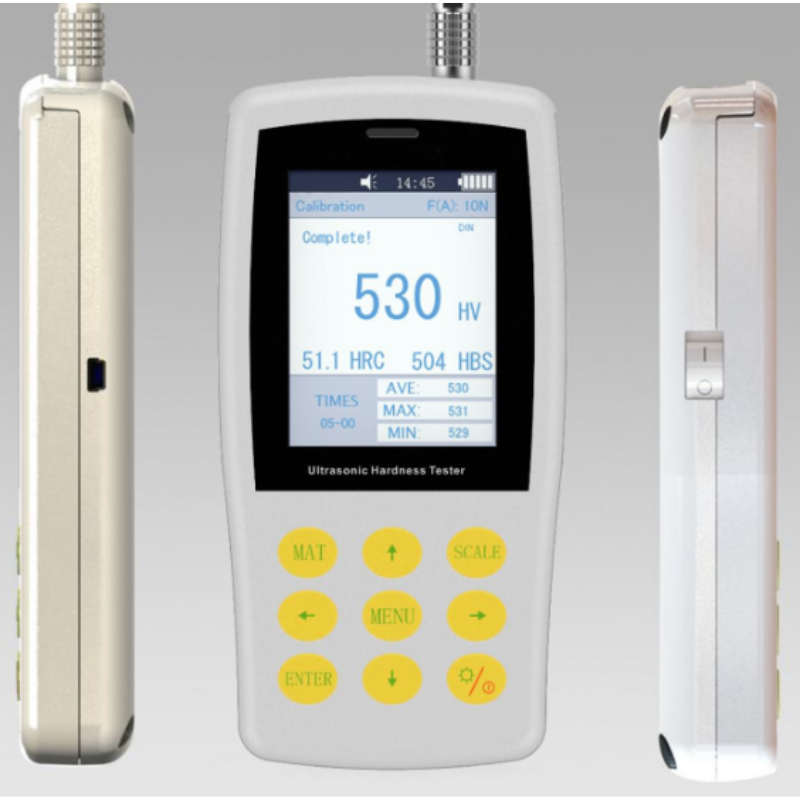

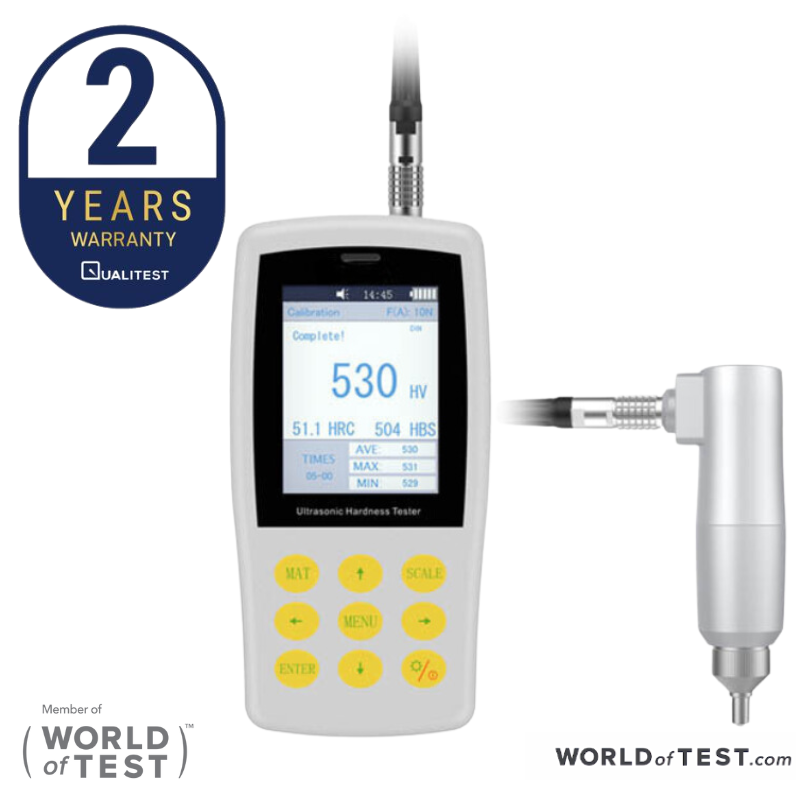

Introducing the Shortened Probe Ultrasonic Hardness Tester - UCI-3400T: Your Portable Solution for Accurate On-the-Spot Hardness Testing
Discover the UCI-3400T, a specialized manual portable hardness tester designed by Qualitest North America, featuring a shortened probe HP-1T. This cutting-edge device utilizes the ultrasonic contact independence method, enabling precise hardness testing on the spot. The UCI-3400T is a Non-Destructive Testing (NDT) hardness tester, ideal for applications where the contact indention is too small to observe, making it an excellent solution for testing the hardness of inner walls in engines, pressure vessels, pipelines, and more.
The UCI-3400T conforms to the following standards:
Upgrade your hardness testing capabilities with the UCI-3400T – the perfect blend of accuracy, convenience, and reliability. Invest in quality assurance for your engineering, manufacturing, and inspection needs.
Product Name |
Shortened Probe Ultrasonic Hardness Tester |
||||
Model | UCI-3400T | ||||
Standard Probe | 10N:HP-1T | ||||
Hardness Range(ASTM) |
HRC:20-68;HRB:55-100;HRA:37-85; HBS:100-500;HV:100-1500;Mpa:255-2180N/mm |
||||
Measuring Accuracy(%) |
Scales | ﹤250HV | 250~500HV | 500~800Hv | ﹥800HV |
HV0.1 | 6 | 7 | 8 | 9 | |
HV0.3 | 6 | 7 | 8 | 9 | |
HV0.8 | 5 | 5 | 6 | 7 | |
HV1 | 5 | 5 | 6 | 7 | |
HV5 | 5 | 5 | 5 | 5 | |
HV10 | 5 | 5 | 5 | 5 | |
Hardness Scales | Vickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB) | ||||
LCD | Color Screen | ||||
Data Display | LCD Backlight, Adjustable | ||||
Language | English, German, Portugese, Turkish, Chinese | ||||
Data Output | RS232 Hyper Terminal/Bluetooth Printer | ||||
Bluetooth | |||||
Data Storage | To save 1000-groups of measuring data and 20-groups of calibration data | ||||
Word input | Letters and numerals | ||||
Working Environment | Temperature: -10°C to 50°C Humidity :30%-80% R.H. | ||||
Battery Voltage | Rechargeable lithium battery ; Voltage :4.2V, 4800mAh | ||||
Recharger Voltage | AC220V/50Hz, 110V/60Hz | ||||
Main unit Dimension and Weight | Main unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg | ||||
Packing Dimension and Weight | Packing Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight (Standard Delivery)4.3Kg |
Product Name | Code # | Product Name | Code # | Product Name | Code # |
Instrument Main Body | 882-141T | 10N Manual Short Probe | 882-321T | Anti Vibration Case | 882-901 |
Standard Rockwell Block | 882-641 | Probe Cable | 882-801 | Screw | 882-951 |
USB Recharger | 882-851 | COM Cable | 882-810 | Operation Manual/ | UCI-3400T |
Qualification Certificate | UCI-3400T | Packing List | UCI-3400T | Warranty Card | UCI-3400T |
Click Here to visit the product webpage
