A Guide on How to Use a Profilometer Effectively

Getting a component's surface finish right is the critical difference between a part that performs reliably and one that results in costly failures.

Having worked with countless partners across North America, we've seen firsthand that there isn't a single shortcut. The smallest imperfection, often invisible to the naked eye, can impact performance.

This is why knowing how to use a profilometer is not just a technical skill, but a crucial business practice. Every square millimeter of that surface holds vital data, and an effective profilometer procedure is the only way to interpret it correctly.

How Do You Use a Profilometer Effectively? A Step-by-Step Guide

Let's get to the process. The correct profilometer use is less about advanced theory and more about a disciplined, repeatable method. Following these steps is key to getting surface data that you can actually stand behind.

Step 1: Know Your Equipment's Capabilities

First, you need to be clear on what your profilometer is built to do.

This first step in proper profilometer operation is understanding your instrument. Most use a sensitive stylus that physically traces the surface. The key advantage of modern equipment, in our view, is its flexibility.

We find our clients gain the most value from versatile units that can handle both simple roughness checks and more complex evaluations. A clear grasp of your machine's capabilities is foundational to knowing how to use a profilometer for different applications.

Step 2: Prepare the Component Correctly

We have seen more measurement errors stem from improper setup than almost any other source. A critical part of knowing how to use profilometer instruments is the setup phase.

It's a simple step, but one we constantly reinforce during our customer training and support sessions.

1. Ensure the Surface is Clean. Any residual fluid or debris will compromise the reading.

2. Secure the Component. Place your part on the instrument's stage and ensure it is fixtured. Movement during the test will invalidate the results.

3. Position the Stylus. Carefully bring the measurement head so the stylus is positioned precisely over the target area.

Step 3: Verify the Instrument's Accuracy

Calibration is the non-negotiable step for data integrity. Every unit we ship from Qualitest, for example, comes with its own certified specimen to make this process straightforward. This verification is a core part of the guide to using a profilometer correctly.

• Measure the certified reference specimen.

• If the result does not match the certified value, your instrument requires adjustment. Following the instructions is the most efficient way to ensure your measurements are accurate.

Step 4: Define the Measurement Parameters

Before a scan, you must define the test parameters. Defining these settings is central to the profilometer procedure. On a modern instrument like our QualiSurf III-Plus, this is streamlined via a touch screen. Key parameters include:

• Evaluation Length (L): The total distance the stylus will travel.

• Cutoff Length (l): This filters out waviness from roughness, which is essential for meeting industry standards.

• Parameters (Ra, Rz, etc.): While Ra is common, we always advise our partners to also monitor Rz. Rz is far more sensitive to the outlier peaks and valleys that can cause functional issues. This insight is a key takeaway for anyone learning how to use a surface roughness tester.

Step 5: Execute the Measurement

With the parameters set, you can begin the scan. The stylus will trace the defined path. It is vital that the instrument remains undisturbed. Any external vibration can corrupt the data from your profilometer use.

Step 6: Interpret the Results

After the scan, the software displays the values and a graphical profile. The software included with Qualitest instruments, for instance, is designed for clear visualization, making it easier to document findings from your profilometer operation.

Common Issues and Solutions in Profilometer Use

Even when you know how to use a surface roughness tester, challenges can arise. Here are common issues and our professional recommendations.

1. Readings are inconsistent and not repeatable

First, confirm the sample is clean and secure. Second, verify your calibration. Finally, inspect the stylus tip for wear. A worn stylus is a primary cause of unreliable data, which is why we keep a full range of replacement styli in stock, knowing that uptime is critical for our customers.

2. The stylus is causing surface damage

This is a red flag that the measurement force is too high. Proper profilometer use demands matching the settings to the material. For softer materials, a non-contact system or a portable with a low-force stylus is the correct solution.

3. Difficulty accessing the measurement area.

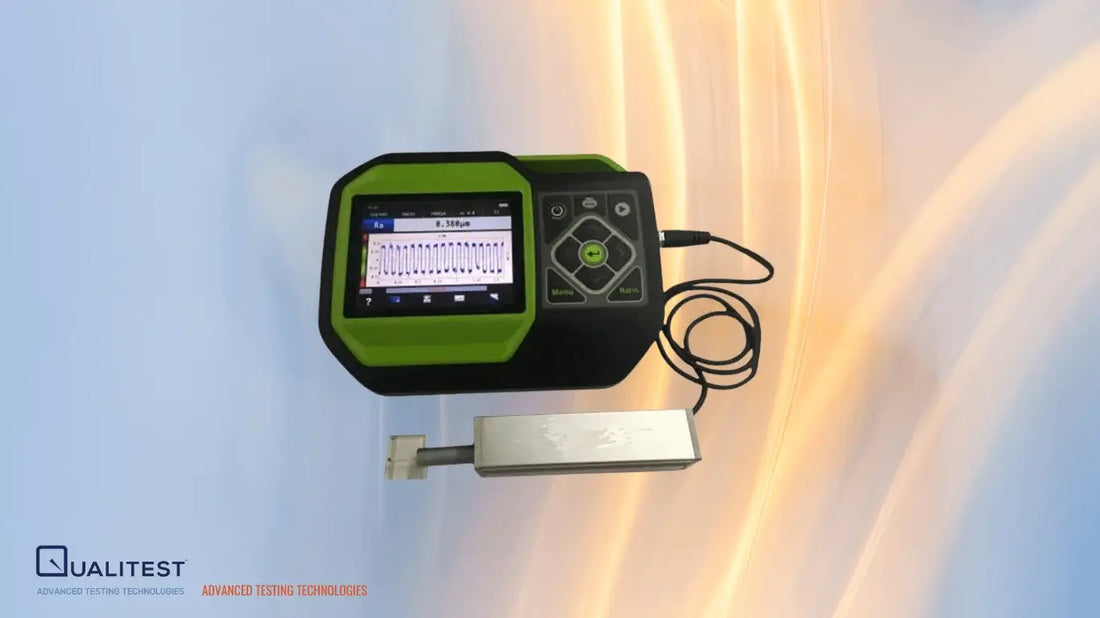

Measuring inside grooves presents a challenge for traditional units. This is where a portable profilometer is effective. An instrument with a detachable drive unit, like our QualiSurf III-Plus, provides the flexibility needed for using a profilometer on complex geometries.

Ensure Quality with a Qualitest Profilometer

Ultimately, a complete understanding of how to use a profilometer is a core competency for any organization committed to quality manufacturing. A precise grasp of a component's surface is essential for controlling friction, wear, and product reliability.

At Qualitest, we believe having the right instrument is just as important as having the right procedure.

We are committed to providing high-quality, cost-effective solutions that deliver the data integrity you require. Our QualiSurf III-Plus Surface Roughness Tester is an instrument we stand behind—a versatile, portable unit engineered to make precision measurement both accessible and efficient.

If you are looking to improve your surface measurement capabilities, we invite you to see how our solutions can help you meet the most demanding quality standards.
