How to Use a Portable Hardness Tester: The Pro Guide

In quality control, having the right tool for the specific job is what matters most.

While traditional lab-based testing provides a high degree of precision, some situations demand a different approach. You can't always afford the time or the part destruction that comes with lab analysis.

This is where portable hardness testing becomes a critical advantage.

Understanding how to use a portable hardness tester allows your team to get instant, trustworthy data right on the factory floor for large components or when you need answers immediately.

Selecting the Right Portable Hardness Tester

A key part of knowing how to use a portable hardness tester effectively is first selecting the appropriate instrument for the job. The decision depends on your material, its geometry, and your quality program's specific needs.

As your partner in quality, we've structured our offerings to meet these varied requirements, ensuring you don't have to compromise.

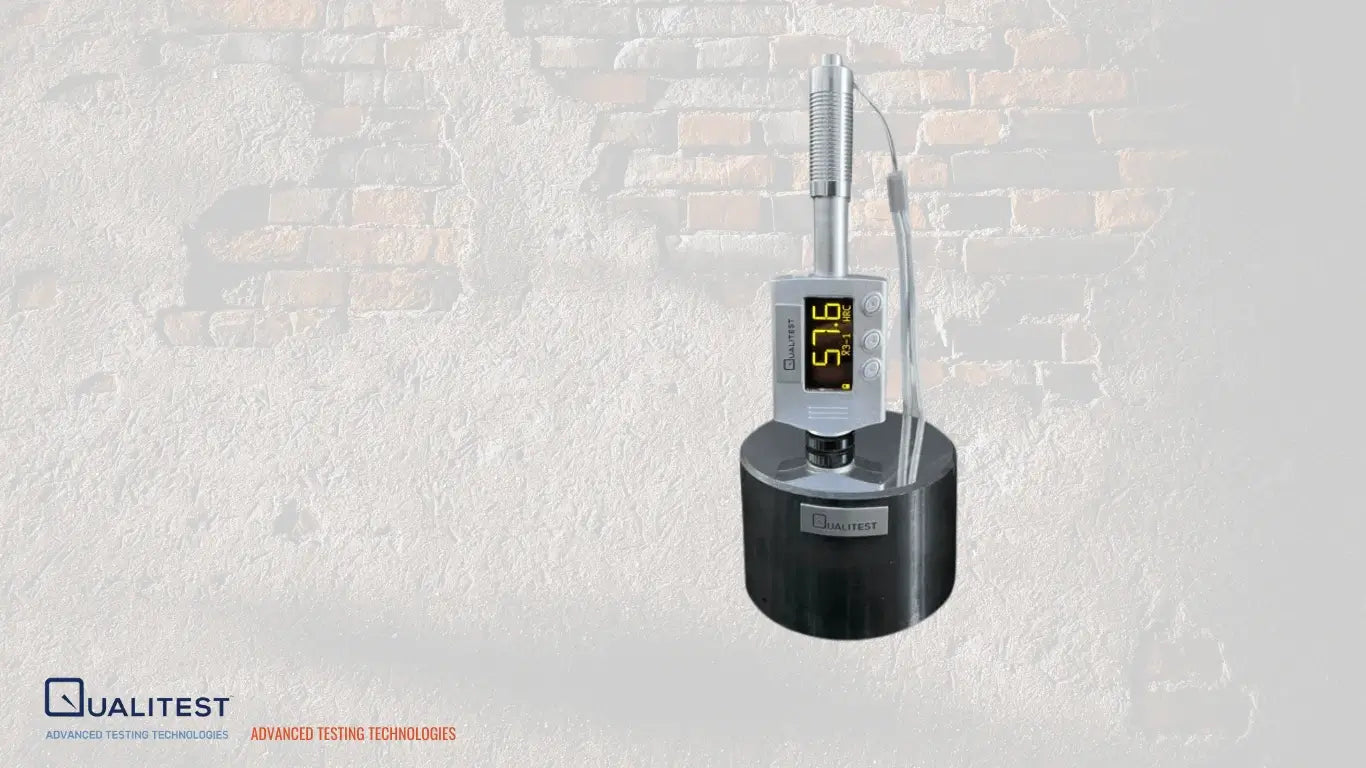

• Rebound (Leeb) Testers: These are the workhorses of portable testing, perfectly suited for large, coarse-grained components like metal castings and forgings. They operate on a dynamic rebound principle and are known for their speed and ease of use. Our own QualiTip series is a prime example, offering everything from economical models to advanced systems compliant with ASTM A956.

• Ultrasonic Contact Impedance (UCI) Testers: When exceptional precision is the priority, UCI is the correct choice. These testers are excellent for smaller or more intricate parts, especially on heat-treated surfaces, welds, and in heat-affected zones. We find they are the top choice for applications demanding a minimal surface indentation.

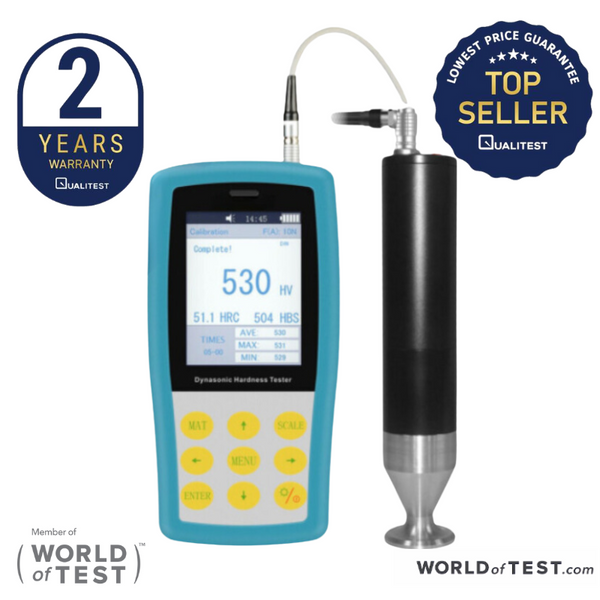

• Dual-Mode (Leeb/UCI) Testers: For maximum versatility, models like our Dynasonic and UCI-4100 series combine both Leeb and UCI technologies. We recommend these for teams that face a wide variety of testing scenarios and require the flexibility of a single instrument.

• Specialized and Magnetic Testers: Some jobs have unique requirements. For very large iron and steel parts where other testers are impractical, our QualiMag series of magnetic Brinell and Rockwell testers are invaluable. For a truly portable Brinell test, the King Brinell and Telebrineller systems are industry standards. For softer metals, Webster testers provide quick checks on materials like aluminum and copper alloys.

The Correct Operating Procedure

The core of learning how to use a portable hardness tester properly involves a consistent sequence of steps. We’ve seen firsthand how improvising the process leads to inconsistent readings that can compromise an entire quality program. Here is our recommended procedure for accurate results, expanded with the details that truly matter.

1. Prepare the Surface

From our experience, this single step causes the most variance between a reliable reading and a questionable one.

The tester's probe needs to make clean, direct contact with the base material. Any intervening layer will absorb some of the test energy, giving you a falsely low reading. Proper surface prep ensures you're getting the true performance we build into every one of our instruments.

For most applications, a small hand grinder is sufficient to create a smooth, flat spot.

2. Ensure the Part is Stable

We always remind our clients that any movement or vibration will produce an unreliable measurement.

The advanced sensors in modern testers are sensitive, so if the component itself flexes or moves, energy is lost to that movement instead of being absorbed by the material's structure. This directly leads to inaccurate readings. The part must be completely rigid to get a result you can trust, a result worthy of your quality program.

3. Calibrate Your Instrument

In our view, calibration is a mandatory step for any professional work. This is more than just a check; it’s a procedure to verify the entire system.

The certified test blocks included with every Qualitest instrument make this process straightforward and reliable. If your readings on the block are within the specified tolerance, you can proceed with confidence.

This traceability is what makes your measurements defensible during a quality audit.

4. Select the Correct Settings

Modern digital testers are powerful, and choosing the right parameters is critical.

• Material Selection: You must tell the instrument what kind of metal you are testing. The clear menus on our testers are designed to make selecting the right material group simple and intuitive. Choosing the wrong group will make the final, converted hardness value incorrect.

• Hardness Scale: Your blueprint will tell you which scale to use. You need to select the correct scale on the device so it displays a value that corresponds to your project requirements.

• Probe and Direction: This is especially critical for Leeb testers. The instrument's software, like that in our QualiTip series, will then compensate for gravity's effect, which is a common source of significant error if forgotten.

5. Perform the Test

With a prepared surface, a stable part, and a calibrated device, you are ready for the test itself. The ergonomic design of our instruments helps the user hold them firmly and place the probe flat, ensuring it is perfectly perpendicular to the test surface. Apply steady, even pressure to seat the probe.

We always recommend taking multiple readings—typically a set of three to five—in a small area. Averaging these values helps to cancel out minor inconsistencies, giving you a much more representative number.

6. Interpret the Results

Our digital testers provide an immediate hardness value, but good practice goes beyond simply writing down the first number.

Look at the set of readings you took. Are they consistent? The data logging and memory functions included in many of our models make reviewing your last set of measurements simple. If one reading is a significant outlier, that outlier should be discarded, and another reading should be taken to ensure a valid average.

Common Mistakes That Compromise Your Data

Even technicians who think they know how to use a portable hardness tester can make simple errors that affect outcomes. By avoiding these common mistakes—the same ones we frequently help our customers troubleshoot—you can improve the integrity of your results.

• Neglecting Surface Preparation: It's the first thing our support team asks about when a customer calls with inconsistent readings. A quick wipe-down does nothing to ensure accuracy.

• Testing on Unstable Parts: Any flex or vibration will absorb impact energy and, in our experience, will almost always produce a falsely low reading.

• Incorrect Probe Angling: We find that even a slight tilt can introduce significant errors. It's a matter of technique that our team can help you perfect.

• Testing Too Close to Edges: Maintain a minimum distance of 3-5mm from component edges and previous indentations to prevent material displacement from affecting the reading.

• Forgetting to Calibrate: Viewing calibration as optional is a serious pitfall. That's why we make the process so straightforward with the certified blocks and software included with our systems.

The Qualitest Way to Use a Portable Tester

Developing a proficiency in how to use a portable hardness tester is a core skill for any professional serious about material verification.

The way we see it, accuracy comes from combining the right instrument with a consistent, disciplined technique. By following a systematic procedure and avoiding common errors, you can get hardness measurements you can rely on, saving time and preventing the need for destructive sampling.
