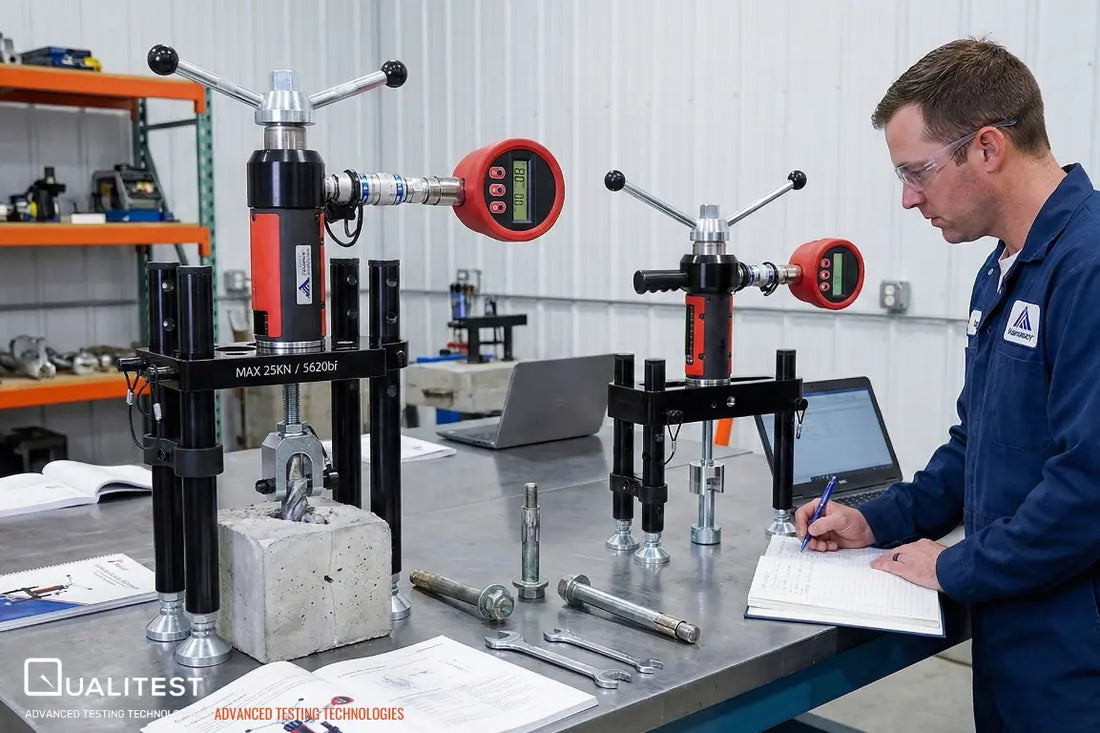

Destructive vs Non Destructive Anchor Testing Explained

In heavy construction, the integrity of your entire project often hangs on a few metal rods driven into concrete. Whether you are securing heavy machinery or installing safety lines, those anchors simply cannot fail.

But how do you verify (we mean truly verify) that they won't slip? That brings us to the critical choice between destructive vs non-destructive anchor testing. Treating these verification procedures like some tedious administrative hurdle is a strategy for disaster.

At Qualitest, we firmly believe that rigorous testing is the single most intelligent insurance policy you can purchase for a project. Here is the straightforward breakdown of these two methodologies and how our equipment can assist you in sorting it out.

Key Takeaways

- Define Your Objective: Destructive testing identifies the absolute breaking point (essential for design and unknown materials), while non-destructive testing confirms installation quality without damaging the structure.

- Safety is Non-Negotiable: Bypassing verification isn't just cutting corners; it is inviting liability. Proper testing guarantees compliance with rigorous standards like ASTM E488 and BS 8539.

- Select the Correct Tool: Whether you require the QualiAnchor M2000 PRO for standard scaffold ties or the QualiAnchor M2008 for massive industrial loads, utilizing versatile equipment protects both your schedule and your budget.

- Diagnose, Don't Guess: Understanding specific failure modes, such as concrete cone fracture or installer error, is critical for correcting issues before they escalate into disasters.

Getting to the Core of the Issue

The primary distinction really comes down to the final objective. Are you attempting to snap the fastener to discover its absolute limit, or are you merely applying a firm tension to confirm it is seated correctly?

1. Destructive Testing (The Ultimate Limit Method)

This procedure is exactly what the name implies. Destructive anchor testing involves physically loading the anchor to failure to directly measure its pull-out strength (Saleem, 2020; Saleem & Hosoda, 2021). We attach the hydraulic rig and exert force on the anchor until something gives way, usually with a loud, definitive crack, or the concrete substrate crumbles apart.

You typically perform this investigation before the actual building commences. For example, imagine you are retrofitting a heritage railway arch. The brickwork is ancient, and you have zero data regarding its strength. You have to sacrifice a few sample bolts using a tough tool like the Medium Heavy Tester - QualiAnchor M2050 PRO to see if the substrate is solid or just sandy dust.

We insist on this approach for renovation contracts. Just remember the consequence. That anchor is finished, the surrounding concrete is likely fractured, and you definitely cannot utilize that location again.

2. Non-Destructive Testing (The Proof Load Method)

This is the verified safety approach. While some NDT methods estimate anchor capacity using techniques like Schmidt hammer rebound and ultrasonic pulse velocity tests to detect defects (Saleem, 2020; Saleem & Hosoda, 2021), the standard for on-site verification is the proof load test. We apply a specific calculated pulling force, usually just enough to demonstrate stability, without ruining the fastener or the wall structure.

This allows us to identify improperly installed or defective anchors by correlating data with reduced pull-out strength, enabling evaluation in situ without compromising integrity (Saleem, 2020; Saleem & Hosoda, 2021; Sun et al., 2024).

Think about the anchor points for a window washer’s harness on a 40-story tower. You aren't trying to break the wall; you are just proving that specific point won't fail when a human life depends on it. This is exactly why we developed specialized kits like the Safety Harness Eye Bolt Tester - QualiHarness M2000. It is purpose-built to verify those critical safety points without causing damage.

While industry guidelines might suggest checking only a small percentage, honestly, if a human being is going to hang from a rope attached to that eyelet, 100% verification is the only way to rest easy at night. If the unit does not shift, it is approved, and the anchor remains secure and fully ready for service.

Destructive vs Non-Destructive Anchor Testing: The Comparison

Real-World Scenarios: Making the Call

Sometimes the chart isn't enough, so let's look at two specific situations we encounter constantly and which machine fits the bill.

Scenario A, The Scaffolding Safety Check

You have just installed hundreds of ties to hold up a massive scaffold structure. You obviously cannot rip them all out to test them. Here, you grab the Tie Scaffold Tester Kit - QualiScaffold M2000. It allows you to perform non-destructive testing on a random percentage (say, 5%) to ensure the crew utilized the correct torque and cleaned the holes properly.

Scenario B, The Heavy Industrial Retrofit

You are the engineer specifying a new chemical adhesive for heavy machinery in a factory. You need to know if this chemical bond is stronger than the concrete floor itself. You perform destructive testing on a mock-up utilizing the Heavy Duty Tester - QualiAnchor M2008 to pull that massive bolt until failure, proving the design works before the expensive equipment arrives.

What Occurs When an Anchor Fails?

We are going to say it. Witnessing an anchor fail is highly educational, provided it happens during a controlled test and not during a work shift. Failure typically results in a total loss of load-carrying capacity, which can compromise structural safety (Sun et al., 2024).

Our digital instruments help you pinpoint exactly what went wrong.

- Variables Matter: Sensitivity analyses show that anchor alignment and embedment length significantly influence pull-out strength, with alignment being the most dominant factor (Saleem & Hosoda, 2021). If your crew isn't drilling straight, the numbers will show it.

- Concrete Cone Failure: The metal component holds, but a substantial chunk of concrete breaks away in a conical shape. This usually implies the base material itself is too brittle.

- Pull-Out Failure: The bolt simply slides right out of the drilled void. Depending on the loading conditions and anchor type, this is a common failure mode (Barber & Herbert, 2017). This specific failure aggravates us because it is almost always due to human error! Clean out the drill holes, everyone!

- Steel Failure: The actual steel rod snaps under the tension. This occurs when the concrete is incredibly dense, stronger than the steel hardware itself.

Testing That Doesn't Waste Time with Qualitest

Here is our professional opinion. If configuring the testing apparatus takes longer than performing the actual inspection, the engineering is flawed. We have observed that a significant amount of machinery on the market is overly complicated, heavy, and frustrating to operate.

We have configured our product line to be different. We are talking about hardware that is versatile enough to manage destructive vs non-destructive anchor testing without making your technicians wish they had chosen a different career path.

Our Equipment That Fits the Budget

- For Standard Operations: The Universal Anchor Tester - QualiAnchor M2000 PRO is a dependable workhorse for loads reaching 25kN. It is the tool you grab when you need to verify fifty general fixings before the bricklayers arrive.

- For Heavy-Duty Demands: If you are verifying thick rebar or massive industrial bolts, the Medium Heavy Tester - QualiAnchor M2050 PRO handles up to 50kN, while the Heavy Duty Tester - QualiAnchor M2008 is a powerhouse that manages loads up to 145kN.

- The Versatile Option: The Digital Pull Tester - QualiAnchor M35+ is the unit laboratories prefer. It features a digital gauge that is incredibly precise and connects the gap between medium-duty testing and high-level accuracy.

Why You Should Partner with Us

Look, selecting the correct instrument shouldn't be a headache. But we have seen the alternative: cheap, flimsy testers that look great in a catalog but snap the first time they meet a real construction site. That isn't saving money; that is just buying future frustration.

At Qualitest, we don't just shift boxes. We supply machinery that satisfies strict international regulations (like ASTM and BS standards) while being tough enough to survive the dust, grit, and occasional rainstorm of a working job site. Partnering with us means you get equipment that actually functions, provides the defensible data you require, and keeps your crew safe.

Ready to stop guessing and start verifying? Examine our inventory of Anchor Test Systems here and locate the ideal apparatus for your upcoming contract.

References:

- Saleem, M. (2020). Assessing the load carrying capacity of concrete anchor bolts using non-destructive tests and artificial multilayer neural network. Journal of building engineering, 30, 101260.

- Saleem, M., & Hosoda, A. (2021). Latin Hypercube Sensitivity Analysis and Non-destructive Test to Evaluate the Pull-out Strength of Steel Anchor Bolts Embedded in Concrete. Construction and Building Materials.

- Barber, A., & Herbert, M. (2017). All-Suture Anchors: Biomechanical Analysis of Pullout Strength, Displacement, and Failure Mode. Arthroscopy : the journal of arthroscopic & related surgery : official publication of the Arthroscopy Association of North America and the International Arthroscopy Association, 33 6, 1113-1121.

- Lalik, K., Dominik, I., Gut, P., Skrzypkowski, K., Korzeniowski, W., & Zagórski, K. (2021). Non-Destructive Acoustical Rock Bolt Testing System with Intelligent Filtering in Salt Mine ‘Wieliczka’. Energies.

- Sun, B., Zhu, C., Zou, J., Wang, S., & Zeng, S. (2024). Variation characteristics of key dynamic measurement signals of anchor bolts with different anchorage qualities under pull-out loads. Alexandria Engineering Journal.
