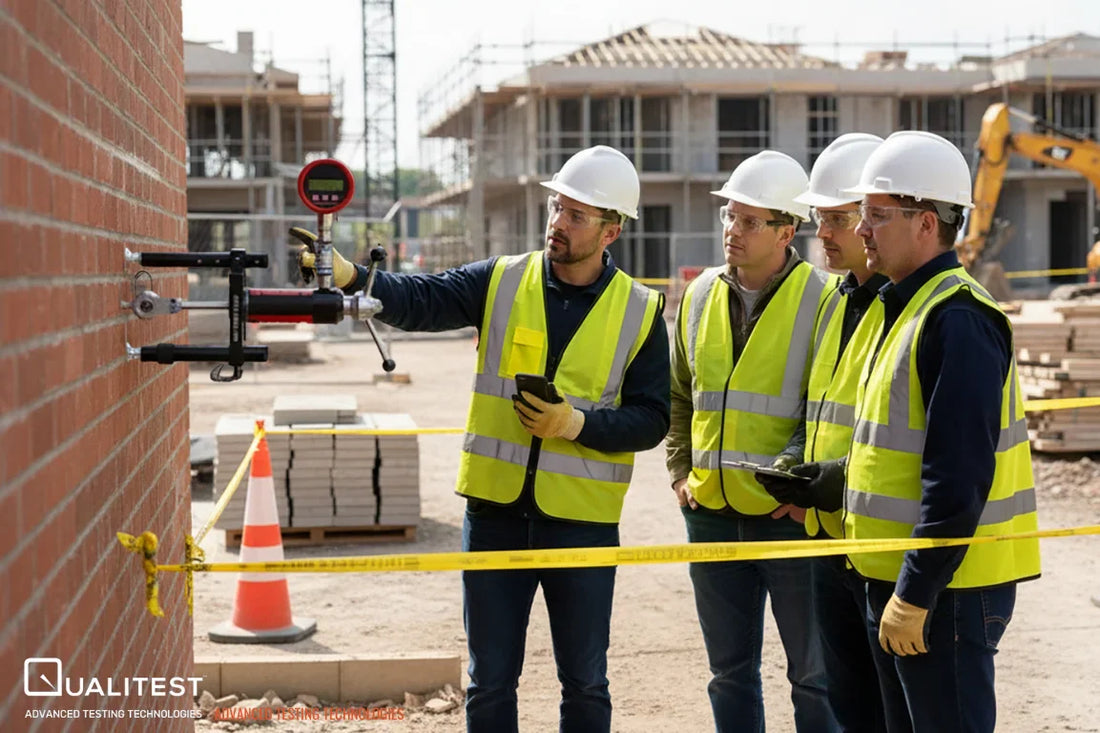

How to Choose Anchor Pull Tester Correctly

Ensuring the structural integrity of your projects is about having absolute confidence in your work. Whether you are certifying a high-rise facade or a safety line, the right data gives you peace of mind that every fastener is secure.

If you are looking for the best way on how to choose an anchor pull tester that fits your budget and workflow, you are in the right place. In our professional opinion, finding the perfect tool doesn't need to be complicated.

Here is a straightforward, research-backed guide to help you make a smart investment in your team's safety and efficiency.

Key Takeaways

- Define Your Goal: Determine if you need non-destructive proof loading for verification or destructive testing to find the ultimate breaking point.

- Match Capacity to Application: Avoid buying heavy equipment for light tasks. Standard units cover up to 25kN while civil engineering projects may require up to 145kN.

- Select the Right Interface: Choose digital gauges for precise reporting and compliance documentation or analog gauges for durable, battery-free field use.

- Prevent Common Errors: Use adjustable load-spreading bridges to avoid the "reaction cone" effect and ensure accurate readings on all substrates.

- Prioritize Versatility: Look for kits that include multiple adapters and bridges to handle various industries from scaffolding to elevator installation.

1. Identify Your Primary Objective: Proof vs. Destruction

Before allocating capital, you must clarify the actual application. This single decision dictates the mechanical force required.

Proof Load Testing (Non-Destructive)

This represents the majority of on-site verification work. You apply a calculated force (typically 1.5 times the safe working load) to confirm proper installation without extracting the fixture.

As noted in recent studies on non-destructive evaluation, methods that integrate pulse velocity or rebound hammer techniques can help identify installation defects without damaging the anchor (Saleem & Hosoda, 2021; Saleem, 2020).

Think of this like verifying a safety railing in a public shopping center; you need to ensure it holds a person's weight without ripping the railing out of the floor during the test itself.

Target Range: 0–25kN.

Failure Testing (Destructive)

This involves applying tension until component failure occurs. You are attempting to identify the ultimate breaking point of the substrate or a new bolt design.

Target Range: High-capacity units (50kN to 145kN).

Our Perspective:

There is often a temptation to purchase the largest capacity unit available simply to cover every possible future scenario. We generally advise against this strategy. Transporting heavy equipment up a ladder creates an unnecessary operational burden if that power is rarely required.

If your team anticipates handling both standard and heavy-duty tasks, we believe versatile units like the QualiAnchor M35+ represent the intelligent investment. It features a smart dual-capacity configuration that permits switching between standard pulls and higher loads in a single device, eliminating the need to carry excessive weight.

2. Quick Selection Guide: Which Model Fits Your Operations?

To simplify the process of learning how to choose an anchor pull tester, we have consolidated our product capabilities into this functional chart. We curated this list because deciphering technical manuals consumes time you could spend on site.

3. Match the Equipment to Your Specific Sector

Let's be realistic; a "universal solution" is often a myth in safety verification. Research confirms that compatibility with the specific substrate (concrete, masonry, or soil) is a primary factor in selecting the right tool (Saleem & Hosoda, 2021).

Elevator Installation

Technicians installing guide rails and hoisting gears must verify high-strength bolts in concrete shafts. Accuracy is non-negotiable here.

We recommend a digital tester with a peak-hold function to document compliance for safety inspectors with absolute clarity.

Solar Panel Installation

With the rapid growth of rooftop solar, we have noted a significant demand for testing anchors against wind uplift. Installers require a tester that is sufficiently lightweight to transport up a ladder yet durable enough to verify fixings in aging roof decks.

For instance, a team retrofitting a twenty-year-old warehouse; they absolutely had to confirm that the corroded corrugated decking could actually withstand the specific uplift force calculated by the structural engineer, rather than just guessing.

Scaffolding & Temporary Works

If you are inspecting scaffold ties, minimizing weight is critical. You require a lightweight tester that is safe to operate at height.  We suggest a dedicated Scaffolding Kit containing specific adapters for eye-bolts.

Civil Engineering & Concrete Repair

Verifying rebar bonded into concrete demands substantial force. A standard tester will not suffice.

Research by Giresini et al. (2020) highlights that accurate measurement in these scenarios often requires hydraulic testers with displacement control to ensure reliable results. You require a hydraulic powerhouse (like our M2008 series) capable of exerting up to 145kN to ensure the rebar has bonded effectively.

HVAC & MEP (Mechanical, Electrical, Plumbing)

For suspending heavy ductwork or pipe runs from ceilings, safety is paramount. We find compact testers are essential here.

As highlighted by Hajer (1997), utilizing compact, single-operator devices is advantageous when working in confined or crowded spaces, such as restricted ceiling voids or under mobile units.

4. Analog vs. Digital: The Practical Choice

When evaluating how to choose an anchor pull tester, the readout interface impacts your daily workflow.

- Analog Gauges: Durable, battery-free, and cost-efficient. We often hear the opinion that analog is "obsolete," but we disagree. For rapid pass/fail checks where detailed documentation is not required, they are exceptionally reliable and require zero maintenance.

- Digital Gauges: Mandatory for compliance-heavy projects. Our digital units offer superior precision (±0.5%). In our view, if you wish to eliminate manual paperwork, digital is the superior choice. Many of our models communicate with mobile applications, allowing you to generate and transmit a PDF report directly from the job site.

5. The "Bridge Span" Oversight

Frankly, this is the most frequent technical error we witness: technicians positioning the tester feet directly adjacent to the anchor. This invalidates the test. It creates a "reaction cone" that artificially reinforces the concrete, resulting in a misleadingly high reading.

Research indicates that the tester must allow for the assessment of factors influencing pull-out strength, including anchor alignment and substrate quality (Saleem, 2020; Cihan et al., 2023).

For masonry specifically, Giresini et al. (2020) emphasize ensuring the tester can accommodate different wall types and anchor positions, such as mortar joints versus bricks.

Consider a scenario where a technician tests an M12 bolt in a soft aerated block. If the tester feet sit too close, the masonry frequently crumbles under the pressure before the bolt even moves, rendering the test completely useless.

To prevent this inaccuracy, ensure your tester features an adjustable load-spreading bridge.

- Standard Bridges: Appropriate for solid concrete and masonry.

- Extended Bridges: Absolutely necessary for testing on hollow blocks or spanning across insulation to contact the structural wall beneath.

Why Source Your Equipment from Qualitest?

We recognize that you operate under pressure. We manufacture equipment that performs reliably without exhausting your budget. At Qualitest, we occupy the strategic position between "cheap imports" and "expensive premium brands."

Our Anchor Test Systems are complete, field-ready solutions. Whether you select the M2000 PRO for daily tasks, the QualiHarness for fall safety, or the high-capacity M2008 for heavy civil works, our kits arrive packed with every bridge, adapter, and gauge required in one durable case. Who has time to search for missing components?

Understanding how to choose an anchor pull tester is the initial step toward avoiding a structural failure. Do not leave your holding power to chance—or to overpriced equipment that depletes your project margins.

Ready to acquire tools that deliver results? View Our Cost-Effective Anchor Test Systems Here
