How to Perform Anchor Pull Test: Standards & Guide

We’re going to state it plainly: massive steel beams get the credit, but the fasteners are the real workhorses holding the project together.

At Qualitest, we believe verifying the grip of these components isn’t just a line item on a compliance sheet. It is the single factor standing between a secure build and a structural failure.

Whether you are auditing a new site, certifying safety points, or assessing a retrofit on an existing structure, knowing the testing protocols is critical. Below, we break down the essential regulations, the safety checks you cannot ignore, and the mechanics of the actual testing process (plus our perspective on what actually happens in the field).

Key Takeaways

- Standards Are Specific: There is no single rulebook. Structural jobs usually demand ASTM E488, while safety audits strictly follow OSHA 1910.140. Using the wrong code renders your data useless.

- Safety is Non-Negotiable: Testing involves massive tension forces. Standard PPE is mandatory, and clearing the zone is critical to prevent injury from flying debris or equipment recoil.

- Setup Dictates Accuracy: The placement of the tester legs is the most common failure point. If they bridge the concrete cone, you get false high readings.

- Context is King: A "failed" test tells a story. A clean pull-out usually points to a lazy installation, while a steel snap often means the bond was stronger than the metal itself.

- Durability Matters: Job sites destroy delicate gear. We recommend robust, purpose-built kits like the QualiAnchor series that can handle dust, mud, and rough handling.

The Regulations That Actually Matter

Before sending a technician to the site, you must identify the regulation in play. The anchor pull out test standard isn't static. It shifts based on location, substrate type (concrete, rock, or masonry), and the intended application.

We see teams defaulting to generic specs too often without considering the specific nuances of their project. As researchers point out, while structural codes specify installation methods, explicit standardized procedures often vary significantly depending on the anchor type and specific application (Popovski et al., 2020; Giresini et al., 2020).

To ensure coverage across North American sites, your strategy needs to align with the heavy hitters:

- ASTM E488 / E488M: The definitive benchmark for testing anchors in concrete. For general contractors verifying standard fixings under this code, versatile kits like the QualiAnchor M2000 PRO or the broader-range QualiAnchor M2050 PRO (up to 50kN) are often the standard issue.

- OSHA 1910.140 (Safety): For safety managers, this is the regulation mandating that anchorages for fall protection must support 5,000 lbs per employee. We strongly advise treating this as a life-safety requirement. This is specifically why purpose-built units like the QualiHarness M2000 exist to ensure safety eyebolts meet these strict personal protection codes without guesswork.

- CSA A23.3 Annex D (Canada): For crews operating in Canada, this is the essential code for concrete anchorage, sitting right alongside ACI protocols.

- ASTM D4435 (Geotechnical): The specialized standard for drilling into natural rock. This is crucial for mining and tunneling projects where you don't have the luxury of poured concrete.

- BS 8539: Although it originates from the UK, this comprehensive code is one of the most practical guides we’ve seen for selecting and installing anchors properly.

- ASTM C900: This method is distinct because it tests the concrete strength itself by extracting an embedded insert, rather than just testing the fastener’s holding power.

To put this in perspective, a structural team retrofitting balconies in Toronto must lock onto CSA A23.3 requirements. Conversely, a safety director auditing window-washing points on a New York high-rise is answering directly to OSHA 1910.140.

Sticking to the correct anchor pull out test standard is the only way to ensure your data is legally defensible. If you ignore these protocols, you risk generating inaccurate numbers. In our view, this creates a liability risk that no project manager wants to face.

Managing Risks Without Compromise

Before setting up the machine, acknowledge the hazard. Testing anchors involves immense tension and the potential for sudden breakage. We don’t care if you’ve done it a thousand times. Complacency is exactly when accidents occur.

We always insist on these precautions before any load is applied:

- Protective Gear: Wear safety glasses and a hard hat. If the concrete fails (cone failure), debris can project at high velocity.

- Secure the Tester: Ensure the equipment is tied off. If a bolt snaps suddenly, the testing rig can jump or fall, posing a serious risk to the operator.

- Clear the Zone: Keep non-essential personnel out of the immediate radius. You need a clear workspace in case of a fracture.

Step-by-Step: How to Perform Anchor Pull Test Procedures

Once the zone is clear and the standard is set, execution is key. For engineers asking how to perform anchor pull test sequences correctly, the details matter. The general procedure involves applying a tensile load to the installed anchor until failure or a set limit is reached, recording load-displacement behavior (Popovski et al., 2020; Lu & Sonoda, 2021).

Here is the effective workflow we recommend:

1. Visual Inspection and Site Prep

Don't just hook up and pull. Inspect the installation thoroughly before applying a single pound of force. Experimental studies confirm that anchor alignment is a critical factor influencing capacity (Giresini et al., 2020; Saleem & Hosoda, 2021). If the anchor is installed at a crooked angle, or if the concrete surrounding the head is spalling or cracked, do not test it.

For a deeper analysis, non-destructive testing methods like Schmidt hammer rebound or ultrasonic pulse velocity can actually help detect installation defects and predict pull-out strength before you even attach the rig (Saleem & Hosoda, 2021; Saleem, 2020).

Also, ensure the surface where the tester legs will sit is relatively flat. If you are working on an uneven brick wall or rough stone, you might need to shim the legs to ensure the pull direction remains perfectly straight.

2. Equipment Setup and Geometry

Connect the pull-tester to the anchor using the correct adapter (threaded rod, clevis, or slotted claw). If you are verifying temporary structures, using a dedicated kit like the QualiScaffold M2000 ensures your tie-offs meet specific scaffolding codes (like TG4:19) without improvising with the wrong adapter.

The most critical part of setup is the bridge placement. The legs of the tester must be positioned so they do not exert pressure on the "concrete cone" you are effectively trying to extract.

If the legs are too close to the bolt, they will push down on the concrete while you pull up. This artificially reinforces the substrate and gives you a falsely high reading. A solid rule is to space the legs at a distance equal to at least the embedment depth of the anchor.

3. Load Application

This is the moment of truth. When learning how to perform anchor pull test sequences, the rate of loading is everything. You cannot simply yank the handle or pump the hydraulic lever aggressively. The load must be applied in a smooth, continuous motion. Shock loading causes spikes in the data that don't reflect the true holding power.

- Proof Load Test: You apply force up to a specific percentage of the design load (often 1.5x or 2x the working load) and hold it for a set duration, usually 60 seconds. This is particularly vital for adhesive anchors. Research into time-to-failure reveals complex viscoelastic behavior, emphasizing the need for sustained load testing to predict long-term performance accurately (Ninčević et al., 2019).

- Destructive Test: You continue applying force until the anchor fails completely to determine its maximum capacity. For heavy structural work where forces exceed typical limits, you need the raw power of a unit like the QualiAnchor M2008, which can exert up to 145kN for serious proof loading.

4. Data Recording and Analysis

Record the gauge reading at the peak load. However, don't just watch the final number. Watch the behavior. Did the anchor creep or slip slightly before reaching the target? That "soft failure" is just as important as a clean snap.

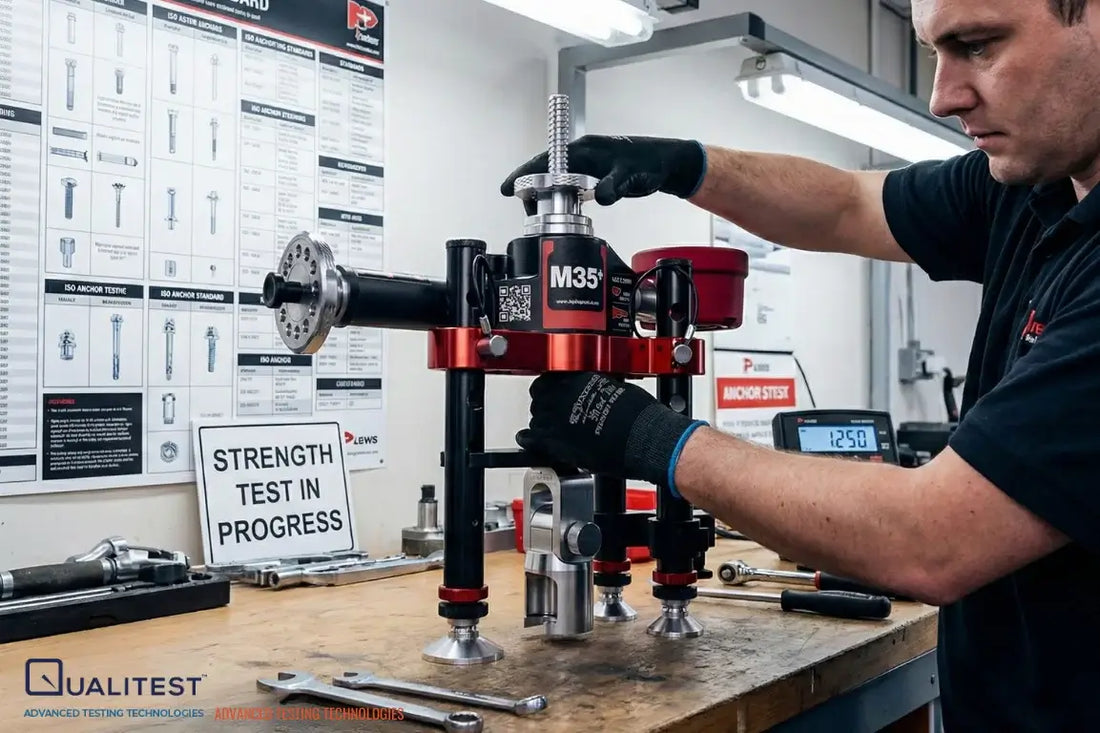

This is where advanced units like the Digital Pull Tester - QualiAnchor M35+ shine. Unlike an analog needle that just bounces around, a digital unit captures precise data points across a dual range (up to 65kN), allowing you to see the exact moment the anchor started to yield.

Interpreting the Data: Why Did It Fail?

Understanding how an anchor fails is just as valuable as the final gauge reading.

Literature indicates that failures often occur due to inadequate embedment depth, poor bond at the anchor-grout interface, weak surrounding material, or improper installation (Grindheim et al., 2023; Giresini et al., 2020; Lu & Sonoda, 2021). Different break patterns point to different problems on the job site.

Concrete Cone Failure

The anchor held, but a cone-shaped section of concrete ripped out of the substrate. This indicates the base material was weaker than the fastener itself.

Studies highlight that embedment length is critical here, with longer embedment generally increasing strength (He et al., 2022). We often see this result when an anchor is placed too close to an edge, or if it was set in "green" concrete that hasn’t fully cured yet.

Steel Failure

The metal rod or bolt snapped cleanly. This usually occurs when the embedment is deep and the concrete is incredibly strong, but the tensile capacity of the steel was exceeded. You will frequently see this with high-strength epoxy bonds where the chemical grip actually outlasts the metal rod itself. This is technically a "good" failure because it means the installation held up to the limit of the material.

Pull-Out Failure

The anchor slid out of the hole intact, leaving the concrete mostly undamaged. In our experience, this is almost always a sign of improper installation rather than a product defect. For instance, if an adhesive anchor comes out clean with no dust attached, the installer likely failed to blow out the drill hole before injecting the epoxy. Improper curing of adhesives is another common culprit identified in experimental studies (Saleem & Hosoda, 2021).

Upgrade Your Quality Control with Qualitest

We know that in the competitive North American construction market, you need tools that are precise, durable, and budget-friendly. You shouldn't have to choose between accuracy and cost.

At Qualitest, we provide advanced testing instruments engineered to handle the grit of active job sites because we know delicate lab equipment simply doesn't last in the real world. Our testers are built to satisfy rigorous industry standards, from ASTM E488 to OSHA safety checks.

If you are looking to replace outdated gear or need honest advice on the right equipment for your next project, we are here to help.

Explore our cost-effective Anchor Pull Testing solutions here and ensure your project stands on solid ground.

References:

- Popovski, D., Partikov, M., & Denkovski, D. (2020). PULL-OUT TEST FOR MECHANICAL ANCHORS. Scientific Journal of Civil Engineering. https://doi.org/10.55302/sjce2091099p

- Grindheim, B., Li, C., & Høien, A. (2023). Full-scale pullout tests of rock anchors in a limestone quarry focusing on bond failure at the anchor-grout and grout-rock interfaces. Journal of Rock Mechanics and Geotechnical Engineering. https://doi.org/10.1016/j.jrmge.2023.04.002

- Giresini, L., Puppio, M., & Taddei, F. (2020). Experimental pull-out tests and design indications for strength anchors installed in masonry walls. Materials and Structures, 53, 1-16. https://doi.org/10.1617/s11527-020-01536-2

- Ninčević, K., Boumakis, I., Meissl, S., & Wan‐Wendner, R. (2019). Consistent Time-to-Failure Tests and Analyses of Adhesive Anchor Systems. Applied Sciences. https://doi.org/10.3390/app10041527

- Saleem, M., & Hosoda, A. (2021). Latin Hypercube Sensitivity Analysis and Non-destructive Test to Evaluate the Pull-out Strength of Steel Anchor Bolts Embedded in Concrete. Construction and Building Materials. https://doi.org/10.1016/j.conbuildmat.2021.123256

- He, F., Liu, Z., Shi, K., & Yan, W. (2022). Lateral Pullout Tests and Modeling Failure Modes for Nongrouted Anchor Nails in Flexible Protection System. International Journal of Geomechanics. https://doi.org/10.1061/(asce)gm.1943-5622.0002324

- Saleem, M. (2020). Assessing the load carrying capacity of concrete anchor bolts using non-destructive tests and artificial multilayer neural network. Journal of building engineering, 30, 101260. https://doi.org/10.1016/j.jobe.2020.101260

- Lu, C., & Sonoda, Y. (2021). An Analytical Study on the Pull-Out Strength of Anchor Bolts Embedded in Concrete Members by SPH Method. Applied Sciences. https://doi.org/10.3390/app11188526
