Choose the Right Hardness Tester: Benchtop vs Portable

From a practical standpoint in manufacturing and quality assurance, material integrity is fundamental. You must have confidence that your materials will perform as expected. This confidence comes from accurate hardness testing, and it brings up the central issue we help our clients resolve every day: the benchtop vs portable hardness tester decision.

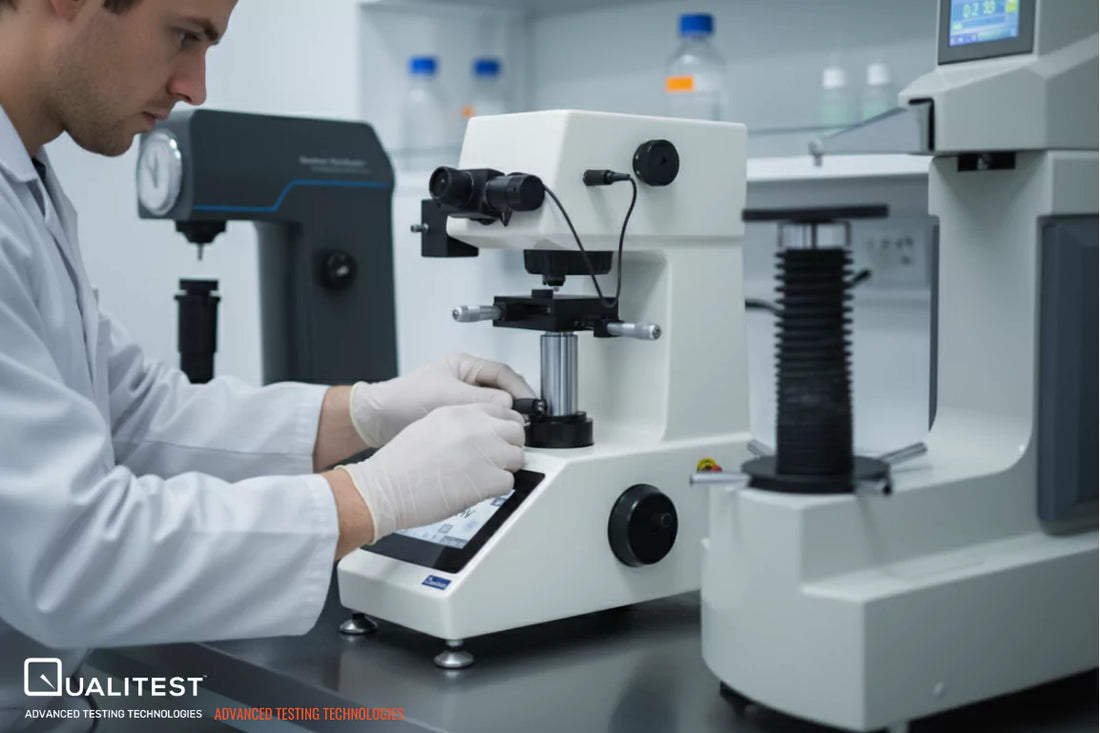

The Case for Benchtop Hardness Testers

For applications requiring the highest degree of certainty, a stationary testing system is the clear choice.

There is no substitute for the environmental control and stability of a lab-based unit when it comes to producing readings with unquestionable accuracy. The consistency you get from these machines is a benchmark for quality control.

Our offerings include proven systems like the versatile QualiRock Digital Rockwell Hardness Tester and the powerful QualiBrineller Brinell Hardness Tester, both staples in modern labs.

Where are these systems essential?

You will find stationary units operating in environments where precision is the primary driver of the workflow.

- Aerospace and Automotive Production: Used for verifying the specifications of crucial components, from engine parts to heat-treated structural elements.

- Heat Treatment Verification: Critical for confirming the success of processes like annealing, tempering, case hardening, and quenching on material samples.

- Weld Procedure Certification: Testing cross-sectioned weld coupons in a lab to certify a welding process, often requiring microhardness testing across the heat-affected zone (HAZ).

- Quality Control for Small Parts: Ideal for high-volume testing of smaller components like fasteners, bearings, cutting tools, and ammunition casings where consistency is key.

- Primary Metals Manufacturing: Deployed to confirm the properties of materials from initial casting to final shipment, ensuring batch-to-batch uniformity.

- Research and Development: Employed for in-depth material analysis where detailed and highly reliable data is needed.

The Rise of Portable Hardness Testers

We have seen a significant trend towards field-ready portable testers, driven by clear operational needs.

When the portable hardness tester vs benchtop discussion involves a component that is large, fully assembled, or already installed, portability becomes a functional necessity. An instrument like our widely used QualiTip series of Portable Leeb Hardness Testers allows your technicians to gather critical data directly at the source.

Where do these instruments provide the most value?

The ability to do portable hardness testing outside the lab creates efficiencies in numerous applications.

- Oil and Gas Operations: For example, a field technician needing to check a pipeline weld for potential embrittlement hundreds of miles from a lab would rely on a portable instrument.

- Power Generation Maintenance: Essential for testing large, in-situ components during plant shutdowns, such as turbine housings, rotors, and generator parts.

- Infrastructure and Fabrication: An inspector on a bridge construction site, for instance, would use a portable tester to confirm the hardness of structural steel welds on-site without destructive sampling.

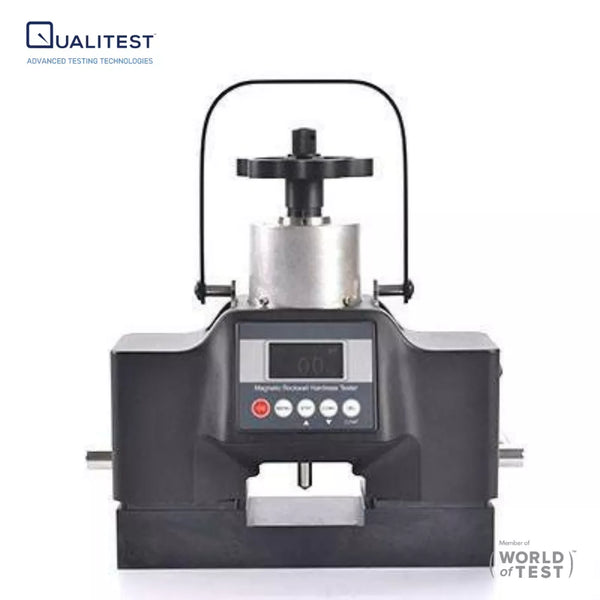

- Heavy Manufacturing: Ideal for performing checks on large castings, forgings, and machinery on the production floor, using models like the QualiMag Digital Magnetic Brinell & Rockwell Hardness Tester.

- Shipbuilding and Marine: Used for checking the hardness of ship hulls, large castings, and propeller shafts both during construction and for in-service maintenance checks.

- Incoming Material Verification: Quickly checking the hardness of large forgings or castings on a receiving dock to ensure they meet specifications before they are moved into production.

Testing Methods: A Key Factor in the Portable vs Benchtop Decision

Choosing the correct testing method is just as important as selecting the instrument, and it's a key part of the benchtop vs portable hardness tester evaluation.

- Stationary System Methods: These machines utilize foundational indentation techniques like Rockwell, Brinell, and Vickers. A system such as our MicroHV-1000 Series Micro Hardness Tester uses a precisely controlled indenter to create a mark that is then measured. These are the established, highly standardized methods for material certification.

- Portable Instrument Methods: Many portable units rely on the Leeb rebound method, a dynamic process that calculates hardness based on the rebound of an impact body. Others, including the Dynasonic Leeb/Ultrasonic Hardness Tester UCI-4000, use Ultrasonic Contact Impedance (UCI), a method we recommend for on-site testing of thinner materials or coated surfaces, such as checking the case-hardened depth on a gear tooth.

Related article: How to Use a Portable Hardness Tester: The Pro Guide

Material Considerations in the Benchtop vs Portable Hardness Tester Choice

The condition of the sample itself is a critical factor that directly influences the quality of the reading.

- Surface Preparation: To ensure a reliable reading from dynamic methods like Leeb, a smooth, properly prepared surface is necessary. A small investment in surface preparation yields much more trustworthy data.

- Material and Thickness: Very thin components or parts with specialized coatings often require the controlled environment of a stationary tester. However, the capabilities of modern portable instruments using the UCI method are expanding these on-site applications.

- Component Geometry: This is where portable testers offer an undeniable advantage. Their ability to adapt to curved surfaces, tight spaces, and complex assemblies is a major benefit for many industries. A perfect example is needing to measure the hardness inside the groove of a large, installed gear that simply cannot be moved to a lab.

A Direct Comparison: Portable Hardness Tester vs Benchtop

Qualitest: Solutions for Lab and Field

Ultimately, the decision in the benchtop vs portable hardness tester debate is guided by a central question: Where must your critical tests be performed? If the answer is within a controlled lab, a stationary system is the most dependable option. If your answer is on the factory floor or out in the field, a portable instrument will provide the necessary operational flexibility.

At Qualitest, our goal is to ensure you have the right tool for the job. We offer a complete range of both benchtop and portable hardness testers designed to meet various applications and budgets. We are committed to providing cost-effective, high-performing solutions to our clients across North America.

If you are still weighing your options, our team of technical experts is available to assist. Contact us today to discuss your specific testing needs, and we will help you identify the perfect solution for your business.
