Vicat Needle Apparatus

Vicat Needle Apparatus for Cement, Mortar, and Gypsum Testing

The Vicat Needle Apparatus is used to determine the setting time and standard consistency of cement and mortar in quality control and cement testing laboratories. The Vicat consistency test provides a reliable method for evaluating whether cement, mortar, and gypsum meet specified requirements for consistency and setting time.

These test methods determine the setting time of hydraulic cement using a Vicat needle. Two testing methods are available. Test Method A uses a manually operated standard Vicat apparatus as the reference method. Test Method B allows the use of an automatic Vicat apparatus that has demonstrated acceptable performance according to the qualification requirements of the applicable method.

Standard Consistency of Cement

Standard consistency refers to the consistency of cement paste that allows the Vicat needle or plunger to penetrate to a point 5 to 7 mm from the bottom of the Vicat mould under the specified test conditions. Determining standard consistency is an essential step in cement testing and setting-time evaluation.

QUALITEST - TESTING offers a complete range of Vicat Needle Apparatus systems, including manual, single-station semi-automatic, and fully automatic models with multiple testing stations. These systems are designed to support consistent and efficient cement, mortar, and gypsum testing in laboratory environments.

Applicable Standard

ASTM C191: Standard Test Methods for Time of Setting of Hydraulic Cement by Vicat Needle

Vicat Test Measurement Principle

The Vicat test measures the penetration resistance of a standardized needle or rod assembly into a fresh cementitious mixture at specified time intervals. It is used to determine the setting behavior of hydraulic cement, mortar, and gypsum as the material changes from a fluid or plastic state to a rigid, load-bearing structure.

When dry cement is mixed with water, the resulting paste initially has low resistance, allowing the weighted Vicat needle assembly to penetrate deeply into the specimen. As cement hydration progresses, calcium silicate hydrate (C-S-H) products form and develop an increasingly interconnected structure within the paste.

As this internal structure develops, the cement paste becomes progressively stiffer and offers greater resistance to needle penetration. The Vicat apparatus records the penetration depth at defined elapsed times, allowing the initial and final setting behavior of the material to be determined through direct physical measurement.

This testing method provides objective data for evaluating cement setting time, consistency, and hardening characteristics, supporting quality control and specification compliance in cement and construction-material laboratories.

 [ Fresh Mixture: Water + Hydraulic Cement ]
                          │
                          ▼
       [ Fluid Stage: Low-Viscosity Suspension ]
       • Needle drops completely through to the bottom plate
                          │
                          ▼
       [ Setting Stage: C-S-H Gel Network Multiplies ]
       • Internal shear yield resistance increases
       • Needle stops at 25 mm depth (ASTM) or 4 mm from bottom (EN)
                          │
                          ▼
       [ INITIAL SET: Cut-off Threshold for Placing and Finishing ]
                          │
                          ▼
       [ Hardening Stage: Dense, Interlocking Solid Grid ]
       • Needle tip penetrates ≤ 0.5 mm; outer circular ring leaves no mark
                          │
                          ▼
       [ FINAL SET: Material Reaches Full Initial Rigidity ]

Apparatus Specifications Across Standards

The Qualitest Vicat range supports all major international standard configurations across manual, semi-automated, and fully computerized multi-station systems:

Component / Parameter	ASTM Cement (ASTM C187 / C191)	European Cement (EN 196-3 / ISO 9597)	Mortar Method (ASTM C807)	Gypsum and Plaster (ASTM C472 / EN 13279-2)
Movable Rod Assembly Mass	300 ± 0.5 g	300 ± 1.0 g	400 ± 0.5 g	100 g to 300 g depending on probe
Consistency Plunger	10.00 ± 0.05 mm polished cylinder	10.00 ± 0.05 mm polished cylinder	Not applicable	Conical or cylindrical probe
Initial Setting Needle	1.00 ± 0.05 mm flat metal pin	1.13 ± 0.05 mm round pin (1.00 mm² area)	2.00 ± 0.05 mm rigid pin	Standardized conical needle attachment
Final Setting Attachment	1.00 mm flat needle tip	1.13 mm needle with 5.0 mm circular ring (0.5 mm recess)	Specialized broad plunger	Surface resistance verification tip
Standard Mold Geometry	60 mm top × 70 mm base × 40 mm conical ring	70 mm top × 80 mm base × 40 mm cylindrical or conical mold	80 mm top × 90 mm base × 40 mm brass mold	Specialized cylindrical plaster mold
Curing Environment	Moist storage cabinet (23.0 ± 2.0°C, RH ≥ 90%)	Temperature-controlled water bath (20.0 ± 1.0°C)	Controlled moist room	Controlled ambient laboratory room

Standardized Test Procedures

Normal Consistency Determination

Setting time runs require establishing the standard baseline water ratio first to prevent irregular, non-compliant readings.

       [ Mix Cement and Water at a Trial Ratio ]
                          │
                          ▼
       [ Pack Fresh Paste into the Mold & Strike Off Top Surface ]
                          │
                          ▼
       [ Attach 10 mm Plunger; Lower to Exact Surface Contact ]
                          │
                          ▼
       [ Release the Plunger Catch for Exactly 30 Seconds ]
                          │
                          ▼
       [ Evaluate Penetration Distance: ]
       • ASTM C187: Sinks 10 ± 1 mm below top surface
       • EN 196-3:  Stops 6 ± 2 mm above bottom base plate
                          │
                 ┌────────┴────────┐
                 ▼                 ▼
       [ Target Value Attained ]  [ Outside Target Range ]
                 │                 │
                 │ (Lock in %)     │ (Adjust water dosage, mix a
                 ▼                 │  fresh batch, and re-test)
       [ Proceed to Setting Time ] ▼
                                  [ Repeat Consistency Run ]

ASTM C187 Method: A 10 mm consistency plunger is positioned on the surface of the cement paste and released. The normal consistency is achieved when the plunger penetrates 10 ± 1 mm below the surface within 30 seconds.
EN 196-3 Method: Normal consistency is achieved when the plunger stops 6 ± 2 mm above the bottom glass plate, corresponding to a penetration depth of 34 ± 2 mm.

Initial and Final Setting Time Determination

Once the standard consistency water percentage is locked in, a fresh batch is mixed. Elapsed time is tracked starting the second dry powder contacts water.

       [ Prepare Fresh Paste at Normal Consistency ]
       (Time Zero = Point of Liquid-Powder Contact)
                          │
                          ▼
       [ Position Mold in Prescribed Curing Setup ]
       (ASTM: Moist Cabinet / EN: Submerged Bath)
                          │
                          ▼
       [ INITIAL SETTING DETECTION ]
       • ASTM C191: Needle settles to 25 mm depth
       • EN 196-3:  Needle stops 4 ± 1 mm above base plate
                          │
                          ▼
       [ FINAL SETTING DETECTION ]
       • ASTM C191: Needle leaves zero complete circular mark
       • EN 196-3:  Pin enters 0.5 mm; ring leaves no trace

Initial Setting Time (ASTM C191): The initial setting time is reached when the 1 mm Vicat needle penetrates to a depth of 25 mm into the cement paste.
Initial Setting Time (EN 196-3): The initial setting time is reached when the 1.13 mm needle stops 4 ± 1 mm above the glass base plate.
Final Setting Time (ASTM C191): The final setting time is identified when the 1 mm Vicat needle no longer produces a complete circular impression on the surface of the cement specimen.
Final Setting Time (EN 196-3): The final setting time is reached when the 1.13 mm needle with the 5 mm annular attachment penetrates 0.5 mm into the cement paste, while the circular cutting ring no longer leaves an impression on the specimen surface.

Test Execution and Equipment Workflows

       [ SELECTING THE TEST EXECUTION METHOD ]
                          │
           ┌──────────────┴──────────────┐
           ▼                             ▼
  [ METHOD A: Manual Testing ]  [ METHOD B: Automated Testing ]
  • Manual drop releases        • Fully programmable drop cycles
  • Manual needle wiping        • Integrated cleaning station
  • Visual scale reading        • Electronic displacement logging
           │                             │
           │                             ▼
           │                    [ AUTOMATED CONFIGURATIONS ]
           │                    • Vicat306: Paper Drum Chart
           │                    • Vicat360: Color LCD + LVDT
           │                    • QualiVicat™ II: Auto-Clean
           │                    • Multi-Station: Multi-Bay PC
           │                             │
           └──────────────┬──────────────┘
                          │
                          ▼
       [ COMPLIANT TEST REPORTING & CURVE GENERATION ]

Method A: Manual Reference Testing

Manual Vicat Needle Apparatus / Consistency Tester: The manual Vicat apparatus serves as the reference setup for cement and construction-material testing according to ASTM C187, ASTM C191, ASTM C472, and EN 196-3. During testing, the operator manually releases the sliding rod at specified time intervals, reads the penetration depth from the graduated millimeter scale, and cleans the needle tip manually between measurements.

Method B: Automated Vicat Testing Workflows

Vicat306 – Single-Station with Paper Drum Recorder: Automates needle penetration at preset time intervals and records penetration depth mechanically on a rotating paper drum chart, providing a physical record of the test results.
Vicat360 – Single-Station with Color LCD Display: Uses an electronic linear variable differential transformer (LVDT) sensor to monitor needle displacement. Penetration data and curves are displayed in real time on the color LCD screen and can be exported using dedicated software.

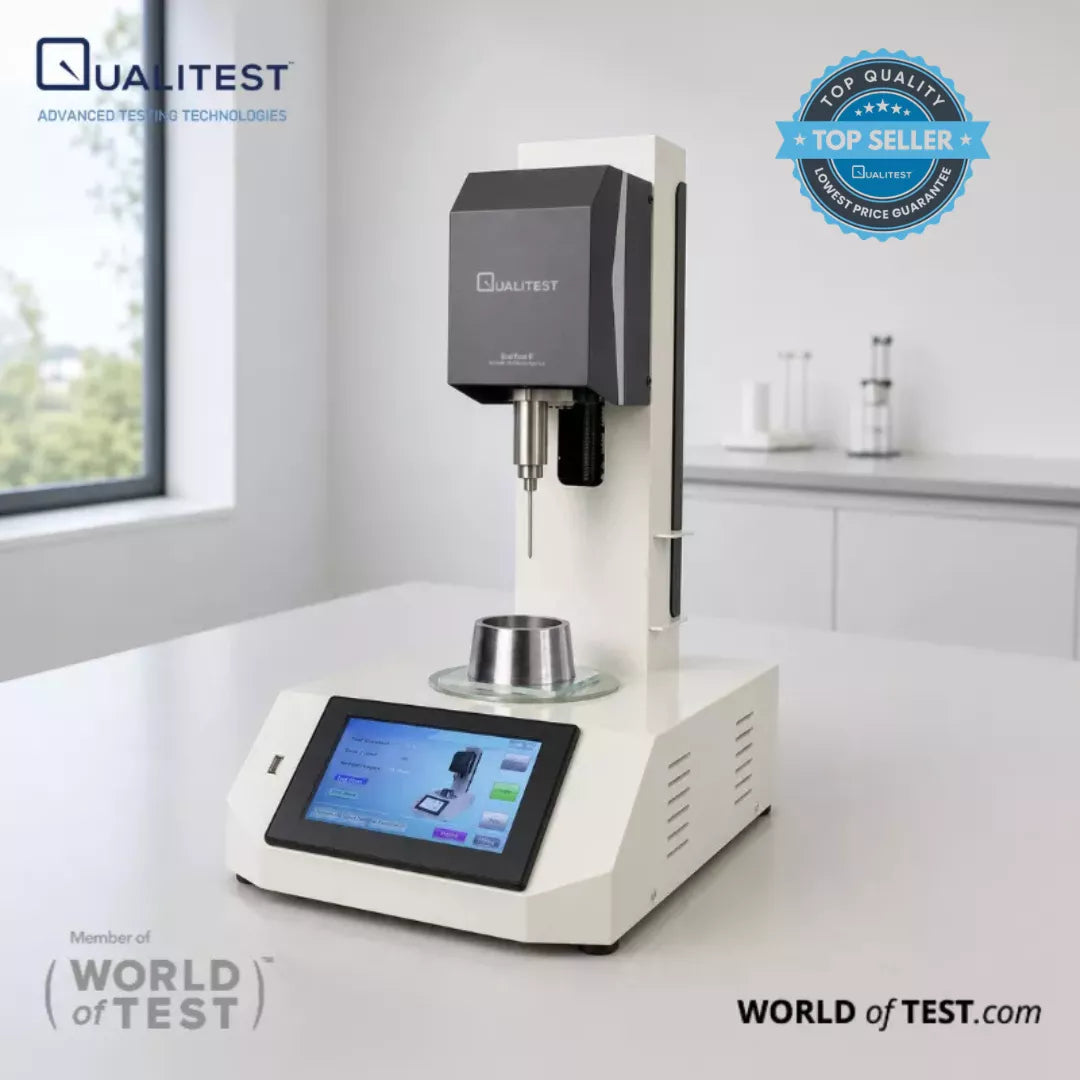

QualiVicat™ II – Single-Station Automated Workstation: Features motorized needle indexing to change the penetration location on the specimen after each testing cycle. An integrated cleaning and drying brush automatically cleans the needle tip between measurements, supporting unattended testing from the initial mix through the final setting stage.
Multi-Station PC-Controlled System – High-Throughput Testing: Designed for laboratories performing multiple tests simultaneously, this system controls several testing stations through integrated PC software. Built-in temperature-controlled water baths help maintain specified testing conditions for cement (EN 196-3, ASTM C191), concrete admixtures (EN 480-2), mortar (ASTM C807), and gypsum plasters (EN 13279-2, ASTM C472).
