Automatic Vicat Needle Apparatus – Multi Station PC-Controlled for Cement & Gypsum

QUALITEST-TESTING offers a comprehensive range of advanced, PC-controlled, multi-station Automatic Vicat Needle Apparatus Systems designed for Cement and Gypsum Testing Laboratories. These automated Vicat testing systems support demanding testing requirements in accordance with applicable ASTM, EN, and DIN standards.

Choose an Automatic Vicat Needle Apparatus based on your testing volume, laboratory requirements, budget, and applicable testing standards. QUALITEST-TESTING can help you identify the appropriate system configuration for accurate, efficient, and reliable Vicat testing.

Available Models:

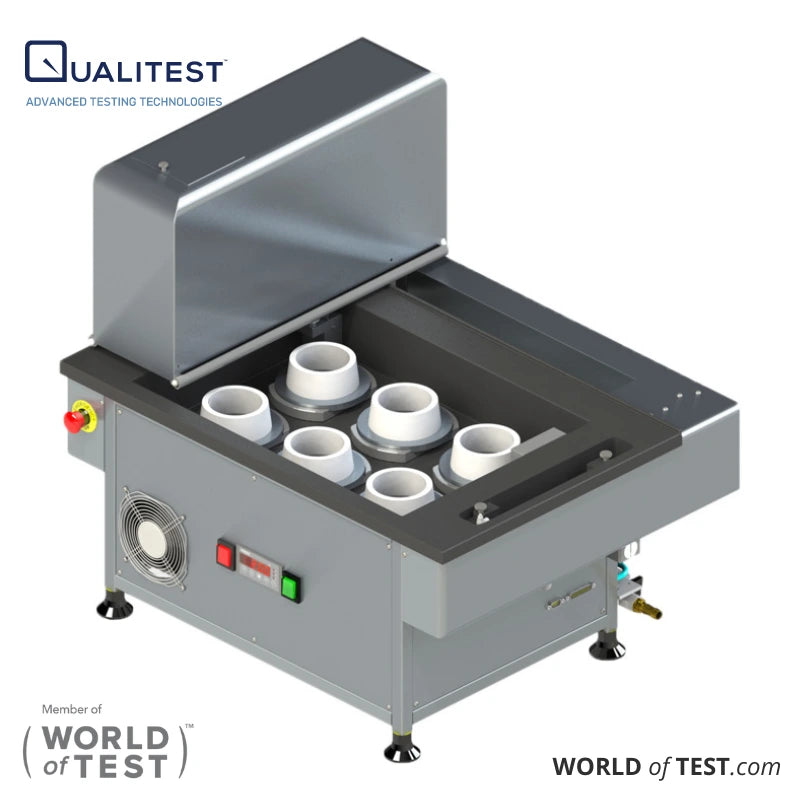

• AutoVicat-366 6-Station Automatic Vicat Needle Apparatus

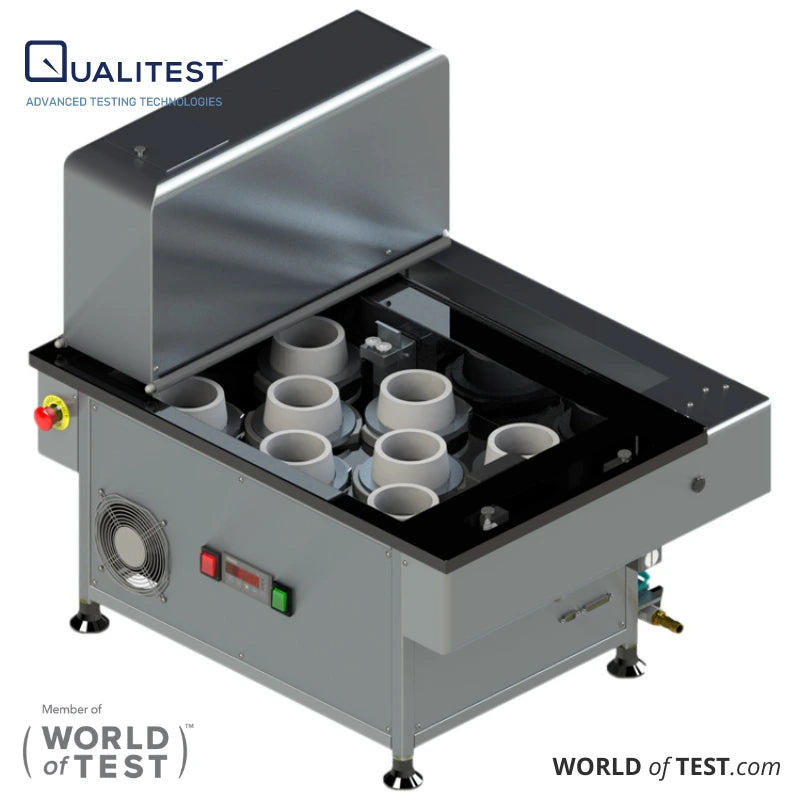

• AutoVicat-367 8-Station Automatic Vicat Needle Apparatus

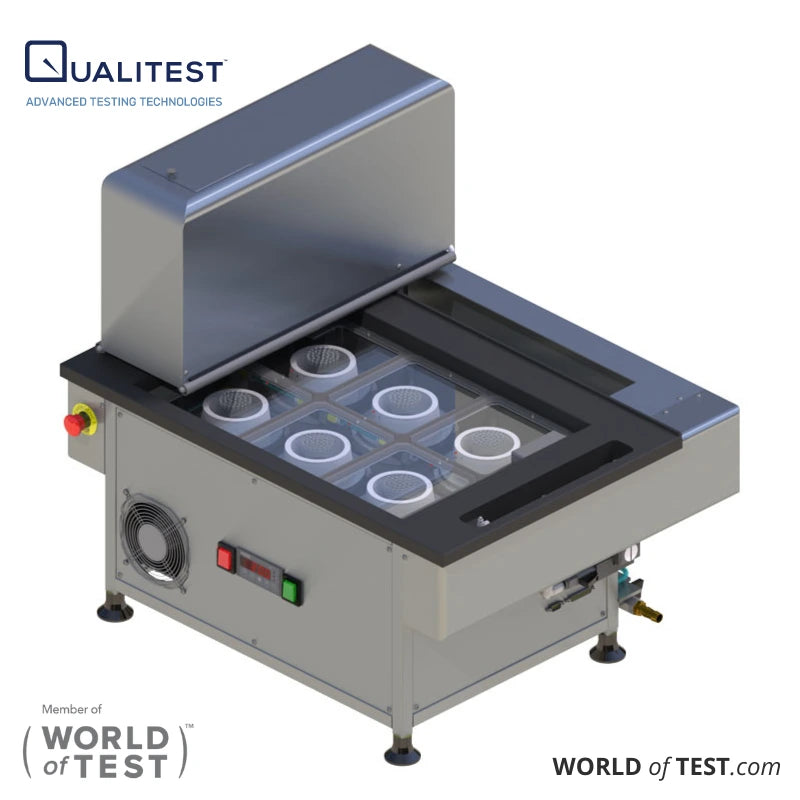

• AutoVicat-366-EN-ASTM 6-Station Automatic Vicat Needle Apparatus (Combo EN-ASTM Model)

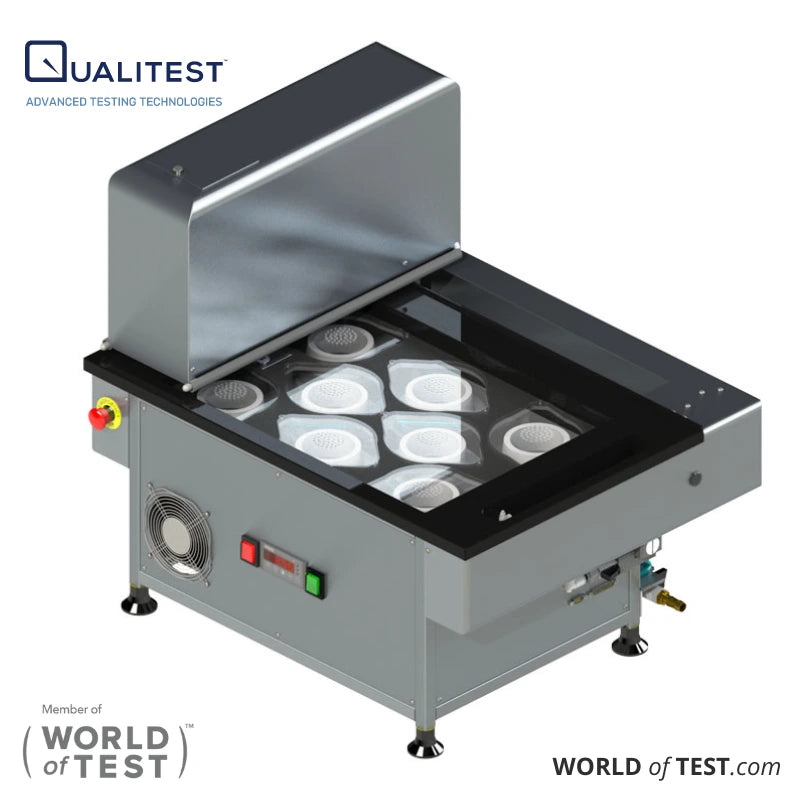

• AutoVicat-367-EN-ASTM 8-Station Automatic Vicat Needle Apparatus (Combo EN-ASTM Model)

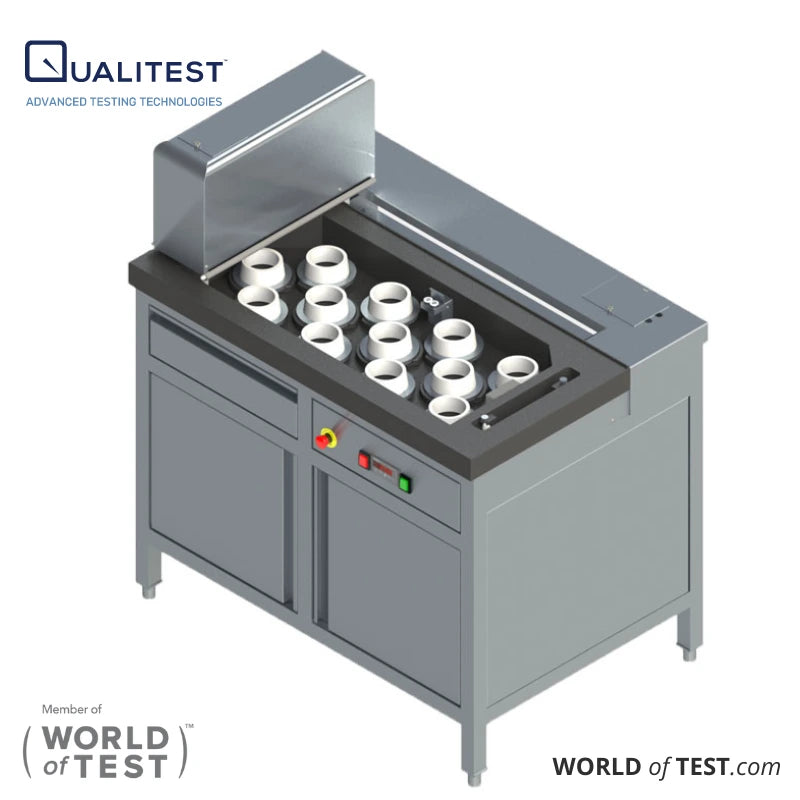

• AutoVicat-368-EN 12-Station Automatic Vicat Needle Apparatus

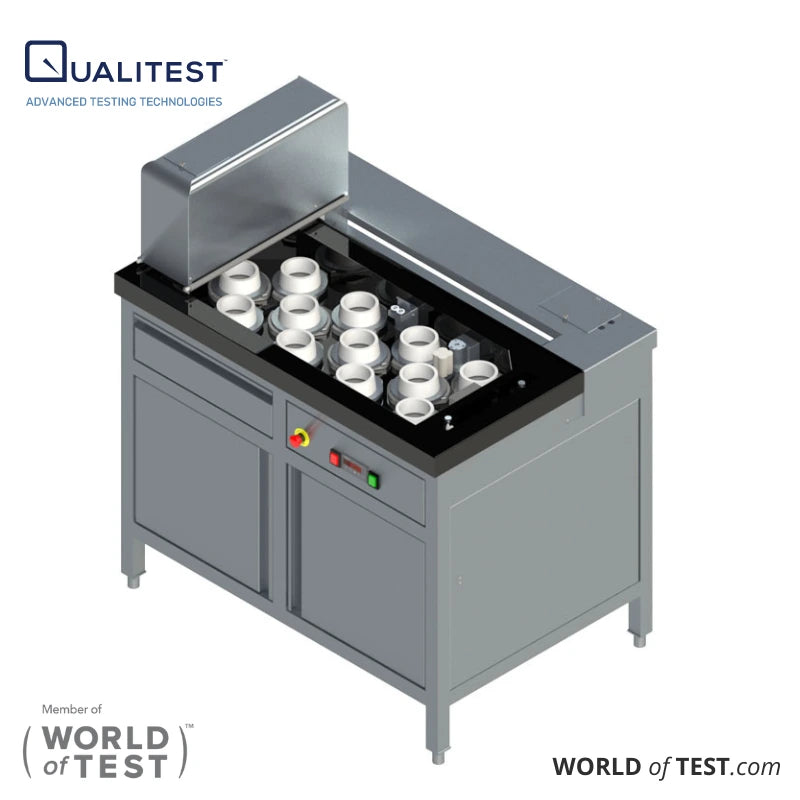

• AutoVicat-368-GZ 12-Station Automatic Vicat Needle Apparatus (For Gypsum & Cement Paste)

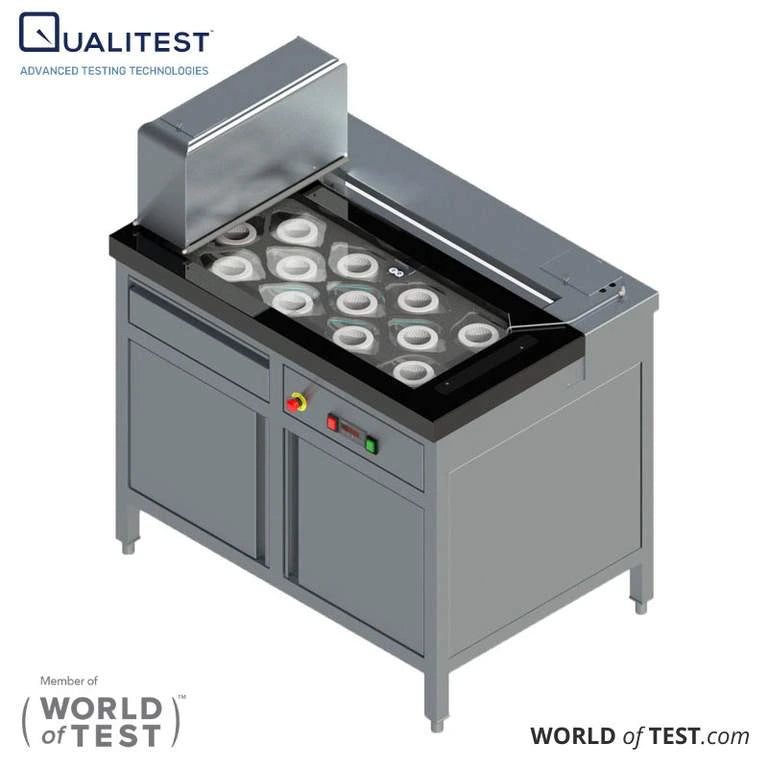

• AutoVicat-368-ASTM 12 Station Automatic Vicat Needle Apparatus (For Cement)

Standard Vicat Testing Theory and Parameters

Manual Vicat setting-time tests can be affected by operator reading and timing variations. The standard testing principle measures the penetration depth of a steel needle into cement or gypsum paste as the material gradually develops resistance during hydration and setting.

For consistent and repeatable testing, a PC-controlled Automatic Vicat Needle Apparatus, such as the Qualitest AutoVicat Series, automates needle penetration, electronic depth measurement, timing, and data recording.

International testing standards, including ASTM C191, EN 196-3, DIN 1168, EN 13279-2, and EN 480-2, define key stages and parameters throughout the setting process:

• Normal Consistency: Determines the required water-to-powder ratio to achieve the specified consistency before setting-time testing begins.

• Initial Setting Time: Identifies the stage when the needle no longer penetrates to the specified depth, with the penetration typically stopping approximately 6 ± 3 mm above the base plate according to the applicable procedure.

• Final Setting Time: Determines when the material has hardened sufficiently that the needle produces little or no visible penetration, according to the requirements of the applicable standard.

These testing procedures apply to hydraulic cement as well as plaster and gypsum-based materials. To support different testing requirements, Qualitest offers versatile combination EN-ASTM models, including the AutoVicat-366-EN-ASTM and AutoVicat-367-EN-ASTM, allowing laboratories to perform testing for multiple standards through a single automated system.

Operational Advantages of Automated Vicat Systems

Manual Vicat testing requires consistent operator attention for timing, needle positioning, penetration measurement, and result recording. A PC-controlled Automatic Vicat Needle Apparatus automates these steps using motorized mechanisms, electronic sensors, and programmable testing sequences to improve testing consistency and reduce manual intervention.

Automated Vicat systems can also increase laboratory productivity, particularly in quality control environments where multiple samples require regular setting-time evaluation. Multi-station configurations allow several specimens to be tested within the same workflow while maintaining controlled testing parameters.

Automated Testing Capabilities

Multi-Station Parallel Testing

Multi-station Automatic Vicat systems allow laboratories to evaluate several samples within the same testing cycle. The Qualitest range includes the 6-station AutoVicat-366, 8-station AutoVicat-367, and 12-station AutoVicat-368-EN/ASTM. The 12-station configuration places the measuring stations within a rectangular testing bath and integrates them with a stainless steel work table for convenient laboratory operation.

Multi-Axis Programmable Motion and Environmental Control

Advanced Vicat systems provide programmable side-to-side, vertical, and rotational movement for automated sample testing. For ASTM C191 procedures, selected configurations can perform multiple programmed penetrations at defined intervals throughout an extended testing period. Models such as the AutoVicat-366 can also be configured with an optional cooling unit to help maintain the required temperature conditions during testing.

Automated Continuous Operation

Selected models, including the AutoVicat-368-GZ, are designed for automated testing of gypsum and cement paste. Features such as motorized sample positioning, needle-cleaning wipers, programmable test sequences, and adjustable timing support continuous operation with minimal manual intervention. Automated penetration and electronic measurement also reduce dependence on visual scale readings and manual recording.

Performance Comparison: Manual Testing vs. PC-Controlled Systems

Mechanical Interpretation of Vicat Penetration

Vicat penetration testing provides more than a simple measurement of needle depth. It helps characterize the setting and hardening process by tracking changes in the resistance of cement or gypsum paste as hydration progresses. As the material reacts with water, its internal structure develops and resistance to needle penetration gradually increases.

This measurable relationship provides laboratories with objective numerical data for evaluating setting behavior rather than relying solely on visual observations or subjective estimates. The resulting data can support research and quality control activities, including the evaluation of chemical admixtures, mineral additives, and material formulations.

With an Automatic Vicat Needle Apparatus, penetration measurements can be performed at programmed intervals, recorded electronically, and organized for further analysis. This improves data traceability and helps laboratories maintain consistent testing procedures across multiple samples and batches.

Alternative and Complementary Testing Methods

Although Vicat needle penetration remains a widely used reference technique for determining setting characteristics, laboratories may also use complementary methods to obtain additional information about cement and gypsum systems. These techniques can include electrical resistivity measurements, ultrasonic testing, and temperature monitoring through semi-adiabatic calorimetry.

Each method evaluates different physical or chemical characteristics of the material. Electrical measurements can track changes in conductivity or resistivity, ultrasonic techniques can monitor changes in wave transmission, and calorimetry can provide information related to heat development during hydration.

These alternative techniques can complement conventional Vicat testing, but their measurements are not direct substitutes for the penetration parameters defined by applicable testing standards. For laboratories requiring standardized setting-time measurements, an Automatic Vicat Needle Apparatus provides direct penetration data that can be documented and compared according to the relevant testing procedure.

Systems such as the AutoVicat-368 can further support high-volume testing by automating sample positioning, needle penetration, measurement intervals, and digital data recording, helping laboratories maintain consistent and traceable Vicat testing workflows.
