Ultrasonicator Extractor
Ultrasonicator Extractor
An Ultrasonicator Extractor uses probe-driven cavitation to accelerate solvent penetration, enhance mass transfer, and maintain consistent extraction conditions across runs. Cavitation promotes intense molecular motion, allowing solvents to access target compounds more efficiently than passive soaking or basic stirring methods.

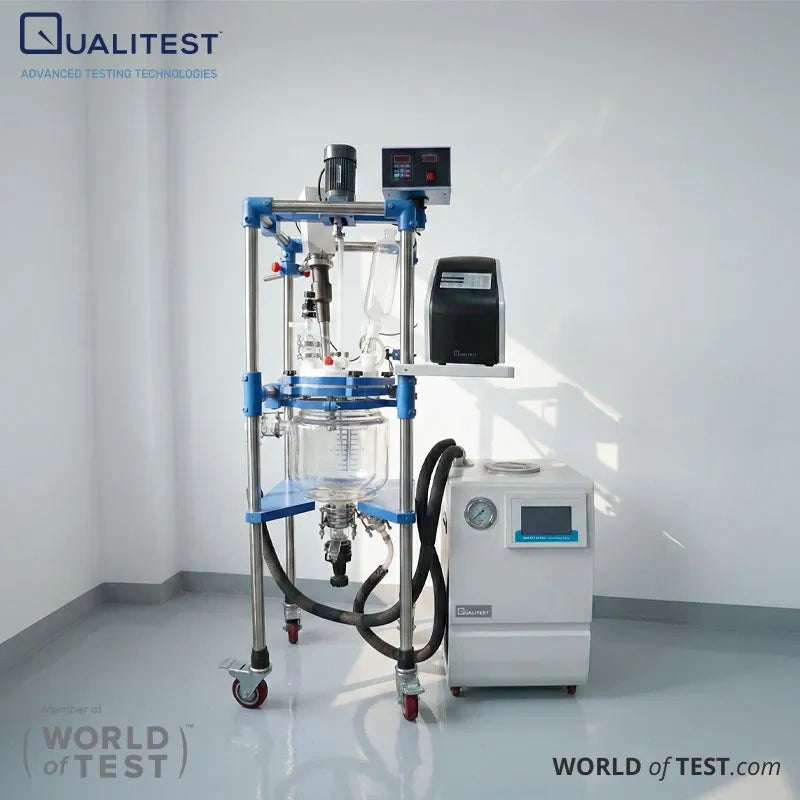

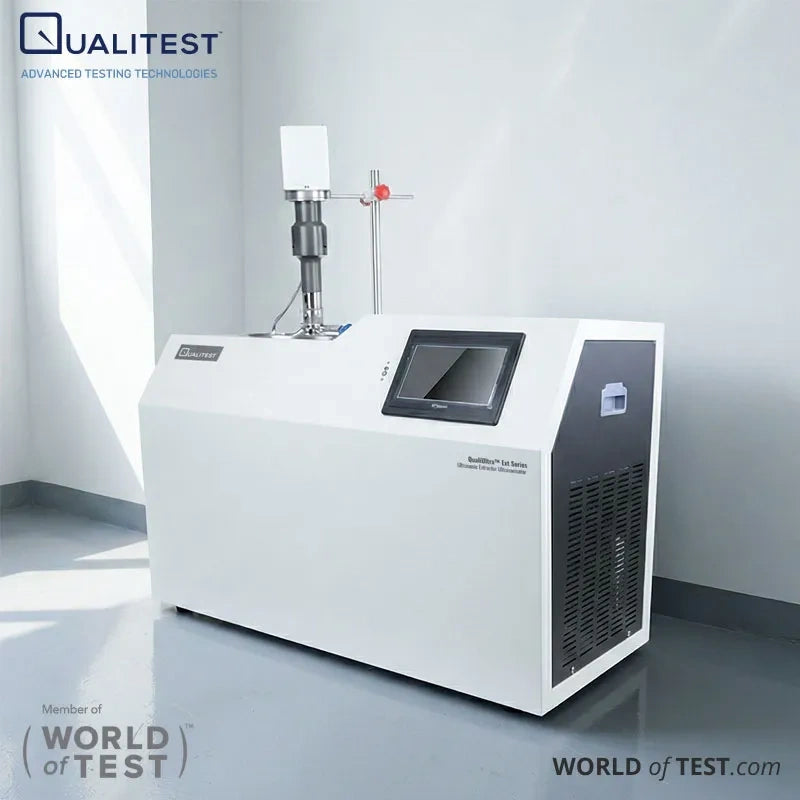

QualiUltra™ provides two extractor series designed for different scales. The QualiUltra™ Ext Series is tailored for benchtop, constant-temperature extraction with precise parameter control and traceable process curves. The QualiUltra™ iExt Series supports reactor-scale operations, featuring integrated stirring and cooling systems suited for pilot-scale batches.
Ultrasonicator Extractor Applications
Botanical and Natural Product Extraction
Cavitation disrupts plant cell structures and enhances solvent access, supporting efficient recovery of active compounds from herbs, roots, and other botanical materials. Temperature control helps preserve heat-sensitive components during extended processing.
Food and Flavor Processing R&D
Ultrasonication aids in extracting flavors, pigments, and functional ingredients from food-grade sources. Continuous stirring keeps solids evenly dispersed for improved repeatability, while cooling systems help maintain stability when working with volatile compounds.
Pharmaceutical and API Intermediate Research
Ultrasonic-assisted extraction accelerates solvent screening and method development. Controlled mixing ensures consistent interaction between solvent and solid materials, improving reproducibility across trials and supporting smooth transition toward larger-scale processes.
Environmental and Analytical Sample Preparation
Ultrasonication facilitates extraction from soils, sediments, and particulate samples where organic compounds or contaminants must be transferred into a solvent phase. Adjustable power settings and uniform mixing improve preparation consistency, while cooling reduces loss during longer cycles.
Chemical Processing and Dispersion Tasks
Extractor systems assist in slurry conditioning and dispersion stages linked to extraction or reaction workflows. Sonication minimizes particle agglomeration, and continuous mixing maintains uniform distribution, supporting more stable separation in downstream processes.
Comparison Table: iExt vs Ext
| Category | QualiUltra™ Ext Series | QualiUltra™ iExt Series |
|---|---|---|
| Primary use case | Constant-temperature solvent extraction and reaction support on the bench | Reactor-scale extraction and pilot batches with mixing and cooling support |
| Scale range | 250 mL / 500 mL / 1000 mL vessels | 5 L to 50 L reactors (with model options) |
| Mixing approach | Focused probe sonication + constant-temperature bath stability | Probe sonication + integrated stirring for uniform reactor conditions |
| Temperature strategy | PID temperature control and dual-channel monitoring (reaction + bath) | Cooling circulation support by model; designed to manage temperature rise at scale |
| Repeatability features | Run curve logging and USB export; real-time frequency tracking | Stable process control through stirring speed control and tuned power ranges |
Theory and Method
How Ultrasonic-Assisted Extraction Works
Ultrasonic-assisted extraction is driven by cavitation generated at the probe tip through high-frequency vibration. The rapid formation and collapse of microbubbles create localized shear forces and micro-jets that disrupt solid structures and improve solvent interaction. In larger systems, stirring maintains a uniform suspension, while cooling circulation helps keep temperature within a controlled range when working with heat-sensitive compounds.
Typical Workflow
A standard process begins by loading the solvent and material into a vessel or reactor, followed by stabilizing the desired temperature. Ultrasonic power, total runtime, and pulse intervals (if available) are then configured, with temperature monitored throughout the cycle. After completion, solids are separated through filtration or centrifugation, and the resulting extract proceeds to concentration or analytical stages.
Why Choose QualiUltra™ for Ultrasonicator Extractor Work?
- Clear scale transition from benchtop to pilot systems, covering 250 mL–1000 mL constant-temperature units and 5 L–50 L reactor-based extractors
- Enhanced extraction control through temperature regulation, including PID control and dual-channel monitoring on the Ext Series, along with model-based cooling support on the iExt Series
- Consistent processing at higher volumes with integrated stirring that keeps solids evenly dispersed
- Strong repeatability and documentation features, including curve logging and USB data export on the Ext Series for method transfer and recordkeeping
