Magnetic Hardness Testers: What They Are & How They Work

Testing the hardness of a giant steel component shouldn't be a logistical nightmare.

For years, quality control has often meant choosing between hauling massive parts to a stationary lab tester or forgoing the test altogether. From our perspective, forcing a choice between good logistics and good quality control is a compromise you shouldn't have to make.

For the jobs you can't bring to the lab, there's a better way.

What is a Magnetic Hardness Tester and How Does It Work?

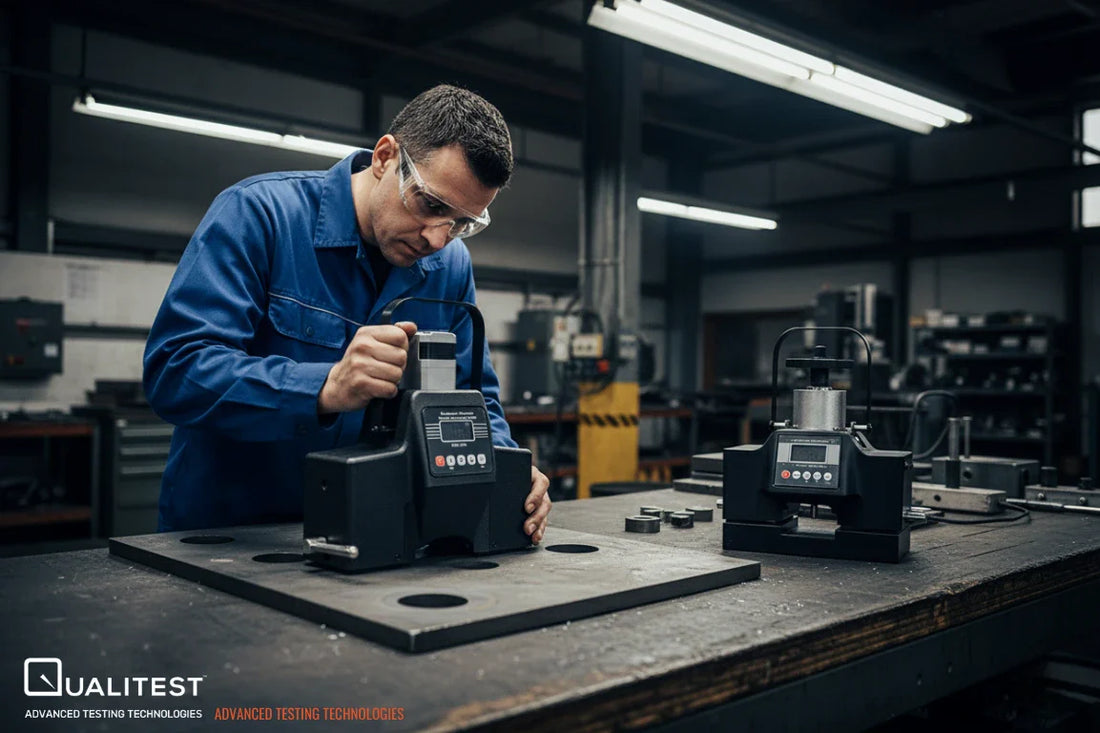

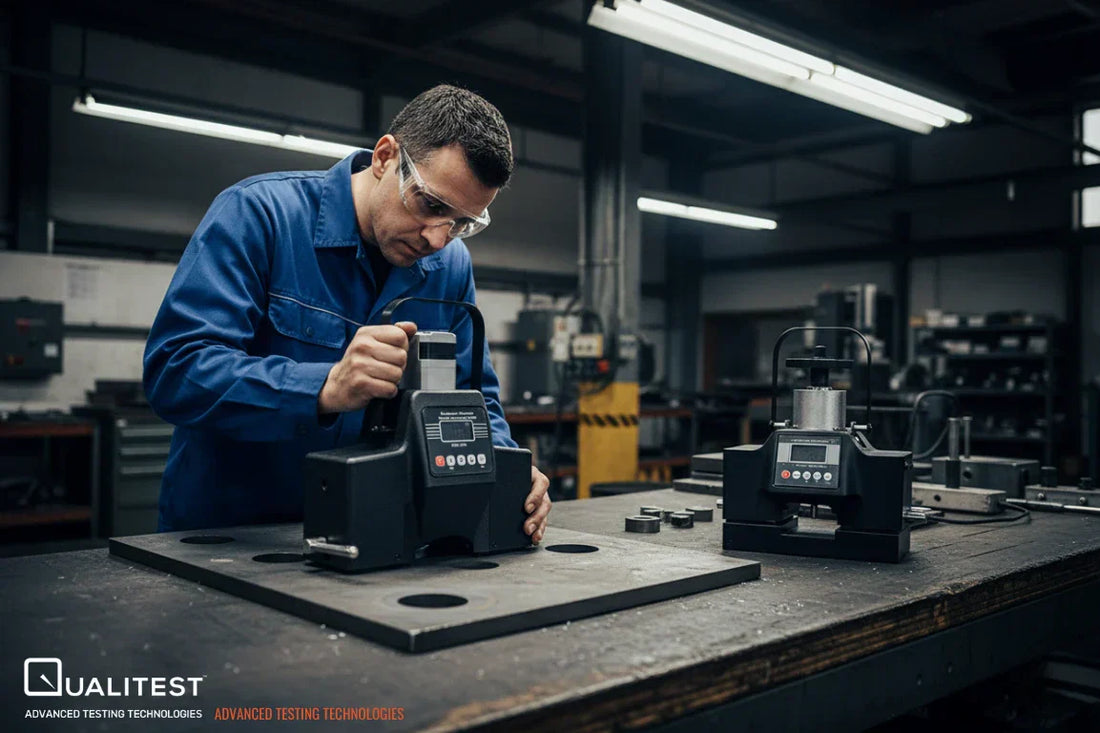

First, what is a magnetic hardness tester? It is a portable instrument designed to measure the hardness of ferrous materials like steel and iron. Its defining feature is a powerful magnetic base that clamps the device firmly onto large, heavy, or installed components.

Frankly, we believe this single feature is what transforms it from just another tester into a genuine problem-solver for so many industries. This portability allows for accurate, on-site testing without needing to move the part.

With that covered, let's get into the specifics of how does a magnetic hardness tester work. The thinking behind it is based on the same proven principles used in lab environments, such as the Rockwell and Brinell methods. The operational sequence is quite efficient:

1. It Creates a Secure Anchor Point. The tester is positioned on the material, and the magnetic base is engaged. It grips with an exceptional amount of force, which we know is the foundation for an accurate reading.

2. It Applies a Calibrated Force. A hardened indenter is then pressed into the material’s surface with a specific, pre-set load.

3. An Indentation is Formed. This action creates a small, precise indentation. The dimensions of this mark directly correlate to the material's hardness.

4. The Hardness Value is Calculated. The instrument measures the indentation and provides a hardness value. A digital model like the QualiMag-DR will show this right on its screen.

Key Advantages of This Approach

Having seen instruments from our QualiMag series in action with our clients, we can point to a few key benefits that consistently make a difference:

- True Portability. In our view, the primary advantage is the ability to test large, immovable components right where they are, a core feature of what a magnetic hardness tester is designed for.

- Straightforward Operation. We believe the testing process should be as direct as possible. The magnetic base makes setup fast and secure, streamlining the entire procedure for a single operator.

- Reliable Accuracy. While benchtop machines are the standard for lab-controlled conditions, we are confident in the performance of our portable units. They deliver precise, trustworthy results in the field.

- Preserves Component Integrity. The indentation created is minimal and typically considered non-destructive. This is a critical factor for our customers, as it protects the value and finish of their products.

- Cost-Effectiveness. By removing the need for sample cutting or transportation of heavy parts, these testers reduce labor hours, machine downtime, and potential damage, leading to significant cost savings.

Common Industries and Applications

Because of their flexible nature, professionals across a number of demanding industries rely on these instruments once they understand how a magnetic hardness tester works in the field. Here are some real-world examples:

- Oil & Gas: A field engineer can take a tester out to a remote pipeline to verify the hardness of a critical weld on-site, confirming it meets safety specifications without having to cut out a sample.

- Shipbuilding: An inspector can easily move around a shipyard, using the tester to check the hardness of large, curved hull plates after forming to ensure the steel’s integrity hasn't been compromised.

- Manufacturing: Instead of creating a logistical bottleneck moving a multi-ton steel die block to the lab, an operator can use our QualiMag-RB to confirm its heat treatment on the workshop floor before hundreds of hours are spent on machining.

- Power Generation: Maintenance crews in a power plant can assess the hardness of large turbine casings or generator components during a shutdown, gathering critical data for lifetime assessment without complex disassembly.

- Welding Inspection: A certified welding inspector can quickly assess the hardness across a weld and the heat-affected zone. This confirms there are no brittle spots that could become a failure point under stress, a vital check for structural steel.

Practical Hardness Testing from Qualitest

At Qualitest, we do more than just supply equipment; we provide practical solutions. We get that our clients are under significant pressure to guarantee quality, often in challenging field environments.

That’s why we confidently stand behind our range of cost-effective magnetic hardness testers. Our QualiMag series, as an example, offers instruments that cover Rockwell, Brinell, or both in a format that is designed for ease of use.

Whether you require a digital model with automatic functions like the QualiMag-Auto-R, or a versatile analog instrument like the QualiMag-RB, we have a solution that will fit your operational needs and budget. We're proud to offer testers that provide lab-level precision in a portable format, helping you avoid delays and uphold your quality standards anywhere.

If you are looking for a more effective way to handle your hardness testing requirements, we invite you to explore the options on our website. Contact us today to discuss your specific application and get all your questions about what is magnetic hardness tester answered.
