Thermal Vacuum (TVAC) Test Chambers and Space Simulation Systems

Thermal Vacuum (TVAC) test chambers recreate high-vacuum and extreme temperature environments to verify space hardware under simulated orbital conditions. QualiTVAC™ systems deliver consistent pump-down performance, stable thermal boundaries, and precisely controlled thermal cycling for applications ranging from individual components to complete satellites. Aerospace organizations rely on TVAC testing to identify temperature-related drift, thermal interface issues, and vacuum-sensitive failure mechanisms before launch. These systems also support thermal balance testing where repeatability, clean vacuum conditions, and accurate thermal control are essential. The QualiTVAC™ portfolio provides solutions for a wide range of chamber sizes and testing requirements.

General Overview of TVAC Testing

Thermal Vacuum (TVAC) testing reproduces two primary characteristics of the space environment: ultra-low pressure and controlled thermal loading. Inside the vacuum chamber, convective heat transfer is nearly eliminated, allowing radiation and conduction to become the dominant heat transfer mechanisms. Cold plates, thermal shrouds, and heat sinks establish controlled thermal boundaries for thermal cycling and thermal balance evaluations. Stable vacuum levels and clean operating conditions contribute to reliable long-duration testing. Many aerospace programs also require extensive instrumentation, organized cable routing, and repeatable fixture configurations to achieve consistent test results.

QualiTVAC™ Product Line

The QualiTVAC™ series supports component verification, subsystem qualification, and complete satellite validation. Every system combines a high-performance vacuum chamber with advanced thermal control hardware to create precisely controlled environmental conditions around the test article. Selection typically depends on chamber dimensions, vacuum performance, thermal operating range, temperature uniformity, ramp rate, and instrumentation requirements. Larger platforms also provide expanded control channels, heat flux simulation, and contamination management for demanding aerospace programs.

QualiTVAC™ 800

A compact Thermal Vacuum (TVAC) chamber designed for unit-level verification and routine thermal cycling under vacuum. It is well suited for electronic assemblies, control modules, sensors, and other compact aerospace hardware where repeatable testing and efficient setup are priorities.

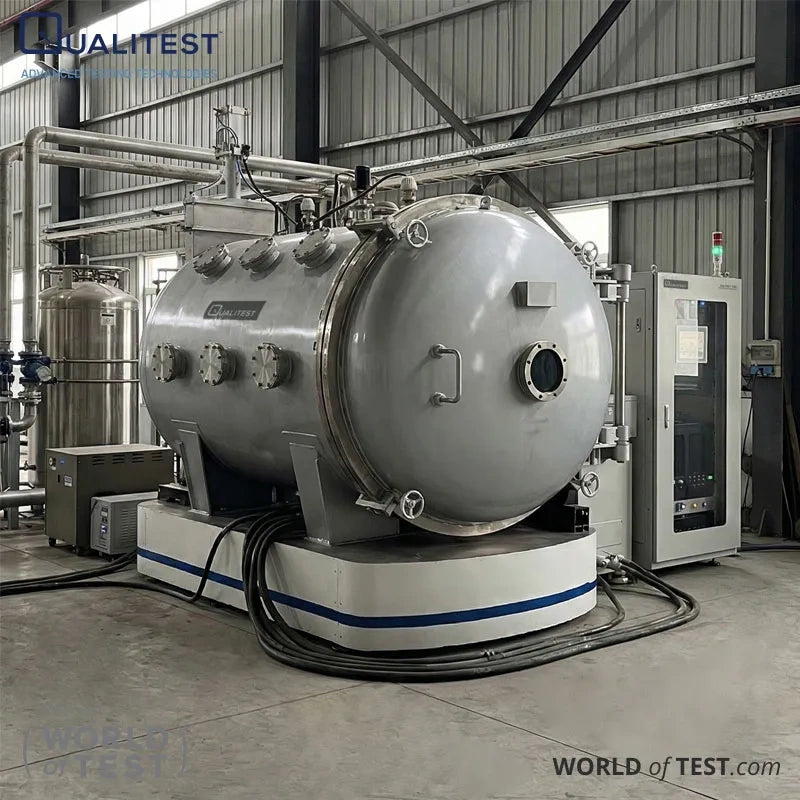

QualiTVAC™ 1000

A unit-level TVAC testing platform featuring a practical cold plate configuration for conduction-based thermal testing. It supports qualification, acceptance, engineering investigations, and verification programs where pressure stability and temperature consistency are critical.

QualiTVAC™ 1200 Series

A component-scale Thermal Vacuum chamber developed for satellite subsystems, payload assemblies, and scientific instruments. The series delivers repeatable thermal cycling and thermal balance testing with dependable thermal interface performance across multiple hardware configurations.

QualiTVAC™ 1500 Series

A larger TVAC chamber that accommodates larger assemblies requiring additional space for fixtures, instrumentation, and cable management. It supports qualification testing, acceptance verification, and validation following engineering modifications or manufacturing updates.

QualiTVAC™ 2400

A large-format Thermal Vacuum chamber intended for substantial aerospace hardware. Integrated heat sink and heater cage systems support thermal cycling and cold-black simulation while maintaining controlled pump-down sequences, stable operating conditions, and documented vacuum performance.

QualiTVAC™ 3600

A full-satellite Thermal Vacuum platform developed for thermal balance studies and complete spacecraft validation before launch. The system supports external heat flux simulation, contamination management, deep cold thermal boundaries, and high-channel-count data acquisition for advanced aerospace programs.

TVAC Solutions for Electric Propulsion and Micro-Force Measurement

Many aerospace development programs combine Thermal Vacuum testing with electric propulsion evaluation and precision thrust measurement. These specialized systems support thruster ignition, endurance testing, and micro-thrust characterization under controlled vacuum environments. They complement TVAC chambers by extending verification capabilities across propulsion performance, system stability, and engineering validation. These platforms are ideal where accurate background pressure control and low-noise measurement are essential for reliable results.

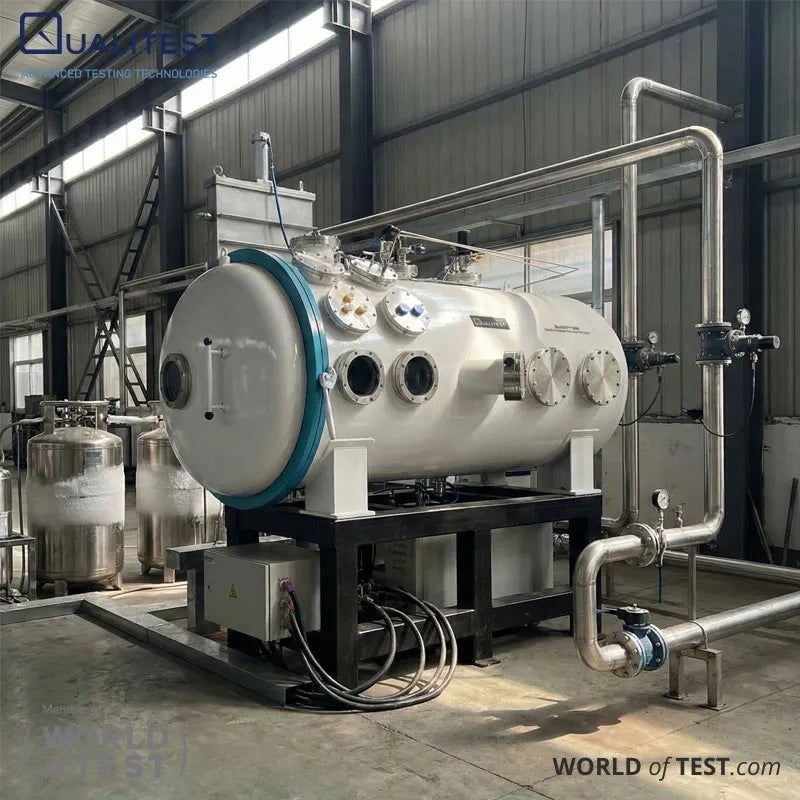

QualiEPP™ 1000

A dedicated electric propulsion performance testing platform for Hall thruster evaluation under controlled background pressure during propellant flow. It supports propulsion performance mapping and stability assessment where chamber pressure directly influences measurement accuracy.

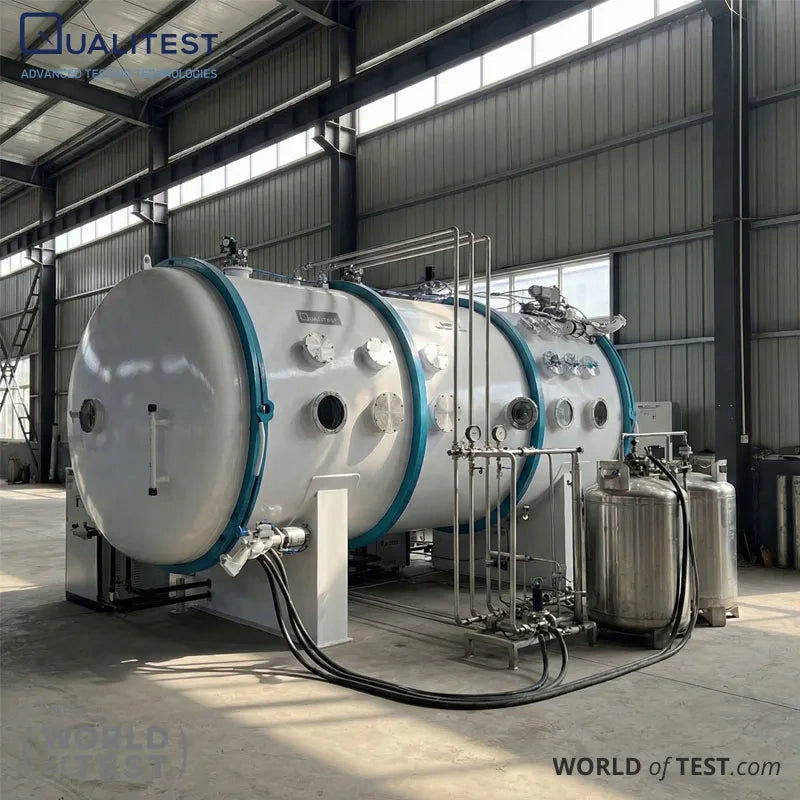

QualiEPP™ 2000

A higher-capacity electric propulsion testing system designed for increased propellant flow rates and expanded diagnostic capability. It supports long-duration performance evaluation and comparative testing across multiple Hall thruster configurations.

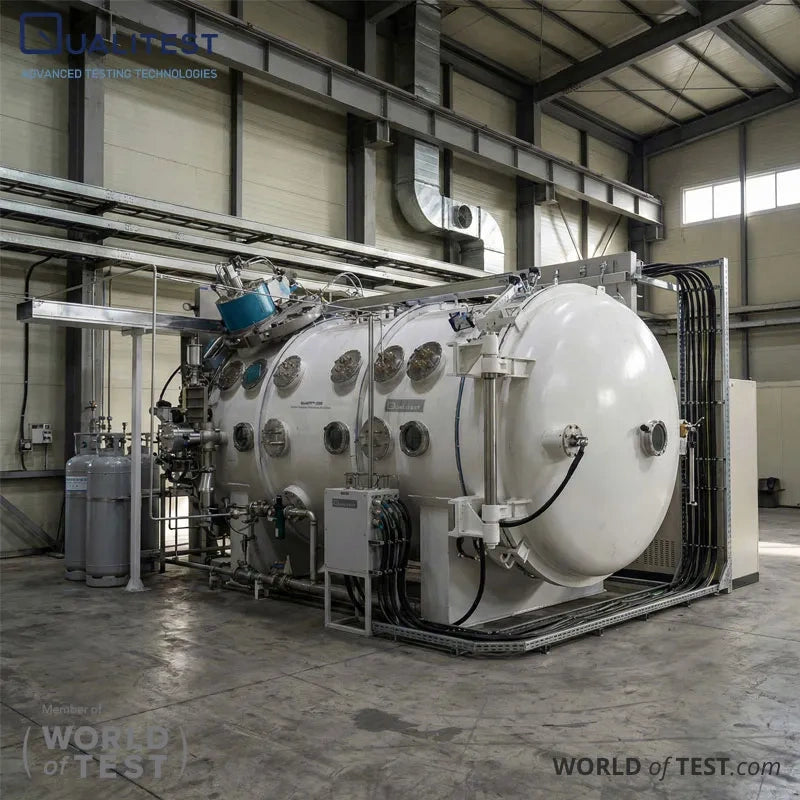

QualiEPP™ 2200 Series

A modular electric propulsion performance platform for ignition verification and lifetime testing of small- to medium-power Hall thrusters. Optional axial and lateral chamber modules provide flexibility for calibration, subsystem verification, and customized test configurations.

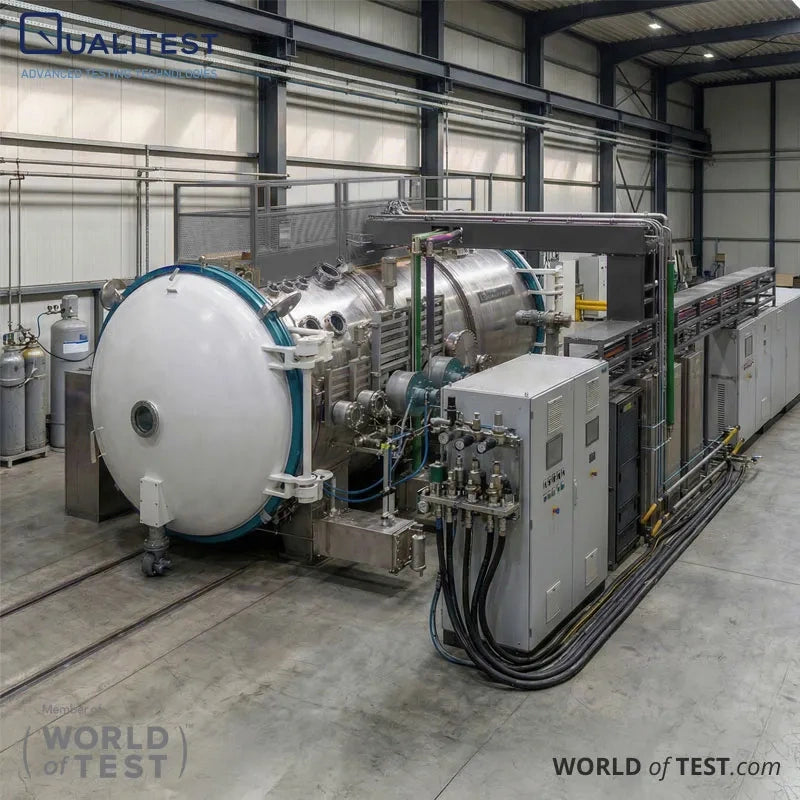

QualiEP™ 3000 G

A dedicated ground ignition system designed for repeatable Hall thruster ignition testing under controlled vacuum and thermal conditions. It supports both complete system verification and subsystem ignition validation before endurance testing.

QualiAMS™ 2500

A precision micro-force and actuator measurement platform that combines vacuum simulation, vibration isolation, and highly accurate thrust measurement. It supports micro-thrust characterization, analytical model validation, and low-noise force measurement for advanced aerospace hardware.

Why Choose QualiTVAC™ Systems

QualiTVAC™ systems are designed to deliver consistent vacuum performance, repeatable thermal control, and dependable testing conditions throughout every evaluation cycle. Stable pump-down characteristics, controlled thermal boundaries, and uniform temperature distribution contribute to reliable and repeatable test data. Chamber configurations accommodate practical fixture layouts, instrumentation routing, and complex test hardware. The product family scales from compact component testing to complete satellite thermal balance programs while maintaining a consistent testing methodology across research, qualification, acceptance, and engineering investigations.

Selecting the Right TVAC System

Choose a chamber that accommodates the complete test article together with fixtures, instrumentation, and cable routing. Review operating and ultimate vacuum requirements based on hardware sensitivity, contamination concerns, and outgassing characteristics. Match the thermal operating range, temperature uniformity, and ramp rate to the intended thermal profile. Heat flux simulation and contamination management become increasingly important for optical payloads and highly sensitive spacecraft components. Larger aerospace programs may also require expanded control channels and advanced data acquisition capabilities to support complex testing.

Typical Thermal Vacuum Testing Workflow

Thermal Vacuum testing generally begins with fixture preparation, sensor installation, instrumentation verification, and cable routing. Vacuum pump-down and stabilization are completed before thermal cycling starts. Thermal balance testing verifies boundary conditions and heat transfer characteristics for the configured hardware. Extended temperature holds provide valuable data on long-term stability, thermal drift, and vacuum-related performance. Following completion of the test sequence, engineers perform detailed inspections and comprehensive data analysis to support qualification, acceptance, or design improvement decisions.
