You need to know how your product's finish will perform in the real world, which is a harsh sequence of humidity, dryness, rain, and heat, not a gentle mist.
Cyclic corrosion tests (CCT) are widely used to simulate these conditions by subjecting materials to repeated cycles of salt fog, wetting, and drying, which better replicate outdoor environments compared to traditional salt spray tests.
At Qualitest, we operate on the principle that accurate testing leads to dependable products.
Key Takeaways
- Realism Over Tradition: Standard salt spray tests often fail to predict outdoor lifespan because they lack the wet and dry cycles found in nature.
- Dynamic Environments: The cyclic corrosion test method delivers superior data by rotating samples through aggressive changes in humidity, temperature, and salt fog.
- Precision is Non-Negotiable: Valid results depend on strict adherence to standards like SAE J2334 and using programmable controllers to automate complex transitions.
- Data Verification: A valid test report must show a "sawtooth" graph pattern with sharp transitions, proving the chamber met the required ramp rates.
- Equipment Matters: Avoiding common pitfalls like drifting pH or slow heating requires reliable environmental chambers designed for rapid cycling.
The Traditional Method vs. The Realistic Method

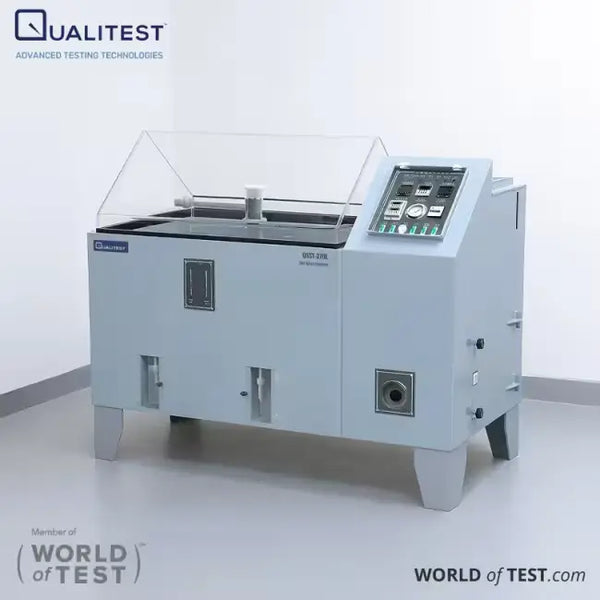

We see many labs stick with a standard Salt Spray Chamber - Salt Spray Tester - Fog Cabinet, and it certainly has its place for process control and basic quality checks. But we think it’s time for a clearer perspective. A continuous salt fog test does not replicate the wet-and-dry cycles that cause materials to fail in the field.
The modern cyclic corrosion test method, executed on advanced units like our QCCT Programmable Cyclic Corrosion Test Chamber, is a far better simulation as it subjects a product to a sequence of environmental shifts. It is how you uncover potential failures before they become customer problems.
| Key Aspect | Traditional Salt Spray | Cyclic Corrosion Testing (CCT) |
|---|---|---|
| Environmental Conditions | Static (Continuous Salt Fog) | Dynamic (Cycles of Fog, Dry-Off, Humidity) |
| Correlation to Service Life | Low to Moderate | High |
| Corrosion Mechanism | Constant Wetness | Wet/Dry Cycling Accelerates True Corrosion |
| Primary Application | Production Quality Control | Durability Validation, Service Life Prediction |
Selecting the Right Cyclic Corrosion Test Standard
Before any test, you must select the correct cyclic corrosion test standard for your industry. In our view, these documents can be dense, but choosing the right one is absolutely essential for generating results that are both meaningful and repeatable.
You will likely encounter one of these major standards:
ASTM G85
An updated version of the classic salt spray test, with different annexes for specific cyclic conditions. This is frequently the go-to for testing architectural signage or heat exchangers exposed to industrial zones.
SAE J2334
The automotive industry considers this the benchmark. This cyclic corrosion test standard has an excellent correlation with vehicle field tests and is standard practice for validating critical safety components like brake lines.
ISO 11997
A key international standard for assessing resistance to cyclic corrosion, often utilized to test vehicle paints and varnishes against chipping and undercutting.
VDA 233-102
An especially rigorous cycle used by German automotive manufacturers. You will often see this specified for galvanized steel body panels that need to survive European winters.
Cyclic Corrosion Test Examples in Application
To appreciate how these standards apply in the real world, consider these cyclic corrosion test examples:
- Automotive Finishes: A coated door handle is run through SAE J2334 to confirm its finish won't show cosmetic corrosion after a few years of road salt and weather exposure.
- EV Battery Enclosures: Critical for safety, these casings are tested to ensure their seals remain intact and that corrosion won't compromise the unit's integrity.
- Aerospace Fasteners: Structural bolts are subjected to ASTM G85 to ensure they resist failure when exposed to industrial pollutants or marine air.
- Consumer Electronics: Wearable devices like fitness trackers or smartwatches are cycled to simulate the corrosive effects of sweat and coastal humidity, ensuring charging ports and casings don't degrade.
- Infrastructure & Utilities: Highway guardrails and bridge cables are tested against aggressive wet/dry cycles to predict how many decades they can withstand road de-icing salts before structural integrity is lost.
- Marine Hardware: Deck fittings are tested to see if they are susceptible to pitting, a localized corrosion that happens when saltwater evaporates and leaves behind highly corrosive chloride deposits.
- Architectural Coatings: The finish on an aluminum window frame is tested to ensure it resists blistering or filiform corrosion after years of exposure to sun and rain.
The Cyclic Corrosion Test Procedure: A Step-by-Step Guide
Executing a CCT is not just about pressing "Start." It requires precision at every stage. We see the cyclic corrosion test procedure as a strict recipe where changing one ingredient can ruin the result.
The procedure typically involves exposing test specimens to controlled cycles of corrosive environments, such as salt mist at specific temperatures followed by drying phases, over a set duration (e.g., 6 weeks) to evaluate corrosion resistance and mechanisms like galvanic corrosion.
1. Sample Preparation: The Foundation
You cannot get good data from a dirty sample. Specimens must be thoroughly degreased and cleaned.
For coated panels, we believe the "scribe" (the scratch) is the most critical detail. It must be cut through the coating to the substrate to create a consistent geometry.
If the scribe is off, your measurements of "corrosion creep" later in the cyclic corrosion test procedure will be meaningless.
2. Programming the Test Cycle: The Brains
This is where the success happens, or where the test falls apart. You must input the specific cycle profile into the chamber's controller by programming complex sequences.
This might be 2 hours of acidic salt fog, followed by a rapid ramp-up to 60°C for dry-off, then a plunge into 95% humidity.
We believe an intuitive programmable controller—like the one found on our QPSST Programmable Salt Spray Test Chamber and the more advanced QCCT models—is non-negotiable for a repeatable cyclic corrosion test method.
These interfaces allow you to automate these transitions without constant manual supervision.
3. Electrolyte Solution Setup: The Chemistry
The salt solution is your "weather" and must be mixed with precision.
You must use high-purity water and pharmaceutical-grade salt. Furthermore, depending on the cyclic corrosion test standard, you might need to adjust the pH.
We recommend checking the pH of the collected fallout, not just the reservoir, to ensure the solution hitting the sample is actually what you intended.
4. Execution and Monitoring: The Watch
Once the chamber starts, it runs automatically, but that does not mean you can ignore it. Fluid levels need topping up and atomizers must be checked.
If a heater fails and the "dry" cycle does not reach the specified temperature, the entire test is invalid.
5. Evaluation: The Verdict
After hundreds or thousands of hours, the samples are removed for careful analysis.
Advanced cyclic electrochemical tests may also incorporate measurements of solution pH and impedance to provide detailed corrosion behavior and coating performance over repeated cycles. This quantitative data tells you if your product is ready for the real world.
3 Common Pitfalls to Avoid in Testing
Even with excellent equipment, certain errors can invalidate your results. When running your cyclic corrosion test method, be aware of these issues:
1. Ignoring Ramp Rates
The speed of transition between "Wet" and "Dry" phases is critical. Consider a scenario where a radiator is tested with a sluggish ramp rate.
The metal stays wet too long, causing a completely different type of rust than what occurs in reality, which renders the data useless.
2. Improper Sample Loading
Overcrowding the chamber can obstruct the uniform flow of air and fog.
A common error involves stacking flat panels so closely that the salt fog cannot penetrate the center gaps. This leads to a "false pass" where the inner samples look pristine simply because they were not touched.
3. Drifting pH Levels
In systems that recirculate the solution, the pH can shift over time.
If the solution becomes too acidic without correction, it might strip a coating away far faster than the standard intends, causing an unfair failure.
How to Read a Cyclic Corrosion Graph for Accurate Data
Your chamber's data log is the ultimate record of the test's integrity. For us, a clean graph is confirmation of a valid test because it is the only way to prove you actually ran the specific profile requested.
Learning how to read a cyclic corrosion graph is not just about glancing at lines; it is about verifying the physics of the chamber and the reaction of the material.
1. Verifying Chamber Performance (The Environment Graph)
A typical environmental graph plots Time on the X-axis against Temperature and Relative Humidity (RH) on the Y-axes.
- The "Sawtooth" Pattern: In a cyclic test, you should see aggressive, jagged lines. If the standard calls for a shift from 98% humidity to 30% humidity, the line on the graph should drop steeply.
- Slope Steepness (Ramp Rate): The angle of the line tells the story of your chamber's power. A steep, near-vertical line during a heating phase confirms the heaters are robust enough to meet the standard's ramp rate.
- Tolerance Bands: Most standards allow a small margin (e.g., ±2°C). Understanding how to read a cyclic corrosion graph means checking that the recorded line never wanders outside these strict tolerance bands.
2. Verifying Material Response (The Electrochemical Graph)
For advanced analysis, reading a cyclic corrosion test graph involves analyzing parameters such as corrosion potential, current density, and polarization behavior over time or cycles, often using cyclic potentiodynamic polarization curves that show how metals respond to applied potentials, indicating susceptibility to localized corrosion like pitting.
Key features in these graphs include the forward and reverse scan curves, hysteresis loops, and points of scan reversal, which help interpret corrosion rates, repassivation ability, and metastable pit formation.
Overall, understanding the cyclic corrosion test procedure and graph interpretation is essential for assessing material durability and optimizing corrosion protection strategies in practical applications.
Accurate Corrosion Testing Starts with Qualitest
At Qualitest, we believe the right testing equipment is a direct investment in your brand's reputation. The accuracy of your results begins and ends with the quality of your environmental chamber.
We offer a full range of cost-effective environmental chambers, from the entry-level Salt Spray Chamber - Salt Spray Tester - Fog Cabinet to the highly advanced QCCT Programmable Cyclic Corrosion Test Chamber.
All are equipped with user-friendly programmable controllers and the power for rapid environmental transitions, providing the confidence you need to meet the most demanding requirements.
Ready to move beyond guesswork and improve your product durability testing? Explore our complete line of Environmental Chambers here.
