What Is a Profilometer? Types, Uses, and How They Measure Surface Roughness

A profilometer is a precision instrument used to evaluate the fine details of a surface’s texture, what we often refer to as surface roughness. From microscopic grooves to subtle waviness, these small variations can impact everything from part durability to how well two surfaces seal together.

Whether you're inspecting machined engine parts or optical lenses, understanding and controlling surface quality is key. Profilometers help manufacturers, researchers, and engineers quantify those details accurately and repeatably.

Let’s explore what profilometers do, how they work, the types available, and how to choose one that fits your specific needs.

What Exactly Does a Profilometer Measure?

When you zoom in far enough, no surface is truly flat. Instead, it’s made up of tiny peaks and valleys that vary in height, spacing, and shape. A profilometer captures this microtopography and expresses it using industry-standard surface parameters such as:

- Ra – Average roughness across a measurement line

- Rz – Average peak-to-valley height

- Sa – Areal equivalent of Ra, used in 3D mapping

- Rt, Rp, Rv – Additional roughness metrics for depth and peak analysis

- Waviness and form – Larger-scale surface deviations over longer distances

These parameters aren’t just numbers, they tell you how a surface will perform. Will it create friction? Will it hold a coating properly? Can it seal against another surface? A profilometer gives you the data to make those judgments.

Types of Profilometers and How They Work

Profilometers fall into two broad categories: contact (stylus-based) and optical (non-contact). Both are capable of high-accuracy measurements, but they operate using very different principles.

1. Contact Profilometers (Stylus-Based)

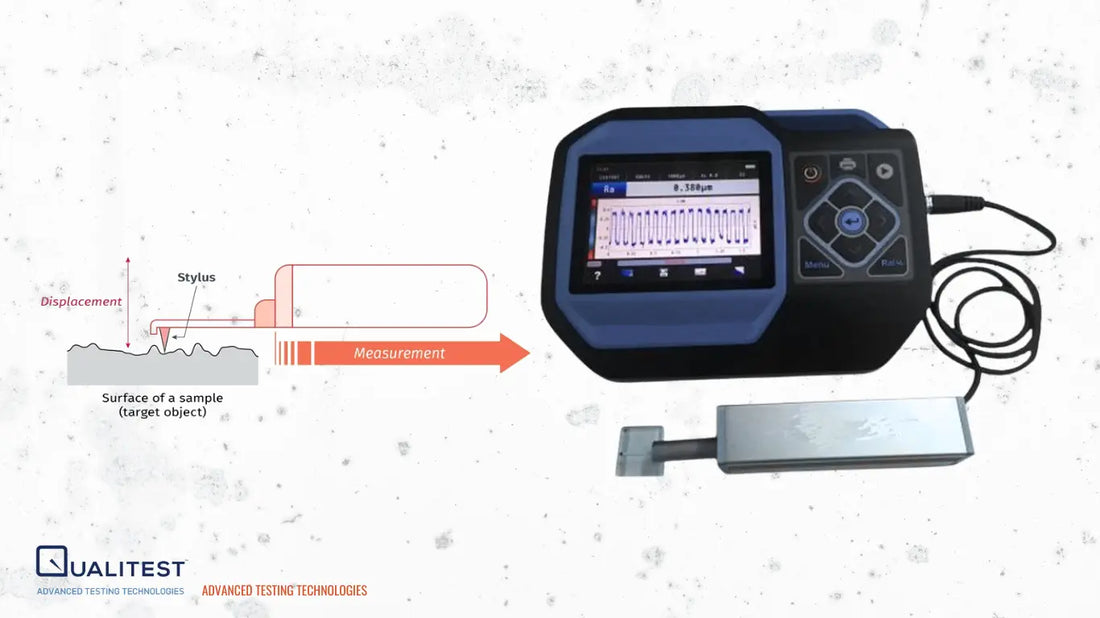

This type uses a fine diamond-tipped stylus that physically moves across the surface. As it follows the surface contour, the instrument records vertical movements to generate a 2D profile of the texture. It's a trusted method, especially for hard, machined materials.

Benefits:

- Excellent for metals, machined parts, and rough surfaces

- Less sensitive to lighting, dirt, or reflectivity

- Compliant with ISO and JIS surface roughness standards

Limitations:

- Physical contact may scratch soft or coated surfaces

- Slower measurement speed

- Stylus tips wear over time and need calibration

You’ll often find stylus profilometers in machine shops, production lines, and quality control labs—especially where Ra or Rz specs are critical.

2. Optical Profilometers (Non-Contact)

Optical profilometers use light—like lasers, white light, or confocal techniques—to scan the surface without touching it. These systems capture reflected or interfered light to reconstruct the topography in high detail, often in full 3D.

Benefits:

- High-speed measurement with millions of points per second

- Ideal for delicate, curved, or transparent surfaces

- Provides full 3D areal topography (not just a line trace)

Limitations:

- Sensitive to environmental factors like vibration, oil, or dirt

- May struggle with glossy or translucent surfaces

- Typically more expensive than contact models

These are often used in high-precision industries like semiconductors, optics, aerospace, and advanced coatings.

Comparison Table: Contact vs. Non-Contact Profilometers

Common Applications of Profilometers

Profilometers are widely used for both quality assurance and R&D across many industries:

1. Surface Quality Control in Manufacturing

You can use profilometers to ensure that surface finishes meet tight specifications. Whether it's texture, flatness, or roughness, consistent surface quality helps prevent defects and supports better process control—especially in high-volume production.

2. Semiconductor & Microelectronics

Profilometers are key to analyzing wafer surfaces, step heights, and thin film layers after etching or deposition. Accurate surface measurements help you maintain yield and performance as devices shrink in size and increase in complexity.

3. Optical Component Fabrication

In optics, even the smallest surface defect can ruin performance. Profilometers help you detect micro-scratches, coating inconsistencies, or subtle curvature issues on lenses, prisms, and laser optics.

4. Automotive & Aerospace Engineering

You’ll find profilometers indispensable for checking crankshafts, turbine blades, seals, and flat components. Measuring surface roughness ensures parts will operate smoothly and fit together without excess wear or friction.

5. Medical Devices & Biomaterials

For implants or surgical tools, surface texture affects both performance and biocompatibility. Profilometers help you verify that these components meet strict safety and functionality standards before they ever reach a patient.

6. Nanotechnology, MEMS, & Microfabrication

When dealing with structures at the micro or nano scale, precision is non-negotiable. Advanced profilometers let you analyze 3D profiles in MEMS devices, microfluidic channels, or ultra-thin films with nanometer accuracy.

7. Coatings, Paints, & Surface Treatments

Surface profiling is vital when you’re applying protective or decorative coatings. You can assess thickness, smoothness, and adhesion quality—ensuring durability and visual consistency across all treated parts.

8. Solar Energy & Photovoltaics

In solar cell production, you can use profilometers to evaluate textured surfaces that improve light trapping. Better surface control means more efficient energy conversion and longer-lasting cells.

9. R&D and Advanced Material Testing

In research settings, profilometers help you explore how surface structure affects performance. Whether you're testing new alloys, functional coatings, or engineered surfaces, accurate topography data is critical for innovation.

10. Forensic Engineering & Failure Analysis

Profilometers can reveal what went wrong. By examining failed parts for micro-cracks, wear patterns, or coating issues, you can trace back to the root cause and improve future designs or processes.

How to Select the Right Profilometer

Not all profilometers are created equal. Choosing the right one depends on your material, measurement goals, and work environment.

Here are key factors to consider:

- Surface type: Is it soft, curved, coated, or reflective?

- Measurement range: What vertical and horizontal resolution is required?

- Speed vs accuracy: Is fast throughput important, or is maximum resolution critical?

- 2D or 3D: Do you need a profile line or a full areal map?

- Standards compliance: Are you working with ISO 4287, JIS B0601, or ANSI requirements?

- Sampling environment: Will the measurement be taken in a lab, shop floor, or cleanroom?

For example, the QualiSurf III Plus offers both skid-less and skidded stylus modes, making it versatile for flat and curved surfaces alike. With its built-in touchscreen, software suite, and data export features, it’s ideal for both field inspections and lab-grade analysis.

Final Thoughts

A profilometer gives you the confidence to verify roughness, texture, and form, helping you maintain consistency and meet industry standards with precision.

If you need a tool that’s accurate, adaptable, and simple to use, check out the QualiSurf III Plus. It’s designed for both field and lab work, with advanced software, customizable sampling, and the ability to handle both curved and flat surfaces with ease.
